On our farm, tasks begin with web analysis and infrequently use odd items of “junk” we’ve acquired hanging round.
One winter’s tasks was a germination chamber.
A few of our seeds require gentle to germinate however most vegetable seeds don’t. They do want constant moisture although.
Many growers use a germination (or sweat) chamber to scale back:
- area that seedling trays take up earlier than the newborn crops emerge (once they all want gentle)
- frequency of watering (which additionally pertains to algae development)
Since we moved to this farm, we’ve began our transplants many various methods. Within the 1st few years, we made some type of germination chamber that all the time appeared a bit completely different. In our 1st yr, we stacked bread trays by our wooden range and wrapped the stack with plastic to maintain humidity in.
As soon as seedlings emerged, over time, we’ve moved them to sizzling beds, our solar porch, and now to electrically heated benches in tunnels.
A germination chamber is an enclosed space, the place the temperature and humidity will be regulated. There’s typically some type of tray stacking system the place it’s simple to see which trays have germinated and have the ability to simply insert and take away trays.
Some folks have used outdated chest freezers, however as our solely free chest freezer was just a little too small for our functions, we used an outdated wire rack and former venture leftovers. Farm Hack was a great on-line useful resource for serving to us design our germination chamber.
It began like this:
A 3 foot vast by 5 foot tall wire rack (sans cabinets) and a stainless-steel sink.
Ideally I might have taken this to somebody to weld a bit into the underside of the sink to seal it up (would possibly nonetheless do in some unspecified time in the future), however opted for the cheaper possibility of silicone and a sink stopper.
Fortuitously, the spacing of the helps for the cabinets labored with a lot of the trays that we use (the 50 cell Winstrips are our tallest trays).
For the shelving I used ½” EMT, (galvanized electrical conduit), after which made just a little notch with an angle grinder at each ends to suit over the wire helps. We are able to simply take away them so the shelf spacing will be greater for the Winstrip 50 cell trays, or so as to add greater than 3 bars per shelf (4 is healthier for the flimsier trays).
I made a decision to recess the sink and slope the edges due to feedback different builders had made about water pooling on the underside.
Copious tuck tape to make sure the water finds its means again to the sink and never by to the ground.
Initially, I used to be planning on utilizing the Durostat prewired thermostat, bought on-line from Farmtek/Growers Provide, however procrastinated just a little and wanted one sooner than what ordering one on-line would convey. Fortunately sufficient, our close by plumbing and electrical provide place, Eddy Group, carried this dandy cooling/heating thermostat that largely will get used for hen barn purposes. It ended up being about $20 cheaper (plus no transport prices), and fairly easy to wire up.

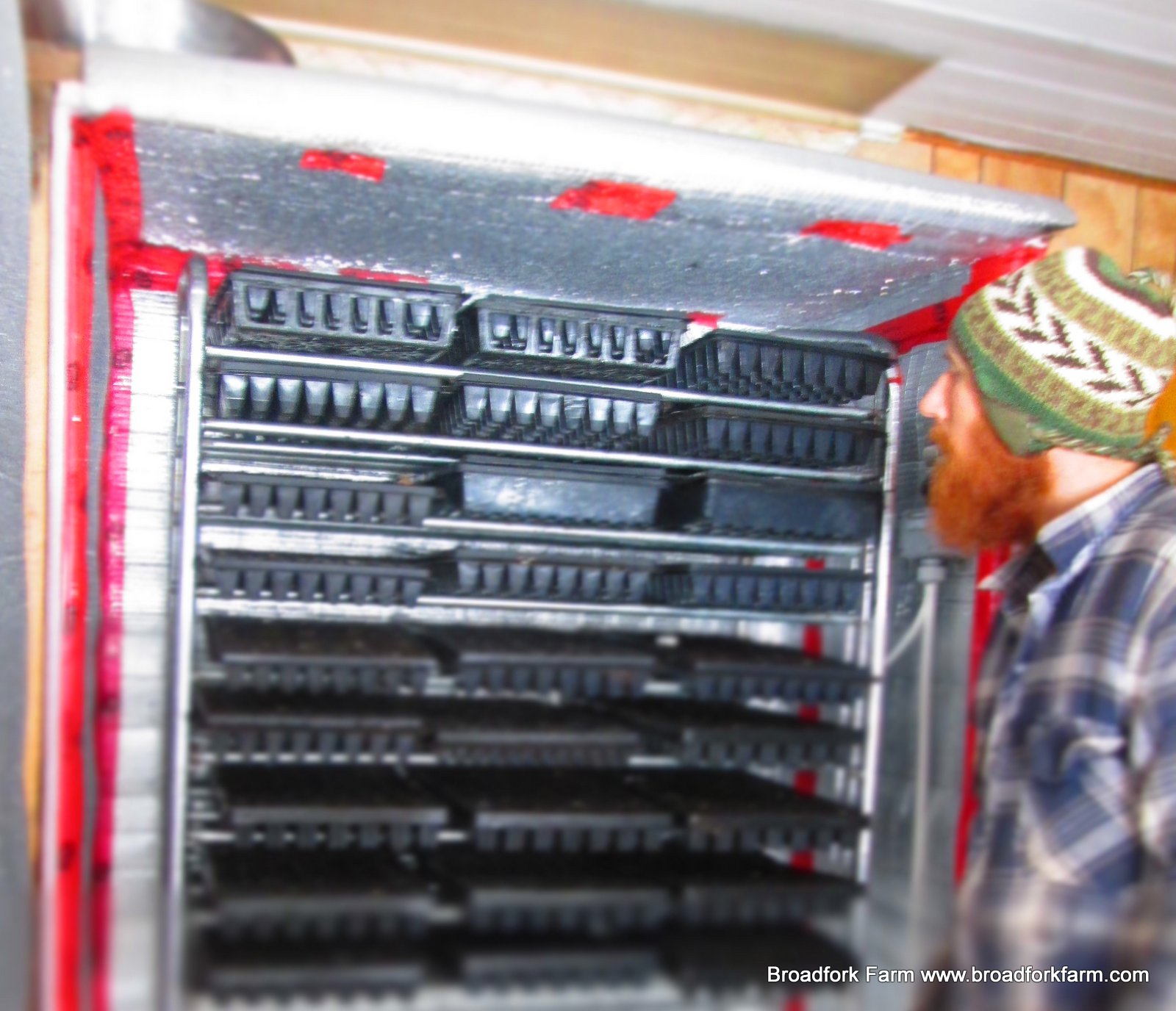

So right here is the beast.
Germination chambers are additionally referred to as sweat bins…for good purpose. It’s fairly moist in there, and there’s a variety of dripping.
My design wasn’t good. The water droplets on the door leaked out and onto the ground. A fast enchancment was to make use of some tuck tape to create just a little baffle so the drips go additional into the field the place they run into the sink.
We tried protecting the water pan with metallic sheeting to see if it could restrict the sweating impact whereas nonetheless radiating warmth into the field, however eliminated it as a result of it appeared it could use extra energy to warmth the field.
Though we don’t add water to the pan too typically, a water line and float valve could be good. You don’t wish to overlook to refill it.
It’s not professional-looking however it works fairly properly, saves area, and removes fear over trays drying out pre-germ.
Right here’s a re-cap in footage of how we constructed it:
