Health trackers should not briefly provide, so you should buy nearly no matter you need off the shelf. However there are many causes to take the longer path and construct your personal units as effectively. If nothing available on the market fairly matches your necessities, in case you are apprehensive about privateness, or in case you are simply serious about studying some new issues, DIY is the one technique to go.
For causes similar to these, engineer Milos Rasic of element14 Presents just lately got down to construct a customized coronary heart price monitor. And thankfully for the remainder of us, Rasic open sourced all of his work, so we will be taught from it, or use it as a base for our personal health trackers.
An outline of the design (📷: element14 Presents)
The objective was to create a chest-strap-style monitor that measures electrical coronary heart exercise through ECG, somewhat than optical PPG sensors present in most smartwatches. After an preliminary try to design a customized printed circuit board failed attributable to sign noise, Rasic pivoted to a modular strategy for this proof-of-concept construct. The processing unit for the monitor is a tiny Seeed Studio XIAO ESP32C3 microcontroller. This board additionally has a Bluetooth Low Power radio, permitting it to transmit information instantly to straightforward health apps like Strava.
To detect the center’s electrical indicators, Rasic employed the extensively out there AD8232 ECG module. The {hardware} stack was rounded out with a single lithium-ion battery cell, a swap, and a tiny enhance converter to step the voltage as much as the required 5V. These elements had been wired collectively and housed inside a customized 3D-printed enclosure designed to snap onto commonplace coronary heart monitor chest straps with electrode pads.

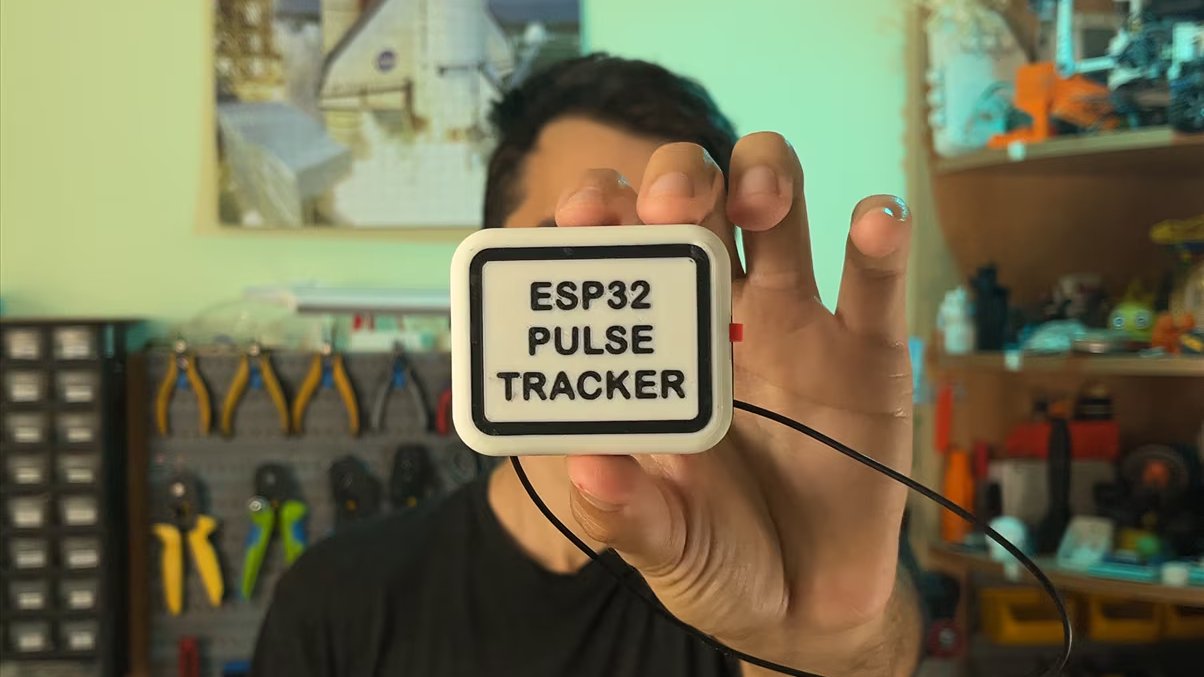

The {hardware} may be very easy (📷: element14 Presents)
{Hardware}, nonetheless, is just half the battle. Decoding noisy electrical indicators generated by a physique in movement requires sturdy software program. For that reason, Rasic carried out the traditional Pan-Tompkins algorithm, a way for detecting QRS complexes in ECG indicators that dates again to 1985. After prototyping the complicated arithmetic in Python, he efficiently ported the algorithm to C++ for the ESP32 board, aided by AI coding instruments to streamline the method.
Throughout a 5K check run, the system efficiently linked to Strava and offered coronary heart price readings, which had been paired with measurements from a smartwatch used as a management. There have been vital variations between the 2 units, suggesting that noise was being launched someplace alongside the way in which. Rasic is at present working to higher perceive the supply of this noise. There are already plans for a brand new model of the system, which can seemingly embrace onboard microSD information logging and a extra superior ECG chip to higher filter out noise.
In the event you’d somewhat monitor your coronary heart price with Wi-Fi, take a look at this DIY challenge.
