Do you assume you’ve bought some super-human expertise with a ping pong racket? You could have dominated the lunchtime matches at work, or the weekend tournaments together with your buddies, however you’d haven’t any probability towards MIT’s robotic desk tennis champ that may chop like a Ginsu knife recent off the sharpening stone. This robotic participant makes use of laptop imaginative and prescient to investigate and reply to your greatest pictures with a crushing return.
This high-speed desk tennis bot is a mix of light-weight, high-power mechanics and superior management algorithms, designed to imitate and rival human athleticism on the ping pong desk. Fastened at one finish of a regulation-sized desk is a five-degree-of-freedom robotic arm wielding a regular paddle. This robotic arm reacts to incoming pictures in milliseconds, analyzing trajectory and spin with the assistance of high-speed cameras and a customized predictive management system.
Three computer systems energy the system — one processes visible inputs from a digicam, one other predicts the ball’s trajectory, and the third calculates the optimum paddle swing. All talk through high-speed networking protocols to ship a lightning-fast response time of simply 7.5 to 16 milliseconds from ball detection to paddle strike.
This new robotic arm, weighing simply 3 kg, is able to acceleration between 180 and 300 m/s², because of torque-dense actuators and a minimal inertia design. This enables exact management of paddle place and angle, essential for high-speed, spin-sensitive play. A movement seize system with six cameras tracks the ball, which is wrapped in retro-reflective tape, with sub-millimeter accuracy at 120 frames per second.
The system was put to the check with 150 consecutive pictures, and it returned balls with a median success fee of almost 88% throughout three swing sorts: the topspin-heavy loop, the aggressive flat drive, and the defensive backspin chop. The robotic executes these strikes with a median strike velocity of 11 meters per second — quick sufficient to go toe-to-toe with intermediate human gamers. Newer tweaks have pushed that velocity to a powerful 19 m/s, creeping into elite human territory.
Whereas it at present returns balls solely inside a restricted space of the desk, the crew plans to mount the robotic on a wheeled platform or gantry system to increase its attain. Finally, the bot may function an elite-level coaching accomplice, able to simulating real-game circumstances with human-like unpredictability.

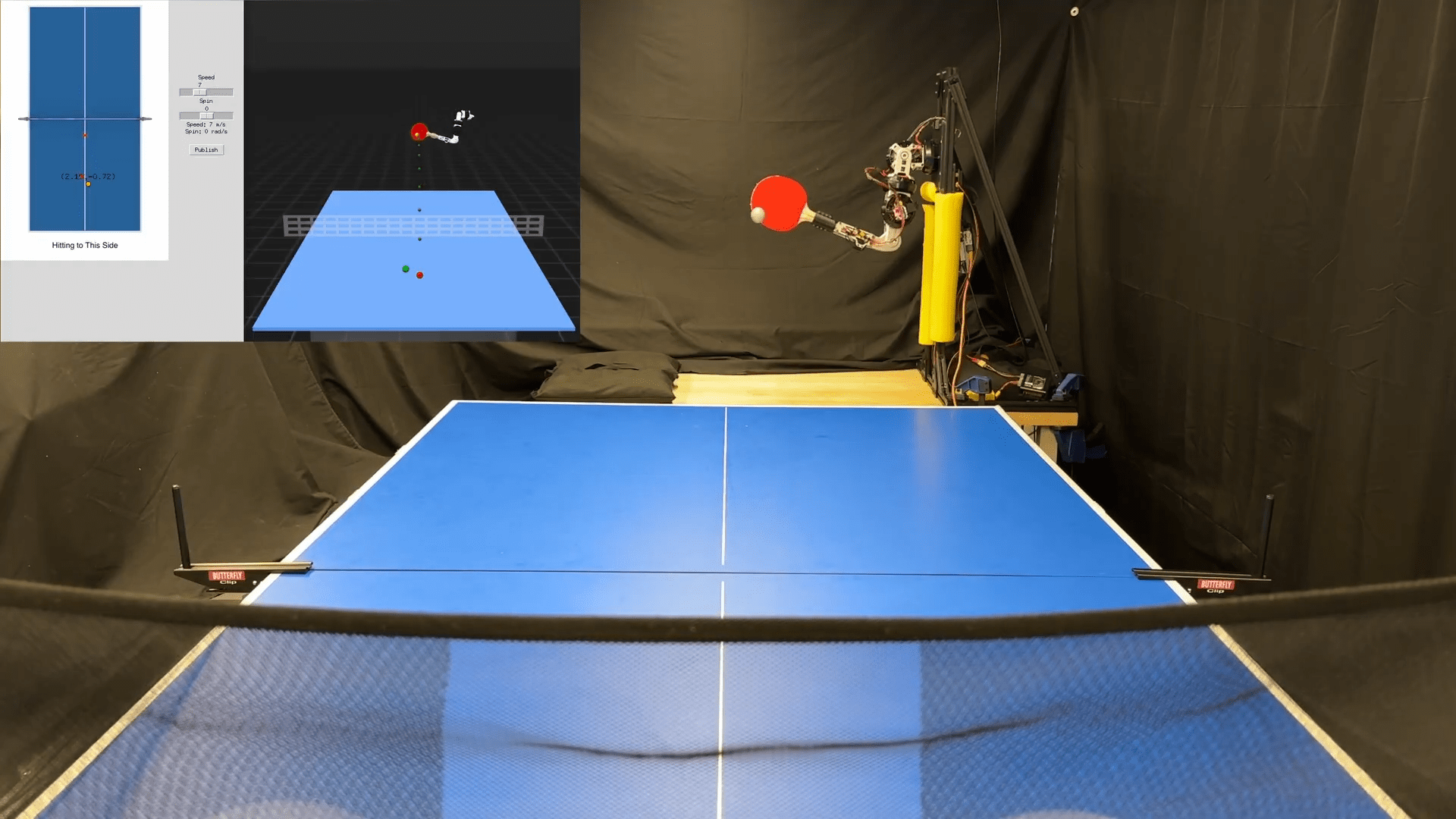

And past desk tennis, the underlying expertise might contribute to future search-and-rescue robots, which have to carry out quick, exact actions in unpredictable environments. For now, although, this robotic ace is serving discover to human rivals: the age of machine-powered ping pong dominance has arrived.This robotic performs ping pong like a champ (📷: David Nguyen)
A time-lapse picture of the robotic in motion (📷: D. Nguyen et al.)
