Technical and advertising groups engaged on web of issues (IoT) applications, ultimately, handle a venture that requires information move between a fleet of units and the cloud. This information is essential as a result of advertising needs to supply extra options to the customers, enterprise groups require information pushed selections, and technical groups work to optimize connectivity to an present gadget fleet. All these causes align round bettering the client expertise. This weblog submit discusses the preliminary phases of an IoT venture and among the choices which are out there to speak between the gadget and the cloud. It additionally supplies concrete steering about choosing the communication methodology primarily based in your necessities and venture constraints. This weblog submit presents communication alternate options for the IoT venture, from well-known options to much less customary approaches. It can assist you choose the suitable communication service(s) for the venture, and how you can keep away from some widespread errors that compromise value, scope, and length.
IoT gadget and gadget information
Earlier than I began engaged on IoT tasks, I had a device-centric view of IoT. The related gadget is the important thing IoT part that interacts with the true world by sensors and actuators. Nonetheless, it’s just one a part of the answer – one other half is the information. In some tasks, the gadget information is all you want. For many IoT tasks, the primary technical dialogue is usually targeted on how information will move between the gadget and the cloud, and which communication protocols are wanted. What communication protocols are wanted for the answer? As typical, it relies upon. By my expertise of engaged on completely different tasks, prototypes, and sectors, I’ve discovered that you simply don’t have to make use of just one protocol. Deciding on the suitable communication protocols for every venture generally is a discovery journey. The important thing to figuring out the protocol(s) is to interrupt the dialogue into the next 4 system constraints:
- Gadget: What are the bodily gadget constraints, corresponding to reminiscence, out there communication interfaces, computational capability, and energy consumption?
- Knowledge: What are the several types of information collected on the gadget? How a lot information is collected (quantity) for every sort of knowledge? Will the information move bidirectional or unidirectional?
- Price: What’s the information transmission value for every sort of knowledge? Is it price the fee to have the information within the cloud as quickly as potential?
- Safety: It’s not sufficient to ship information from and to the gadget. Communication must be managed by a safe methodology that helps authentication, authorization, validation, and privateness insurance policies. The safety capabilities should be thought of as foundational necessities throughout evaluation and when choosing the communication protocol.
Notice: Every communication protocol mentioned on this submit can implement completely different authentication mechanisms, corresponding to X.509 certificates, customized authorizers, and federation.
The MQTT protocol
MQTT is a typical messaging protocol for IoT tasks. MQTT is a bidirectional, light-weight, and scalable protocol. It’s additionally a high-level, utility layer protocol (just like HTTP, however with completely different traits) and extensively supported in lots of libraries and programming languages.

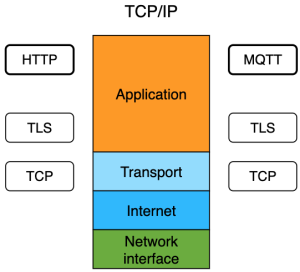

HTTP – MQTT protocols within the OSI mannequin
MQTT follows the publish-subscribe communication mannequin, the place the dealer coordinates the communication with the purchasers. A fundamental MQTT message accommodates two fundamental parts: the subject, which is the hierarchical identification of what the message accommodates, and the payload, which could be supplied in several codecs, together with JSON, binary, or textual content.
If the venture requires a communication channel to ship and obtain messages between the gadget and the cloud, MQTT is nicely suited. With MQTT, you may ship information or gadget standing to the cloud and obtain requests and messages from the cloud. Whereas sustaining a easy and versatile design, MQTT provides native performance that may simplify the software program utility. For instance, an ample matter stage construction design permits an environment friendly management of the messages {that a} gadget can publish or obtain. For extra data, see Designing MQTT Matters for AWS IoT Core.
The AWS IoT Core service helps MQTT, MQTT5, and MQTT over WebSocket protocols. AWS IoT Core additionally acts as a MQTT dealer and treats the units as purchasers. AWS IoT Core performance provides a variety of further key options and companies. For instance, it provides mechanisms to allow automate gadget provisioning and management static or dynamic teams of units (jobs) primarily based on their sort, properties, and tags. AWS IoT Core additionally helps transitioning from single gadget operations to organizing and managing a tool fleet.

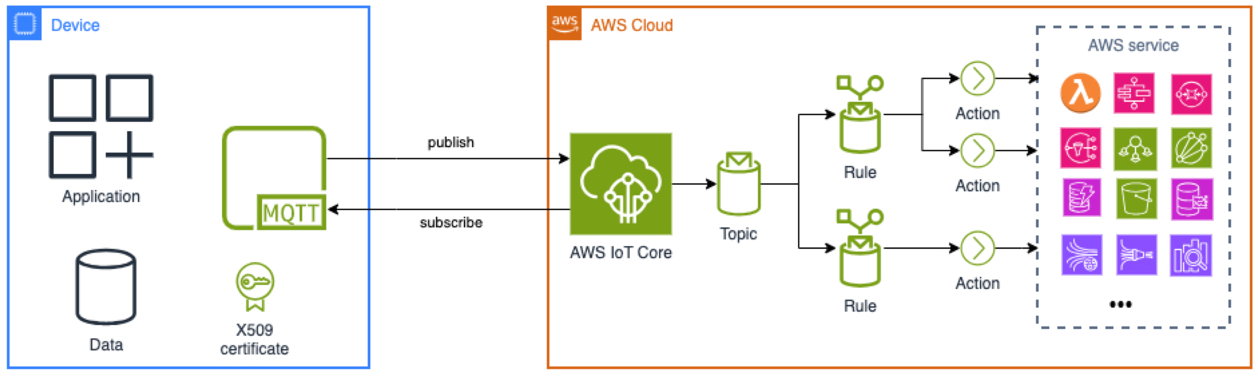

MQTT communication with AWS IoT Core
Knowledge streams and MQTT
MQTT messages from the gadget sometimes include gadget measurements, standing, occasions, management information, or configuration information. The protocol is versatile sufficient to incorporate one or a number of information payloads throughout the identical message. For instance, a message could embrace a single occasion. Alternately, the payload could also be a JSON object that accommodates heterogeneous gadget measurements and gadget standing at a particular time. There are different events the place stream-based communication could also be preferable to managing a number of messages. One widespread use case is expounded to information saved or cached regionally on the gadget’s non-volatile reminiscence. The gadget could ship this information at common intervals, or on-demand primarily based on a request. Streams are additionally generally used to ship excessive quantity of close to real-time information. For instance, sending uncooked measurement information throughout completely different units for processing and evaluation within the cloud.

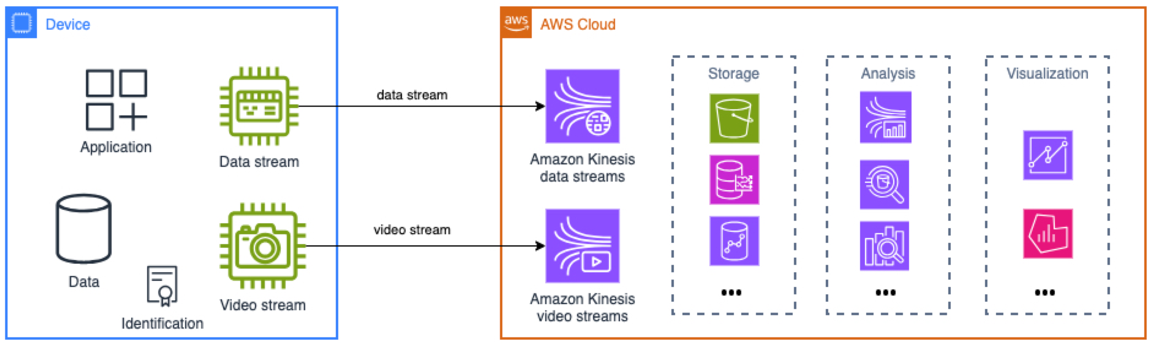

Knowledge or video streams
Amazon Kinesis companies help information or video stream ingestion, processing, and evaluation. A frequent use case is streaming information from the gadget to Amazon Kinesis Knowledge Streams. For extra data, see Finest practices for ingesting information from units utilizing AWS IoT Core and/or Amazon Kinesis. These two communication channels are sometimes used on the identical gadget to cowl completely different necessities to the communication with the cloud.
The message sending solely sample
Some tasks require a light-weight, one-direction communication layer from the gadget to the cloud. It isn’t at all times possible to ascertain bidirectional communication between the gadget and the cloud as a result of utility, gadget, or venture constraints. The communication layer may be carried out this manner as a result of the system was developed by a 3rd occasion and it will not be potential so as to add new performance.
Bi-directional communication is often used when the gadget sends standing updates or measurements, and the cloud responds with an acknowledgement. You should utilize completely different companies to help this one directional sample on IoT, corresponding to AWS IoT Core, Amazon API Gateway, or AWS AppSync. Since it is a publish-only protocol, the gadget should ballot for cloud information updates. This implies options like gadget disconnection detection require additional implementation work, in contrast to in different protocols the place these options are in-built.

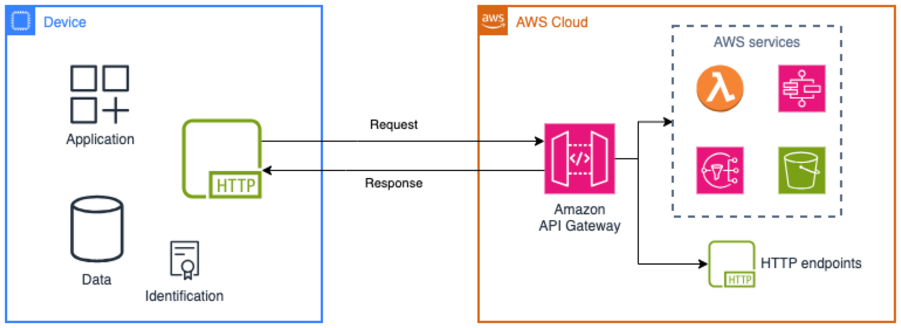

Request-only utilizing HTTP
When MQTT shouldn’t be a possible choice, it’s potential to make use of the HTTPS protocol and the message response could be leveraged to obtain information from the cloud. As soon as the information is in AWS, you need to use greater than 200 AWS managed companies to course of, analyze, and infuse intelligence to the information.
Receiving static information on the gadget
The gadget or the gadget fleet could have to learn static, or semi-static, information from the cloud. For instance, configuration settings or a software program replace. If the applying already implements MQTT protocol, MQTT shadows is an environment friendly course of to learn comparatively small static information, such because the configuration. For extra data, see AWS IoT Core message dealer and protocol limits and quotas.

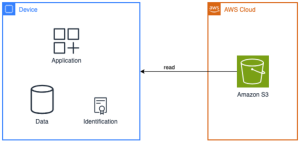

Studying from Amazon S3 bucket
For bigger recordsdata, which may embrace a model quantity or standing to point firmware updates, you may obtain the information immediately from Amazon Easy Storage Service (Amazon S3) .

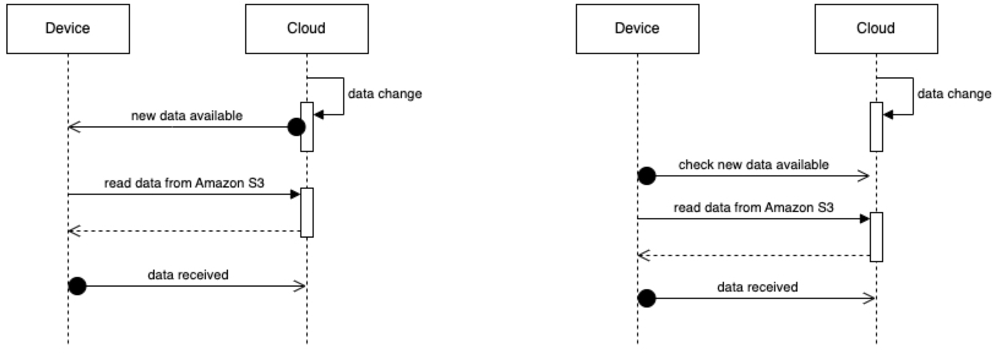

Actively receiving information from S3: bidirectional vs unidirectional protocols
IoT tasks with out units (a uncommon use case)
Working immediately on IoT units isn’t at all times possible. Regardless that your purpose could also be to construct an IoT cloud utility that manages a number of units, some constraints can render the state of affairs extra advanced. For instance, when:
- Present units within the subject can’t be up to date or updating them requires an excessive amount of improvement effort.
- The present gadget communication options shouldn’t be modified as present programs rely on them.
- Third-party units could also be concerned. This might embrace units with proprietary management programs, proprietary communication protocols, or closed programs that your staff can’t modify.
In case your purpose is to guage feasibility and an outline of the system, it’s best to develop an IoT cloud infrastructure and utility prototype. This may leverage present gadget telemetry information and management performance. You may think about two completely different methods for this method:
- Implement a cloud-to-cloud communication resolution.
- Develop a wrapper on the present units APIs.

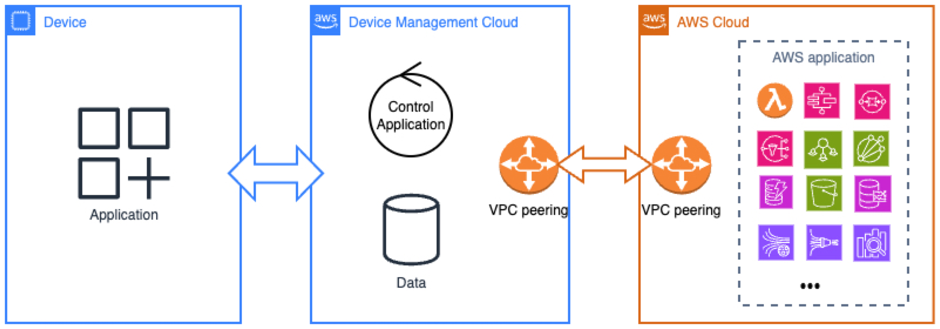

No gadget improvement: cloud to cloud communication.
Utilizing cloud-to-cloud communication has the good thing about isolating the present resolution on the brand new improvement. You can too use a unique utility protocol to switch gadget telemetry information and lets you management the information. You may leverage an Amazon Digital Non-public Cloud (Amazon VPC) to ascertain a digital community between present and new purposes. Utilizing this communication methodology could be very environment friendly. For instance, receiving measurements and states for a gaggle of units. The downside is that an Amazon VPC requires further effort to handle the units. If the units are third-party, it requires co-development effort, which generally is a blocker.

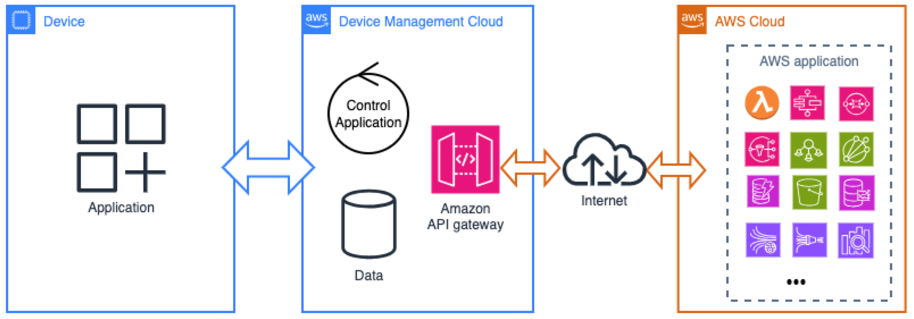

No gadget improvement: leverage present communications
A second choice is to develop a wrapper and leverage the already out there APIs from the exterior system by utilizing Amazon API Gateway. A typical use case is when speaking to a REST or WebSocket API. For third-party APIs, you may think about safety protections that restrict the variety of requests per second, minute, or day. These are some constraints to pay attention to as a result of it may well restrict your scalability.
Conclusion
One of many strengths of IoT is its communication, information storage, and its capability to make selections on the edge. One method to IoT tasks is to start out from the gadget, the factor, after which design primarily based on the gadget capabilities. On this weblog we explored a unique method that’s primarily based on a data-centric mannequin. Specializing in information first lets you design more cost effective options You can too get hold of this information utilizing completely different communication protocols and supply an answer that aligns to your venture aims and constraints.
