4K show? Bah! 60 frames per second? No thanks! Again in my day, we did not have any of that fancy expertise. Our screens had been manufactured from wooden, the pixels had been up to date one by one, and we appreciated it that method. We might collect across the heat glow of a CNC machine that was slowly spinning pixels and be thankful for the leisure. Children lately with their hundreds of thousands of pixels…
OK, you caught me. Shows with picket pixels clearly didn’t predate fashionable CRT or LED shows, however they do exist now! Software program engineer and {hardware} hacker Ben Holmen, for causes not totally recognized, had a burning need to construct a big, inefficient show. After experimenting with all the pieces from ping pong balls to styrofoam and golf balls, he settled on making a 40×25 grid of individually-addressable picket block pixels known as the Kilopixel.

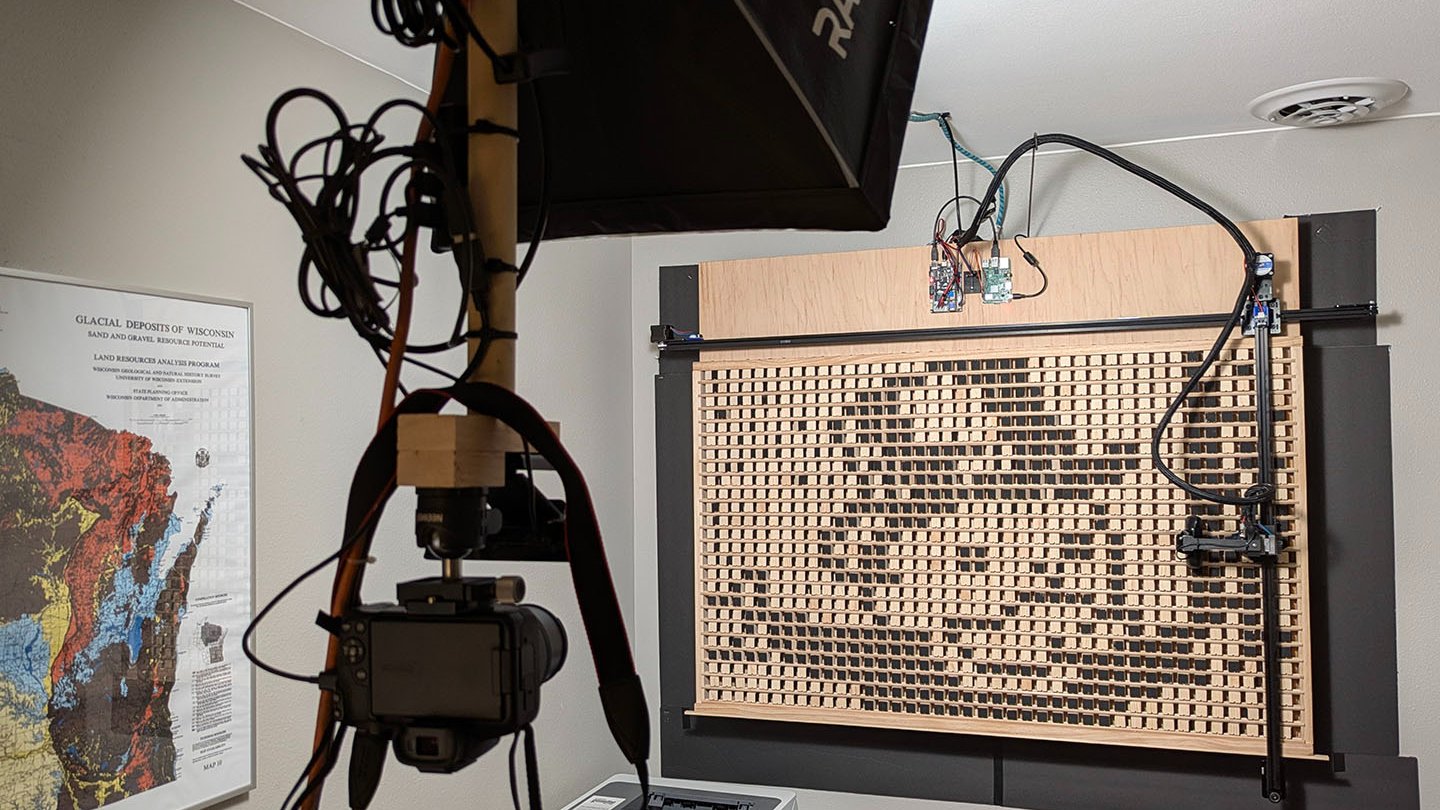

The {hardware} (📷: Ben Holmen)
The bizarre alternative of utilizing wooden for the pixels was made for just a few causes. On the one hand, shopping for 1,000 of something is fairly costly. Even the price of a 50 cent ball actually provides up whenever you want that many. Except for that, Holmen may be very comfy working with wooden. So although making 1,000 of something takes numerous effort and time, that gained out over ponying up for a pile of junk.
The show is made up of rotating blocks of wooden sitting on cabinets, with every block being painted black on two sides. A two-dimensional CNC machine strikes to the X and Y place of a block, then a “poking” mechanism pushes on it to rotate it 90 levels, flipping it from darkish to mild, and vice versa. A Raspberry Pi is wired into the CNC machine’s controller to make this occur.
Holmen wrote an API that generates the G-code mandatory to maneuver the CNC machine from one pixel to a different, and to set off the poking mechanism. A lightweight sensor tells the software program what the present state of a pixel is (mild or darkish), to keep away from having to set the show to a recognized preliminary state, or points the place the software program’s inner state illustration will get out of sync with actuality.
You’ll be able to submit your individual drawings for show (📷: Ben Holmen)
Many people have constructed some kind of elaborate, but not totally sensible, challenge earlier than, so we all know the way it goes — constructing it’s the enjoyable half. So after drawing just a few photos on the brand new show, it’s in all probability going to begin gathering mud. However not whether it is shared with buddies!
Holmen took care of that by constructing an internet app that enables anybody to submit an image to be displayed on the system. After it’s accepted, you may then watch the picture being produced on a livestream. I’m solely going to let you know this as soon as, as a result of I do know what instantly got here to your thoughts — preserve it stylish!
