Toss-launching drones is difficult — this computerized launcher does it higher

Sometimes, client drones take off from the bottom or another stable floor. However that isn’t very cinematic and toss launches — when the pilot throws the drone up into the air — are much more fascinating to observe. Sadly, NickFPV isn’t superb at tossing his drone and that invitations ridicule in his movies’ remark sections. To redeem himself, he constructed this computerized drone launcher triggered by an Arduino.

When growing the launching mechanism, NickFPV discovered inspiration in his kitchen. Or extra precisely, he discovered inspiration within the kitchens of cartoons, the place toasters rocket charred bread to comical altitudes. He figured that if it really works for toast, it might work for a micro drone. He simply wanted extra saved kinetic vitality.

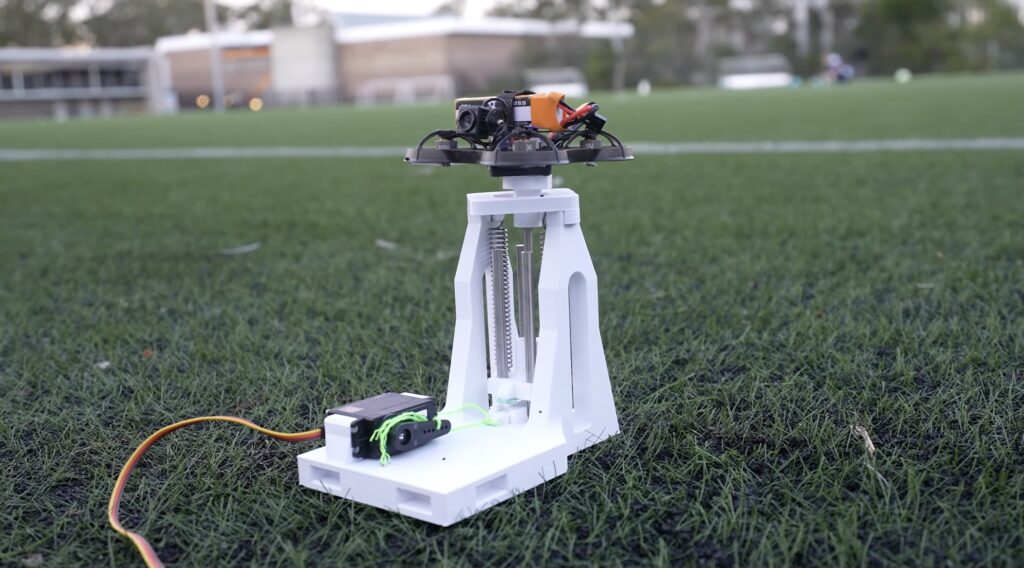

As with a toaster, NickFPV’s mechanism shops kinetic vitality in a spring. When launched, that spring pulls up a platform driving on hardened metal rods. The spring and rods connect to a 3D-printed body and a pin latch holds the platform in place till the launch. The drone sits on that platform and when the platform reaches the highest, it stops whereas the drone continues skyward.

NickFPV might have tugged a string to drag out that pin, however the launcher is fairly small and that pin requires some drive to drag. Doing that whereas standing safely a couple of ft away would inevitably drag the complete launcher. To resolve that drawback, NickFPV added an Arduino to set off the launch.

That’s an Arduino UNO R4 WiFi board and it controls a servo motor mounted on the launcher. On the press of a button, the servo yanks the string that pulls the latch pin. Energy comes from a transportable USB battery pack, so any location can turn out to be a launch pad.

The launcher proved to be successful and it throws the drone a very good six ft up, the place its motors can take over to realize flight. Now, NickFPV’s viewers gained’t see his poor throws.
