Working with small digital components? Titanium solder masks assist management solder, defend parts, and make soldering extra dependable.

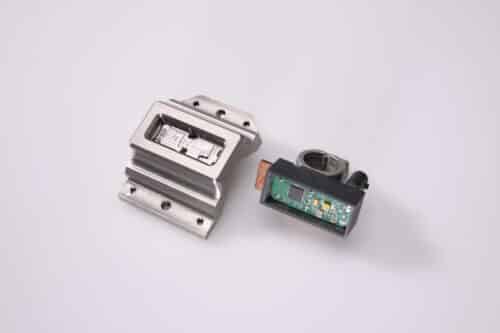

For engineers working with advanced assemblies, conventional composite supplies usually battle with intricate masking. When assemblies are mounted in housings and SMD parts sit near THT solder joints, partitions, separating bars, and connections must be extraordinarily skinny whereas staying steady over time. Baffles and strain chambers additionally want exact manufacturing, particularly as designs get smaller. To handle this, Eutect GmbH has developed titanium solder masks designed to enhance precision, course of stability, and price effectivity in selective soldering.
These titanium masks enable separator widths under 0.5 mm whereas providing excessive sturdiness, chemical resistance, and thermal stability below repeated course of cycles. Specifically handled surfaces repel solder and cut back warmth sinks, defending delicate parts whereas enhancing solder wetting and penetration. Three-dimensional designs assist compensate for part tolerances, enabling dependable soldering even in thin-walled constructions.
Buyer-specific designs can embody fixing and holding parts, catch geometries, and different options to make sure alignment between meeting, soldering course of, and automation. When used with customized solder nozzles and optimized course of parameters, the masks help steady mini-wave and selective soldering, leading to high-quality solder joints, diminished materials stress, improved reliability, and price effectivity.
Eutect manufactures these titanium masks for its personal programs in addition to for third-party customers. They mix supplies, design, and course of engineering to assist obtain exact, steady, and environment friendly selective soldering, making them a key instrument for contemporary manufacturing processes.
“Selective soldering of digital assemblies is changing into more and more difficult because of growing miniaturization, advanced geometries, and better necessities for course of reliability and sturdiness. To fulfill these challenges, we have now been counting on customer-specific solder masks developed in-house since 1996,” explains Matthias Fehrenbach, Managing Director of Eutect GmbH. Titanium solder masks exactly management the solder circulation on a printed circuit board, restrict the solder provide to particular areas, and defend delicate parts. “Our masks are created in our in-house technical middle, usually together with the event of the suitable solder nozzle, in order that finish prospects obtain an entire, optimally coordinated resolution for our programs in addition to for third-party programs,” Fehrenbach continues.
