Complications, jaw ache, TMJ, and tooth injury are issues that each one of us wish to keep away from, however for these with jaw clenching points (or bruxism), they are often common occurrences. However a {hardware} hacker named Andrea wish to make these issues a factor of the previous. The answer Andrea got here up with is a tool that trains customers to cease clenching their jaw, and since this downside most frequently happens at night time, it really works even when the consumer is sleeping.
To assist a variety of use circumstances, the system can detect jaw clenching, log these occurrences, and supply alerts when clenching occasions are detected. On this method, the detector can take a backseat strategy wherein it merely tracks occasions for the consumer to judge at a later time. However when a particular downside has been recognized, it could additionally take a extra proactive position. In that case, the system can set off alerts that get the consumer’s consideration — day or night time — to interrupt clenching and permit for habits modification.
A report generated by the system (📷: Andrea)
One other fascinating characteristic of the gadget is that the logged knowledge might be changed into experiences that correlate clenching with different occasions. That is made doable by tagging key occasions throughout the day. This might reveal, as an illustration, if explicit meals or actions are typically correlated with an uptick in clenching occasions.

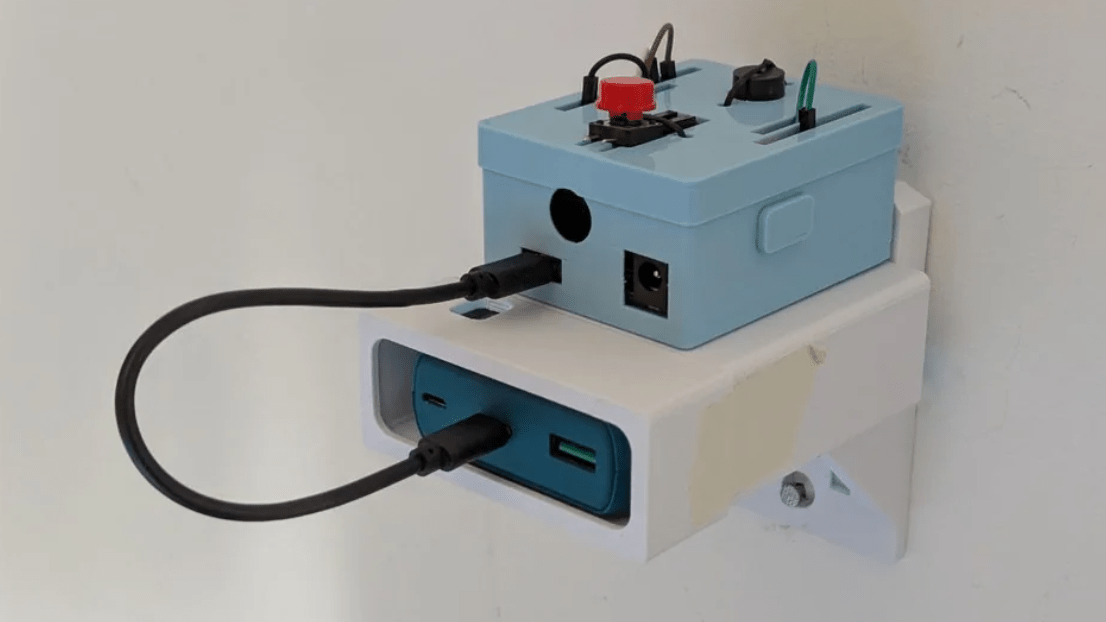

The gadget is constructed round an Arduino UNO R4 WiFi growth board and an Olimex SHIELD-EKG-EMG that measures muscle exercise within the jaw. This {hardware} is housed in a 3D-printed enclosure that may both be mounted on the wall for nighttime use, or clipped onto a belt for daytime use. A battery module retains it powered up on the go. The {hardware} design and software program are all open supply, so anybody could make their very own copy of the unit. It is usually reasonably priced, with the components coming in at round $120.
It won’t be the preferred possibility for cell use, nevertheless. Electromyography alerts are captured by way of a set of three electrodes which can be hooked up to the brow with a conductive gel. As such, this technique will not be common with the informal biohacker, however for somebody with main bruxism points, it might be an enormous assist.
The companion app helps to affiliate life occasions with clenching (📷: Andrea)
Knowledge from the sensors is analyzed with a machine studying algorithm (a Assist Vector Machine) to detect jaw clenching occasions. This info might be seen in a companion app constructed for Android telephones.
The system is just not fairly able to go after assembling the {hardware}. The machine studying mannequin must be educated earlier than the primary use. The sensor additionally must be calibrated. There may be a considerable amount of documentation that can assist you get began, nevertheless. So in case you have the curiosity, and a bit of little bit of endurance, you shouldn’t have an excessive amount of bother. Take a look at the challenge write-up for all the required particulars.
