To make the leap from a circuit board to the human physique, digital parts want a critical makeover. As wearable digital gadgets enhance in recognition for a variety of functions from well being monitoring to digital actuality, we discover ourselves in want of soppy, stretchable sensors that may conform to, and transfer with, the physique. The inflexible designs historically utilized in these gadgets can’t flex with the physique, and they’re uncomfortable for long run use in a wearable.
One sort of sensor that’s significantly essential for wearable functions is the pressure sensor. These gadgets present quite a lot of exact details about how their wearer is shifting, and the place that their physique is in. From well being to health monitoring, that is important info. Happily, many gentle, versatile sensors of this kind exist already. Sadly, they are typically fragile and vulnerable to breaking, leaving these poor little sensors within the e-waste heap lengthy earlier than their time. How unhappy!

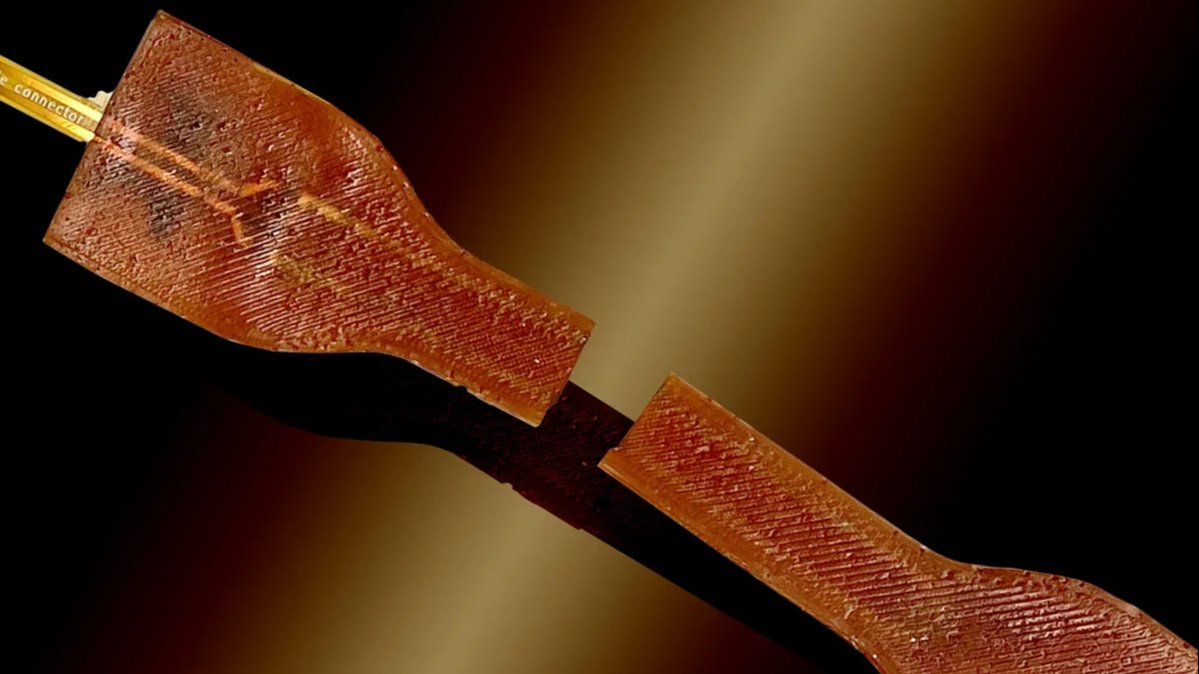

A more in-depth take a look at the sensor design (📷: R. Sangma et al.)
However now a brand new and higher choice exists. A gaggle led by researchers at Vrije Universiteit Brussel has developed a stretchy, self-healing pressure sensor. The skinny, versatile system can transfer with the physique with out inflicting discomfort whereas recording correct pressure information. However not like current programs, it isn’t simply broken. And even whether it is reduce utterly in half, it may be mended by simply sticking it again collectively.
The important thing to the design is a self-healing polymer and a liquid metallic conductor. The polymer relies on a chemical bonding course of known as Diels-Alder crosslinking. In contrast to conventional silicone substrates, which tear and keep damaged, this polymer can “bear in mind” the way it was structured. When the fabric is broken, the chemical bonds break aside however stay reactive. If the items are pressed again collectively, these bonds re-form, primarily knitting the sensor again right into a single piece. Left at room temperature, the sensor can heal in about 24 hours. With slightly assist from warmth, the therapeutic course of takes simply 4 hours.
Inside this self-healing pores and skin is a conductive liquid metallic alloy known as Galinstan, manufactured from gallium, indium, and tin. Galinstan flows simply, however it is usually biocompatible and protected to make use of close to the human physique. One would possibly assume that chopping the sensor in half would trigger the liquid metallic to leak out, however the group discovered in any other case. When uncovered to air, Galinstan rapidly types a skinny oxide layer that acts like a brief seal, very like clotting blood. When the damaged items of the polymer are pressed collectively once more, the oxide barrier dissolves, reconnecting the liquid metallic channel and restoring electrical conductivity.
In exams, the sensor was stretched and damaged a number of instances, then healed with out issues. Even after six cycles of full rupture, the sensor nonetheless carried out at about 80 p.c of its unique capability.
The group has already spun out an organization, Valence Applied sciences, to commercialize the design. Their imaginative and prescient contains functions in rehabilitation drugs, sports activities efficiency monitoring, and even gentle robotics. Ultimately, they hope to scale up the know-how in order that full-body motion could be tracked with an array of those resilient sensors.
