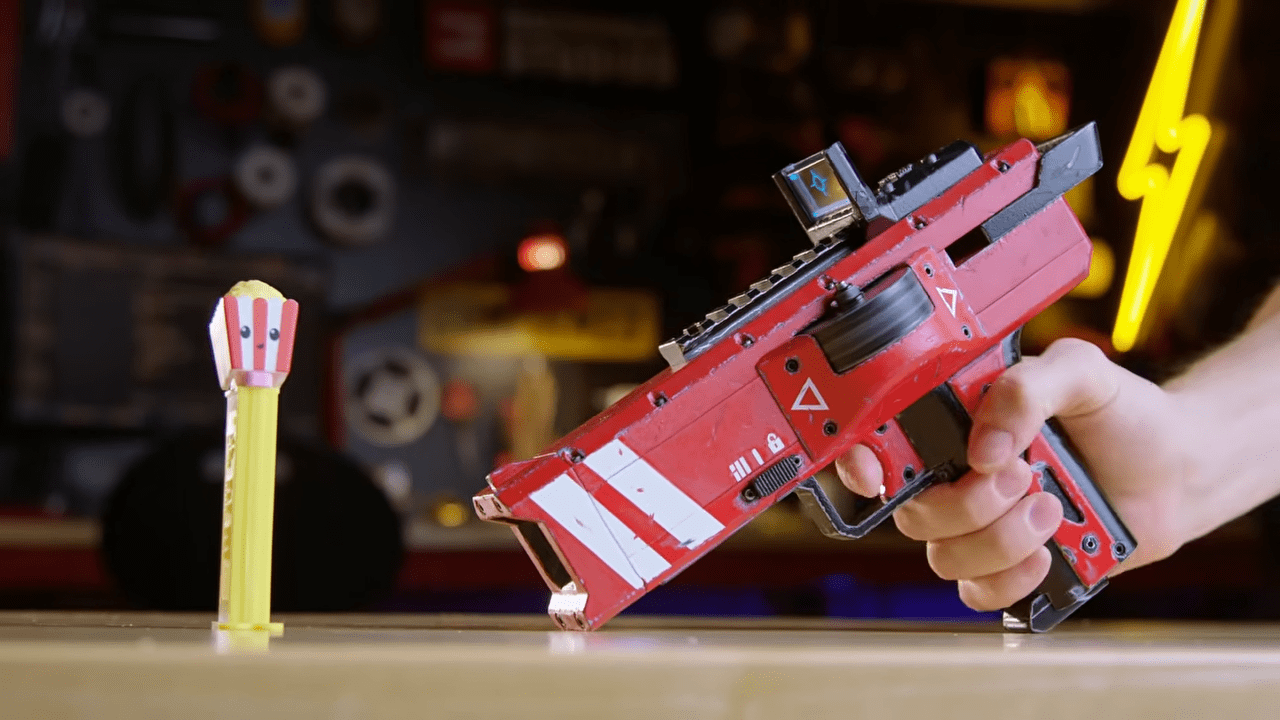

PEZ candies are actually yummy — do your self a favor and go purchase a 5lb bag on-line, then thank me later. However along with being tasty, they’re additionally enjoyable on account of the long-lasting PEZ dispenser designs which have come and gone over the a long time. There’s something extremely satisfying in regards to the mechanical motion of a PEZ dispenser and that led Davis DeWitt, a proficient prop builder and proprietor of Backhaul Studios, to create this absolutely automated, high-velocity PEZ sweet launcher.
DeWitt beforehand constructed a condiment cannon able to throwing these little particular person serving jelly and syrup packs you discover at diners and resort continental breakfast spreads. That was a two-handed affair appropriate for intense firefights and DeWitt wanted a smaller, holsterable companion for quickdraw snack duels to enhance it. This PEZ launcher is the consequence and it’s a masterpiece.
As a substitute of reinventing the wheel, DeWitt constructed this PEZ launcher round present wheel-based thrower designs, like what you may see in a tennis ball launcher. Two wheels, pushed by drone-style brushless DC motors and with grippy TPU surfaces, seize onto any PEZ sweet that will get shut sufficient. The wheels spin at very excessive charges, in order that they fling the PEZ down a barrel-like chute at super pace (60mph+) as quickly as they get a grip.
To get the PEZ candies to the wheels reliably and routinely, DeWitt designed a magazine-fed system with inspiration from the PEZ dispensers themselves. A spring pushes up the candies to a feed ramp simply behind the wheels and a mechanism pushes the following sweet in line into their grip. Initially, DeWitt used a solenoid to push the PEZ into the wheels, however discovered that it had hassle retracting with out binding. In the end, he switched to a servo-actuated rack-and-pinion mechanism that operates beneath energy in each instructions, overcoming the friction and binding.
That permits for automated launching, because the rack-and-pinion can preserve transferring forwards and backwards so long as the wielder tells it to. DeWitt added a Waveshare ESP32-S3 Mini growth to manage that motion, together with the wheel motors and the digital sight. That sight serves double responsibility, preserving PEZ on course and offering standing data. It’s an OLED with the backing eliminated, making it clear. A reticle within the middle helps with aiming and icons on the perimeters point out the standing.
The physique of the launcher was 3D-printed, painstakingly sanded, after which painted. In DeWitt’s trademark type, weathering makes it appear like one thing from a gritty Hollywood sci-fi film. Now DeWitt simply wants to attend for Halloween and a few courageous trick-or-treaters prepared to threat their enamel for some scrumptious PEZ.
