The last word dream of technophiles is to dispose of keyboards, touchscreens, and different conventional enter units and substitute them with a direct brain-computer interface (BCI). Now we have computer systems with blazing-fast processors and immense quantities of reminiscence nowadays, however utilizing a keyboard to interface with them is a big bottleneck. It’s like having a large cloud computing cluster that’s solely accessible by way of a 56K dial-up modem.
Sadly, any kind of BCI we will use at house is someplace between fully unusable and actually, actually unhealthy by way of performance. Not many individuals are keen to shell out tens of hundreds of {dollars} or have electrodes implanted into their mind for higher efficiency. So, it could appear, we have now to accept junky {hardware} if we need to experiment with BCI expertise.
The board can be utilized with a conventional cap (📷: Cerelog)

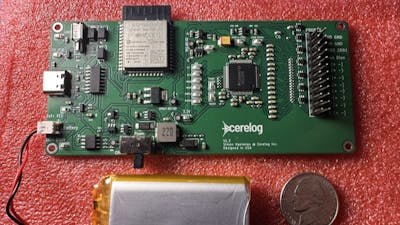

That might not be the case for for much longer, nevertheless. An organization known as Cerelog is working to develop an reasonably priced, open supply BCI that gives a research-grade electroencephalogram (EEG) system. It’s constructed round an ESP32-S3 microcontroller to make the machine, known as the Cerelog ESP-EEG, accessible and hackable. However additionally it is outfitted with industry-standard parts, just like the ADS1299 ADC, to offer precision EEG measurements.
The ESP-EEG is an eight-channel biosensing board that makes use of an ESP32-S3 to deal with knowledge acquisition, processing, and wi-fi connectivity. Paired with it’s Texas Devices’ ADS1299, a 24-bit, low-noise analog-to-digital converter broadly considered the gold customary for EEG entrance ends. This mix permits the board to seize microvolt-level alerts generated by the mind with far larger constancy than typical hobbyist options.
One of the vital essential elements of EEG {hardware} design is coping with electrical noise, and that is the place Cerelog centered a lot of its engineering effort. The human physique readily picks up 50 or 60 Hz interference from energy traces, which may simply swamp the faint alerts researchers are attempting to watch. Moderately than counting on easy passive grounding, the Cerelog ESP-EEG implements a real closed-loop lively bias system. The board repeatedly measures common-mode noise on the physique, inverts it, and feeds it again by a devoted bias electrode. The result’s a dramatically decrease noise ground and cleaner knowledge that may reveal refined mind exercise similar to alpha waves.
Visualizing the EEG knowledge (📷: Cerelog)
From a usability standpoint, the board is designed to work with customary EEG electrodes, touch-proof adapters, and conductive gel, and it may be mounted on both a 3D-printed headset or used with a industrial EEG cap. For security and sign integrity, it’s meant for use solely with a battery-powered laptop computer, avoiding the dangers and interference related to mains energy.
The Cerelog ESP-EEG integrates with BrainFlow for builders who need to write their very own purposes in Python or different languages, whereas a forked model of the OpenBCI GUI permits customers to visualise brainwaves in actual time with out writing any code. Collectively, the {hardware} and software program kind a versatile platform that makes critical BCI experimentation much more accessible than it has ever been earlier than.
