Some design issues are fairly properly solved, just like the zipper on clothes or the design of an ordinary gentle change. Certain, there’s some quantity of variation in these designs, however the core performance and consumer expertise have develop into pretty constant. However then there are the extra experimental areas the place issues haven’t but been labored out so properly. Robotics has many such areas — think about the gripper, as an illustration. Points like extreme bulk, excessive prices, and difficulties with greedy delicate objects plague current techniques and have led to a proliferation of experimental designs.
Engineers on the College of California San Diego have taken on these points by creating a new sort of gripper with a really novel design. Impressed by the childhood (and generally maturity) pastime of seeing how far a tape measure can lengthen earlier than bending, the staff created a low-cost, versatile robotic gripper created from measuring tape. Known as GRIP-tape, the system makes use of the fabric’s distinctive mixture of power, flexibility, and springiness to seize objects gently but successfully.

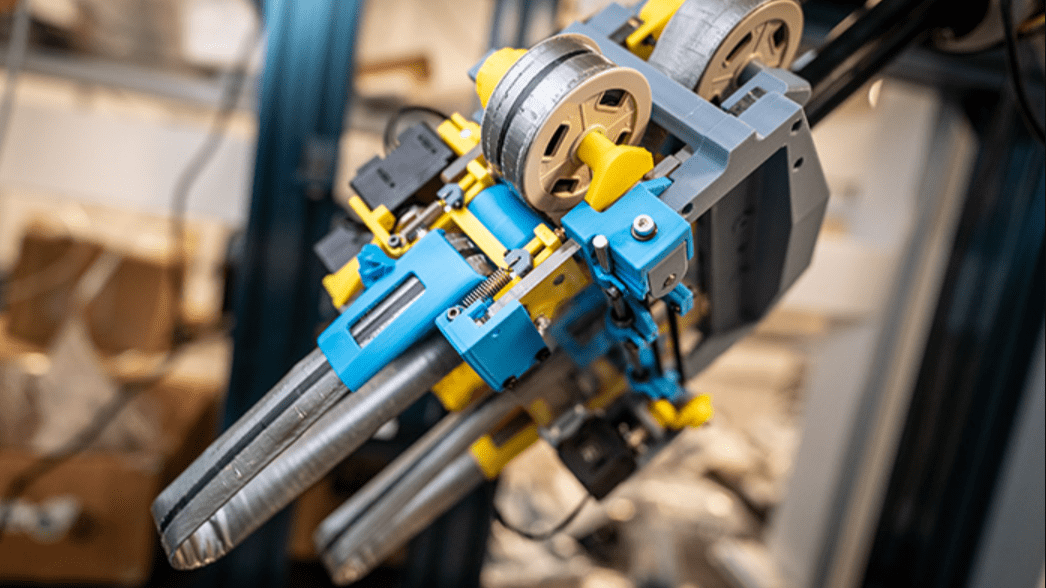

The design options two “fingers,” every composed of a spool holding two rolls of measuring tape sure collectively for added rigidity. These spools are compact when retracted however will be prolonged into triangular-shaped appendages that attain out to seize objects. 4 small motors management the movement of every triangle part, enabling the gripper to elongate or retract the fingers independently.
Not like conventional grippers that require cumbersome mechanisms to realize a large attain, GRIP-tape’s design is each space-efficient and light-weight. When not in use, the gripper folds neatly right into a compact type, excellent for space-constrained environments corresponding to agricultural fields, spacecraft, or deep-sea operations.
The distinctive design permits for superior manipulation capabilities — corresponding to rotating objects or conveying a number of gadgets — by controlling how every finger rotates relative to the opposite. Moreover, the measuring tape’s metal construction is strong sufficient for repeated use however delicate sufficient to deal with delicate fruits like tomatoes or lemons with out bruising them.
As a result of the tape can transfer like a conveyor belt, it may transport objects throughout its floor and deposit them elsewhere. In a sequence of trials, the gripper efficiently lifted and moved massive, irregularly formed fruits corresponding to oranges and whole tomato vines. By rotating the fingers in opposing instructions, it was proven that the gripper may even gently decide fruit by twisting its stem.
By rethinking the gripper’s type and performance by means of the lens of a easy software like a tape measure, the researchers could have opened the door to a brand new era of light-weight, adaptable robotic manipulators. It has to make you marvel — what different on a regular basis objects round us might remodel the world of robotics?
