Can all of us share a second of honesty and admit that Christmas tree ornaments are sort of boring? Certain, they are often very sentimental, however they don’t actually do something and that’s a disgrace. To right that yuletide drudgery, Sean Hodgins constructed this decoration that comprises a tiny diorama full with a working mannequin practice.

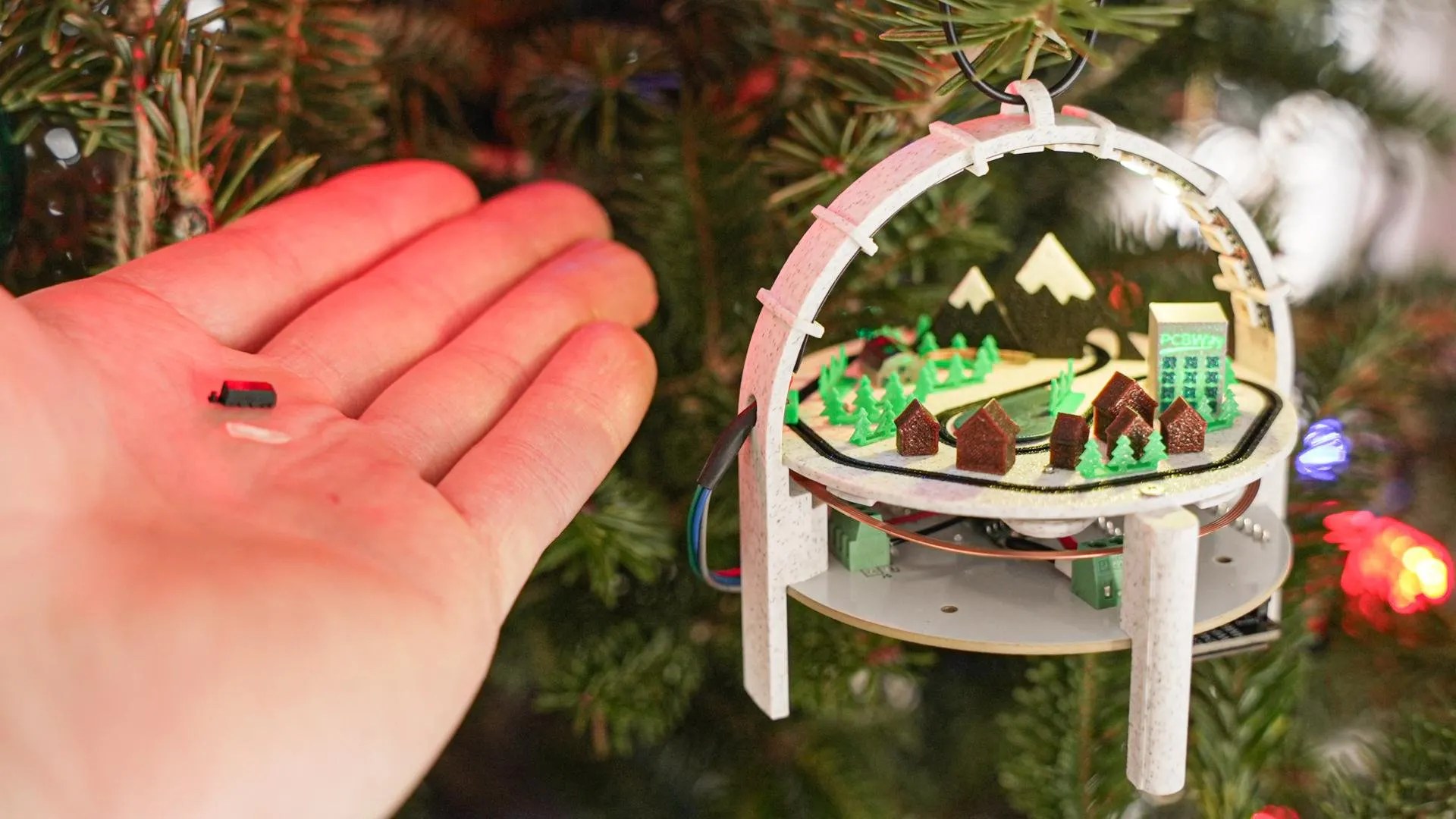

It is a fairly usually sized decoration — no trickery there. Contained in the clear globe of the decoration is slightly scene that includes mountains, bushes, homes, and a PCBWay workplace constructing. Winding round that tiny city is an itty-bitty practice observe on which a minuscule practice rides. The diorama was 3D-printed and there isn’t a lot to speak about with that, however making such a small mannequin practice transfer was an interesting problem.
Hodgins experimented with totally different concepts to drag that off, as a result of it wasn’t a trivial downside. On prime of being small, the diorama additionally hangs from a tree and might transfer round. The practice wanted to run reliably, even when tilted.
The answer that labored was based mostly on magnets. The practice has a stiff wire on its backside to maintain it driving within the groove of the observe. Then beneath the diorama, a motor pulls a belt that has a magnet connected to it. That magnet attracts one other magnet on the practice, inflicting the practice to comply with the belt path because it loops round. That works beneath the management of an Adafruit Feather ESP32 V2 improvement board on a customized PCB. Hodgins even threw in some LEDs to gentle up the scene.
Now Hodgins has an decoration that’s sentimental and that really does one thing. His future holidays are certain to be rather more entertaining. And if you wish to construct this decoration your self, he posted an in depth construct information on Instructables.
