Pseudonymous maker and homebrewer “diy-fieldman-741,” hereafter merely “Fieldman,” has designed an Espressif ESP32-S3-powered pc to help with the method of creating a drinkable tipple from scratch — taking cost of an off-the-shelf induction cooktop for temperature management.
“[This is] a small brewing setup to make beer brewing dwell a bit simpler,” Fie explains of the challenge. “It handles all mashing (changing starch to fermentable sugars) and cooking steps. When a guide intervention is required it beeps. [It’s] buil[t] round a[n] [Espressif] EP32 module with 4.3″ touchscreen, programmed in Arduino IDE (in fact!)”
The method of changing starches and yeast is a bit more concerned than merely sticking issues in a bucket and hoping for the very best: there’s malting, mashing to show starches into sugar, lautering, boiling, the all-important fermentation course of that turns the sugars into alcohol, conditioning, filtering, and at last bottling. For many homebrewers, it is all a really guide course of — however Fieldman determined to automate a number of components, in an effort to arrive on the remaining vacation spot with rather less fuss.

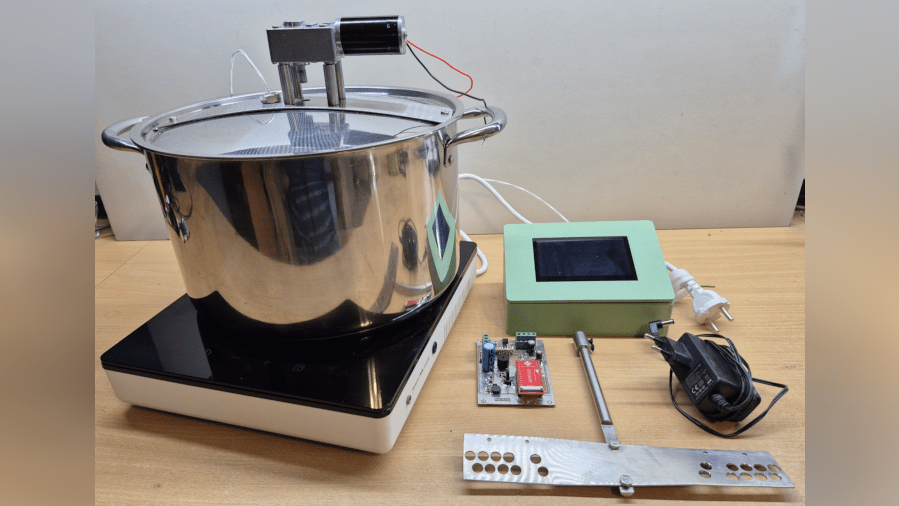

The guts of the system is an Espressif ESP32-S3-powered controller terminal, constructed utilizing a home-etched PCB, with a graphical 4.3″ touchscreen interface that gives detailed graphs all through the method. An automatic stirrer and PWM-controlled induction hob — a modified IKEA TILLREDA 2kW induction cooktop, managed through pulse-width modulation (PWM) from the ESP32-S3 — takes round three hours of guide monitoring and stirring out of the equation, making it so much simpler to experiment with new brews.
“My favourite [brew] is cherry lambic,” Fieldman notes, “a to not[o] alcoholic bitter cherry flavoured beer.”
Extra info on the challenge is offered on Reddit and on Hackaday.io.
