Watchmaking is an unbelievable combination of engineering, machining, and artistry and people watches characteristic what are arguably essentially the most intricate miniature mechanisms in frequent use. However watchmaking can be a really well-established career and interest, which implies that we don’t typically see new designs that stand out. There are, in any case, solely so some ways to show the time by mechanical means. However what should you have been to broaden the idea of timekeeping to a higher scale? That’s what Illusionmanager did with this “Astronomer’s Watch” that represents the whole photo voltaic system .
There are numerous astronomical watches accessible available on the market, however they have an inclination to exist on a spectrum from “cheesy” to “wildly costly.” The Astronomer’s Watch is neither and that took some intelligent engineering and packaging to drag off.

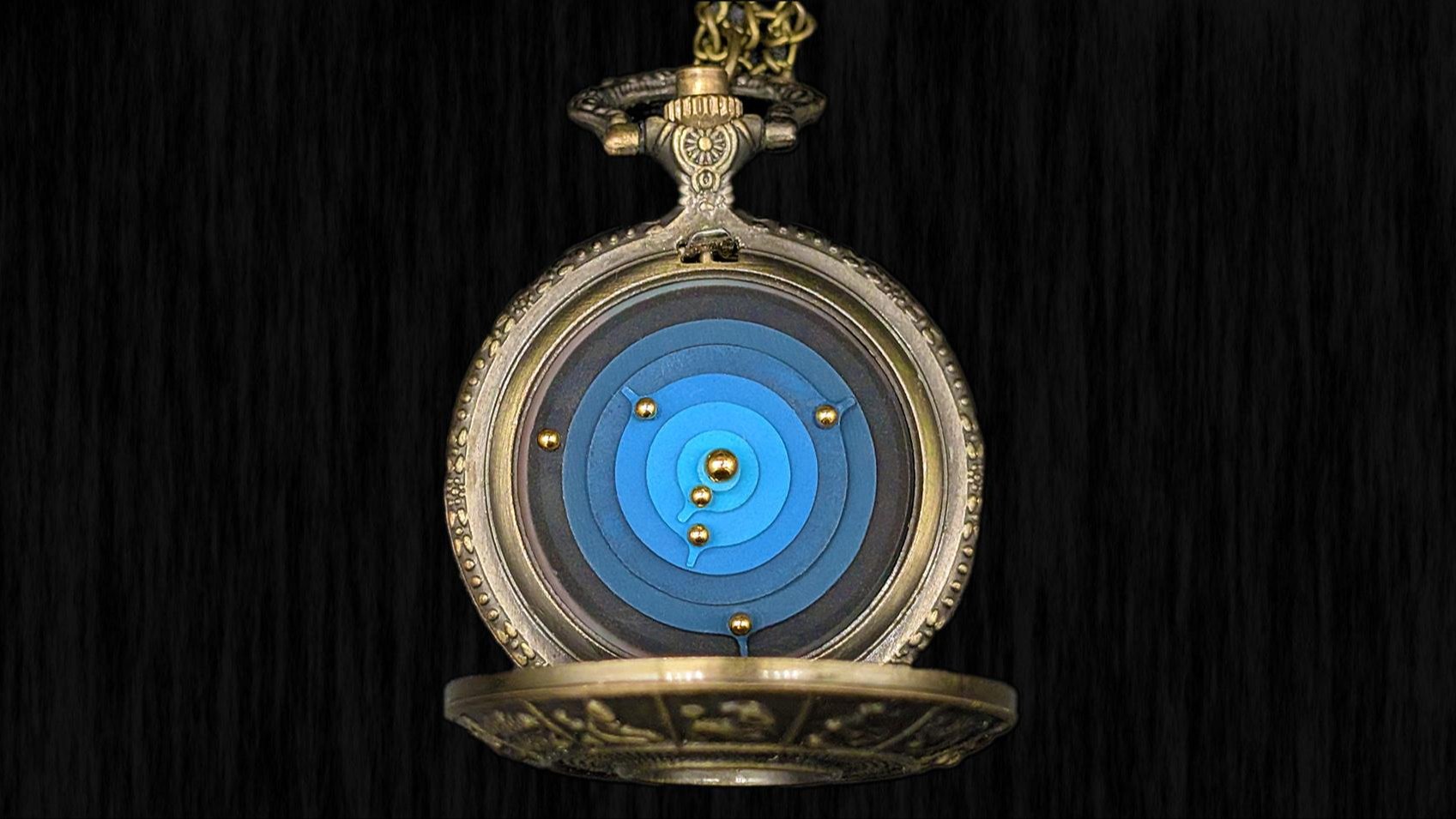

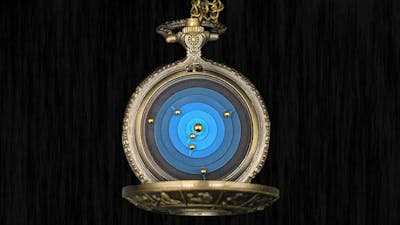

The Astronomer’s Watch represents six planets, plus the Solar. So, Uranus and Neptune aren’t a part of the enjoyable and Pluto wasn’t even a consideration. Upon activation, the planets do some choreographed orbital dance that ends with them being of their precise astronomical positions — although, after all, it isn’t to scale and the entire orbits are round.
The ingenious half is that every one of that motion solely requires one tiny little stepper motor. The outermost planet (Saturn) can push up towards the following (Jupiter) to nudge it into place. That continues all the best way down the road to Mercury, so the watch can transfer the entire planets in sequence. A single enter gear ring drives Saturn and the remainder of the planets spin freely on discs, with simply sufficient friction to maintain them from wobbling round.
That efficiency is all managed digitally and so Illusionmanager needed to grasp miniaturization and packaging to drag it off. The enclosure got here from an inexpensive mass-produced pocket watch, however the internal workings are customized. A Seeed Studio XIAO ESP32-C6 improvement board controls the micro stepper motor by a tiny Pololu STSPIN220 driver module and energy comes from somewhat 100mAh lithium battery. An itty-bitty reed swap permits homing and urgent the watch’s crown closes a swap to activate the orbital dance.
The mechanical elements are a mixture of 3D-printed plastic and handcrafted brass, mounting onto a 3D-printed body that matches snugly within the pocket watch case. The planets are literally small stud earrings. The Solar, Mercury, and Venus are seen by the small window within the watch’s cowl, however the different planets can’t be seen till it’s open.
IllusionManager even applied a technique for getting into the present date by tapping the button in a selected sequence — although it’s in all probability simpler to easily set it through USB with the serial software.
