The final time I performed Minecraft, virtually 15 years in the past, it was a fairly primary sport, just like the digital equal of a set of LEGO bricks. You can mine and you might assemble basic items to help in mining, however that was just about it. Apparently, issues have modified dramatically within the interim and present variations of Minecraft have all types of superior performance. You possibly can even craft an in-game compass that factors in direction of a lodestone or the world spawn level! And now you can also make a Minecraft compass in actual life, because of this mission by chaosgoo.

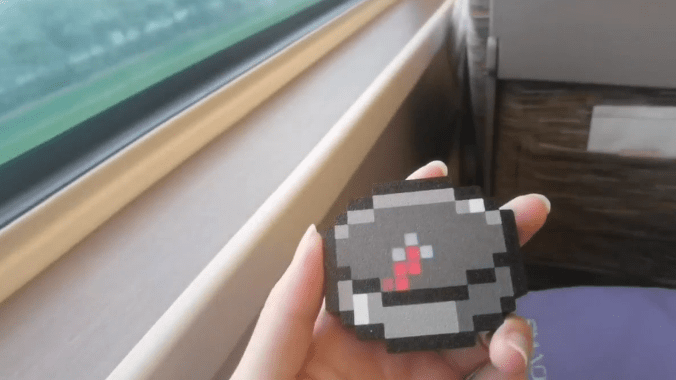

This DIY machine is a delight. It appears to be like identical to the pixelated, blocky compass in Minecraft, however it really features in the true world. Transfer it round, and the needle will compensate and rotate to stay pointing on the vacation spot. And that may be a reputable vacation spot, which the consumer units utilizing a map within the companion app. That could be the consumer’s dwelling, a retailer they wish to go to, or a suspiciously mineral-laden sq. rock they present in an area park.
That was no small achievement and to make it occur, chaosgoo needed to design a very customized PCB to deal with the performance. That PCB appears to be like very nice and the bottom even incorporates a printed crafting recipe for the in-game compass, together with some related code.
The PCB is fairly complicated and on the coronary heart of it’s an ESP32-C3-MINI microcontroller, which has each Wi-Fi and Bluetooth adapters built-in. Different elements embrace a USB connector, a lithium battery charger, and a digital compass.
Importantly, the PCB additionally hosts a matrix of 42 TX1812IJA-F01 RGB LEDs. Primarily based on the board schematic, it appears that evidently these are individually addressable RGB LEDs, just like the favored WS2812b. Because of the intelligent use of PET LGT075J materials as a lightweight diffuser, the compass needle doesn’t look like glowing LEDs. In daylight a minimum of, it appears to be like like it’s fabricated from voxels that magically transfer across the floor — a very neat impact that I haven’t seen accomplished this effectively earlier than.
The enclosure is 3D-printable and is concerning the dimension of the palm of a hand. It seems to be slim sufficient to tuck right into a pocket.
If you wish to construct your individual, it will be just a little tough, because the documentation was written in Chinese language and it largely covers the software program. However yow will discover the 3D fashions on MakerWorld, the PCB information on OSHW Hub, and every little thing else on GitHub.
