Researchers from the Seoul Nationwide College of Science and Expertise have developed a 3D-printed good materials that can be utilized to construct high-performance stress sensor for wearable gadgets.
“The proposed sensor platform may be built-in into good insoles for gait monitoring and pronation evaluation, robotic arms for exact object manipulation, and wearable well being monitoring programs that require comfy sensing with out disrupting day by day life,” says affiliate professor Soonjae Pyo of the potential for the crew’s creation. “Importantly, the auxetic construction preserves its sensitivity and stability even when confined inside inflexible housings, reminiscent of insole layers, the place standard porous lattices usually lose efficiency. Its scalability and compatibility with numerous transduction modes additionally make it appropriate for stress mapping surfaces, rehabilitation gadgets, and human-robot interplay interfaces that require excessive sensitivity and mechanical robustness.”
A 3D-printed “auxetic” metamaterial might ship sturdy, comfy, however delicate stress sensors for wearables and extra. (📷: Kang et al)
The stress sensor developed by the researchers is predicated on the idea of auxetic mechanical metamaterials (AMMs), which posses a adverse Poisson’s ratio — the quantity by which a cloth deforms in a single path when compressed or elongated within the different, named for mathematician and physicist Siméon Poisson. With a adverse Poisson’s ratio, the supplies compress inwards on the sides when compressed vertically — the other of what you’d anticipate — however efforts to make use of this property for sensors have hit difficulties in fabricating useful gadgets.
That is the place the crew’s work is available in: a 3D-printed AMM-based tactile sensing platform that takes the type of a cubic lattice containing spherical holes. Relying on how the fabric is functionalized, the ensuing sensor may be capacitive or piezoresistive — and to show its real-world potential the crew constructed two proof-of-concept prototypes, a 4×4 tactile array for spatial stress mapping feeding into an object classification mannequin and a wearable insole with gait monitoring and pronation sort detection.

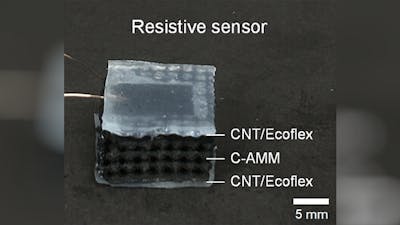

DLP-based 3D-printing (d) is used to construct the sensors (e, f) with both capacitive or piezoresistive capabilities. (📷: Kang et al)
“The distinctive adverse Poisson’s ratio conduct utilized by our know-how induces inward contraction beneath compression, concentrating pressure within the sensing area and enhancing sensitivity. Past this elementary mechanism, our auxetic design additional strengthens sensor efficiency in three essential facets: sensitivity enhancement by way of localized pressure focus, distinctive efficiency stability when embedded inside confined constructions, and crosstalk minimization between adjoining sensing items,” says mission lead and first writer Mingyu Kang.
“In contrast to standard porous constructions, this design minimizes lateral enlargement, bettering wearability and decreasing interference when built-in into gadgets reminiscent of good insoles or robotic grippers. Moreover, using digital gentle processing-based 3D printing permits exact structural programming of sensor efficiency, permitting geometry-based customization with out altering the bottom materials.”
The crew’s work has been printed within the journal Superior Useful Supplies beneath open-access phrases.
