Pseudonymous maker “rawkout1337” has deserted conventional laptops in favor of a 3D-printed luggable designed to be a little bit extra strong — and that includes a screen-mounted trackball with rear-facing buttons for its main pointer management.
“I needed a small, moveable laptop that I might use to debug code in Arduino/Raspberry Pi initiatives which might be put in in locations that will be a bit precarious to convey a traditional laptop computer,” rawkout1337 explains. “I am conscious how low cost I should purchase a laptop computer. That’s not the purpose of this undertaking. I additionally simply actually needed to make a cyberdeck. I designed the entire meeting in Solidworks round off the shelf electronics (with some minor modifications).”

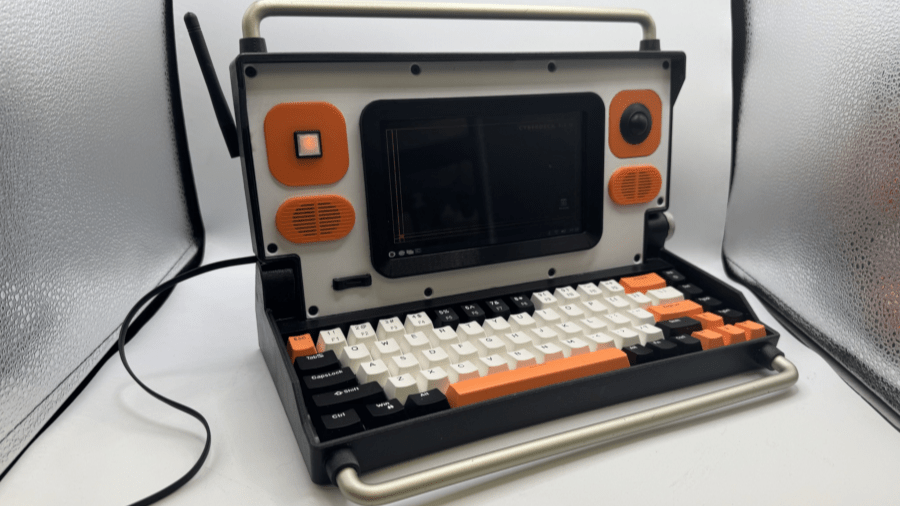

If touchpads hadn’t turn out to be the go-to pointer management system for portables, that is what we might have had. (📷: rawkout1337)
The housing, 3D-printed in nylon with PLA accents and a laser-cut styrene higher panel, is designed in a clamshell kind issue, however one which’s one thing of a throwback to the times earlier than laptops got here with built-in pointing gadgets. The decrease half homes a mechanical keyboard, with the higher half taking part in host to a small display and stereo audio system — however reasonably than prolong the casing beneath the keyboard for a trackpad, as with a contemporary laptop computer, there is a trackball to the proper of the show with buttons positioned across the rear, for the consumer’s fingers to push whereas their thumb rolls the trackball. If that feels a little bit too cumbersome, the show is a fully-functional touchscreen too.
Steel handles make the moveable a real luggable, with the decrease deal with doubling as a wrist relaxation for typing. (📷: rawkout1337)
Contained in the housing is a Raspberry Pi 4 Mannequin B single-board laptop with exterior Wi-Fi antenna, an influence button and standing LED linked to the general-purpose enter/output (GPIO) header, a microSD Card extension for straightforward entry with out dismantling the case, and a USB Kind-C energy enter plus two USB 3.0 ports for equipment. One factor lacking, although: a battery, which the maker says is the “first precedence” for upgrades. When closed, a pair of steel handles make it simple to hold on-the-move — with the decrease bar doubling as a wrist-rest for extra snug typing.
The undertaking is documented on Imgur; on the time of writing, rawkout1337 had not launched design or 3D print information for the housing.
