Now we have seen our fair proportion of cyborg bugs right here at Hackster Information up to now. Whereas these creepy-crawlies could make some folks need to seize the closest shoe, when bugs are geared up with know-how, they’re hardly pests to us any longer. Earlier analysis has demonstrated that these cyborg bugs can, for example, shortly find survivors after pure disasters, and so they can act with a pace and effectivity that’s remarkable in robots of an analogous scale.
Nevertheless, a small variety of bugs isn’t more likely to be very helpful in a significant search and rescue operation. Swarms of those cyborgs will probably be wanted for real-world purposes. However equipping massive numbers of bugs with the mandatory {hardware} parts isn’t totally sensible utilizing at the moment’s strategies. Usually, researchers manually glue the principle {hardware} to every insect’s again, and bodily connect electrodes to their antennae or different sensory organs. This strategy doesn’t scale properly, which is one motive why the know-how has not seen a lot of any use outdoors of analysis labs.
An summary of the {hardware} used within the research (📷: Q. Lin et al.)

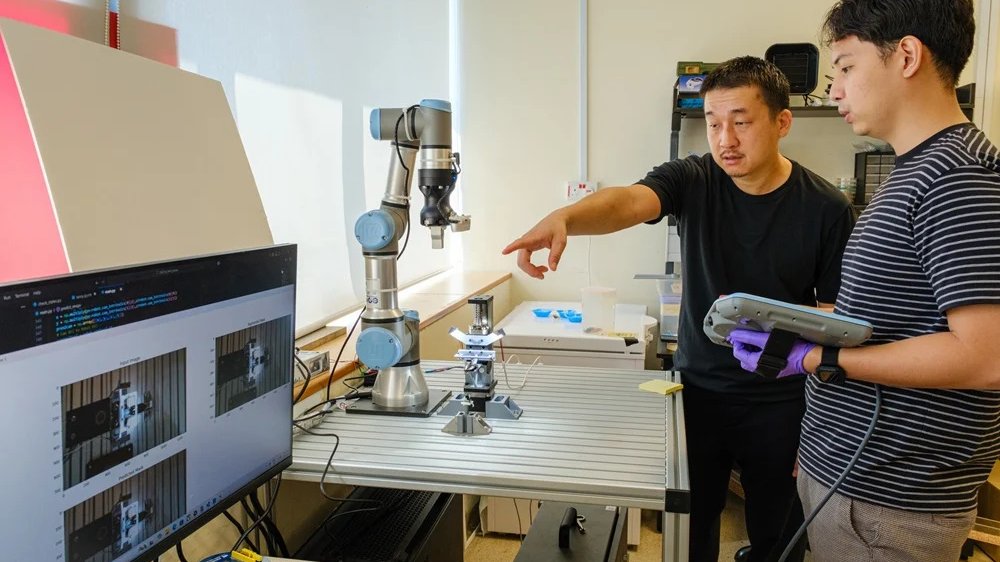

A bunch of engineers at Nanyang Technological College has anticipated the approaching want for higher meeting strategies, and so they have developed an automated cyborg insect meeting line. It might connect a miniature digital backpack to a Madagascar hissing cockroach in simply 68 seconds, which is about 60 occasions quicker than the normal handbook course of. The system combines a robotic arm, laptop vision-based website detection, and an insect fixation construction to make sure exact placement of electrodes on the optimum anatomical location.
The system makes use of a Common Robots UR3e robotic arm geared up with a RealSense D435 depth digital camera and a Robotiq Hand-e gripper. The digital camera scans the insect to find the optimum implantation website on the intersegmental membrane between the pronotum and mesothorax. After verifying the reference level, the arm grasps the backpack and strikes to a predefined place for electrode implantation at a fastidiously calculated pitch angle that minimizes the chance of collisions with the insect or surrounding construction. The electrodes are inserted, and the arm applies downward pressure to securely connect the backpack’s branches to the cockroach’s cuticle. As soon as full, the system releases the insect and resets for the subsequent meeting.
The steps concerned in meeting (📷: Q. Lin et al.)
The backpack homes a light-weight circuit board and electrodes that ship light electrical stimulation to information the insect’s actions. In contrast to standard robots, these cyborg bugs use their very own legs for locomotion, which makes them extremely environment friendly at navigating via difficult environments. Whereas constructing the meeting line, the crew additionally improved the backpack’s energy effectivity, lowering the voltage required for stimulation by 25% whereas sustaining exact management over the bugs.
Utilizing their new strategy, the researchers have already seen some success outdoors of the lab. Lately, 10 cyborg bugs have been deployed in Myanmar with the Singapore Civil Defence Drive throughout Operation Lionheart, following a devastating 7.7-magnitude earthquake. This small trial was the primary real-world humanitarian mission to make use of insect-robot hybrids. It’s hoped that this will probably be a springboard to greater and higher issues for this nascent know-how.
