Reminiscence helps units run quick and easy. Find out how new tech fixes errors, retains information protected, and why higher reminiscence makes your devices work smarter day by day.
Reminiscence modules are essential for computer systems and so they outline their efficiency. The reminiscence modules are able to storing and processing information which helps in execution of duties, working functions, and way more. Normally, having extra RAM means higher efficiency, and this efficiency latency will increase as a consumer performs a number of actions or works inside a software program setting with a major quantity of information loaded in reminiscence. Every system makes use of the identical title for a part in reminiscence—desktop computer systems will use a DIMM whereas laptops will use a SODIMM, after which there was additionally RIMMs, which is now out of date. Including reminiscence will improve the system’s responsiveness and pace, however it should adjust to the brand new reminiscence module necessities and likewise adjust to the system necessities.
“DDR RAM and LPDDR are some subclasses of RAM. In these sorts this system runs whereas flash shops it. For information vary of SD playing cards, micro SD playing cards, eMMC and a great deal of different choices are most popular,” mentioned Kishore Narang, Principal Design Strategist & Architect, Narnix Technolabs Pvt. Ltd.
With the advance of know-how comes the problem of sustaining information integrity and system reliability. As the scale of particular person DRAM chips shrinks to beneath 10nm, these models develop into extra inclined to corrupting information resulting from inside errors and attainable crashes. As a way to assist in mitigating this downside, error correction codes have been built-in within the DDR4, DDR5, and LPDDR sorts of reminiscence. These strategies guarantee correct error detection and correction throughout the chip throughout information switch which ensures constant and secure performance for a variety of units.
Past conventional computer systems, reminiscence performs an increasing position in related and embedded programs. The event of IoT makes it attainable to automate processes in billions of units starting from sensors to smartphones thus requiring dependable and power-efficient reminiscence. In the meantime, stable state disks (SSDs) with superior flash applied sciences are making their mark within the AI and excessive efficiency computing house, offering quicker, scalable storage. These reminiscence know-how developments are paving the best way for extra superior capabilities within the client, industrial, and enterprises areas.
Trendy Reminiscence Retains Itself in Examine
As DRAM shrinks to 10nm and beneath, errors improve, risking information corruption and crashes. Error correction is crucial. Error Correction Code (ECC) detects and fixes small errors to make sure reliability.

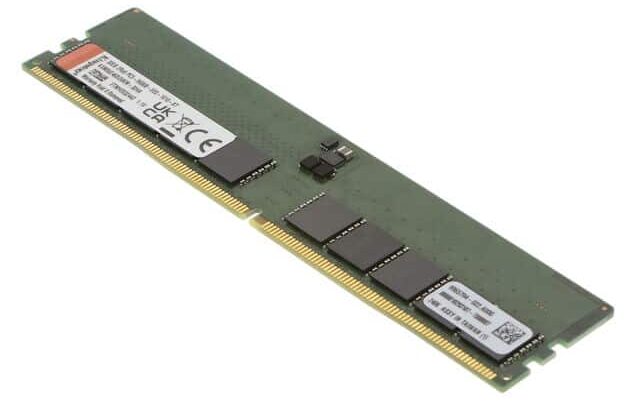

Every new DDR technology boosts pace and capability however raises single-bit error dangers. DDR5 consists of on-die ECC, including 8 ECC bits per 128 information bits. The chip generates ECC on writes and checks it on reads, correcting single-bit errors routinely—enhancing reliability with out burdening the system. For instance, the Kingston KSM56E46BD8KM-32HA is a 32GB DDR5 reminiscence module made for servers. It operates at a pace of 5600 MT/s and has built-in error correction (ECC) to appropriate minor information errors. It makes use of 20 small reminiscence chips to retailer information. The module connects to the system via 288-pin DIMM, which helps guarantee connection. It’s designed for secure, high-speed efficiency in programs that want dependable reminiscence.
“Concerning error correction like ECC in DRAMs, that is normally dealt with within the software program layer—via the OS, BIOS, or {hardware} abstraction layers—whether or not it’s Linux or one other system. The software program manages error correction in coordination with {hardware},” Kishore added.
On-die ECC protects information contained in the chip solely. To guard information shifting between CPU and reminiscence, side-band ECC is used. DDR4 and DDR5 modules add 8 ECC bits to 64 information bits, creating 72-bit-wide modules widespread in enterprise servers.The Micron MTA8ATF1G64HZ-3G2R1 is an 8GB DDR4 260-pin SODIMM that gives a stability of efficiency and reliability for information heart use.
In cellular and embedded LPDDR programs, side-band ECC is inefficient resulting from mounted 16-bit channels; additional ECC channels waste bandwidth and energy. As an alternative, inline ECC embeds ECC information throughout the information stream, saving {hardware} and sustaining efficiency regardless of some overhead.
LPDDR5’s hyperlink ECC protects information throughout switch throughout the reminiscence channel. The controller and reminiscence alternate ECC information with every switch to appropriate single-bit errors in transit. Hyperlink ECC doesn’t shield saved information, so it’s mixed with inline ECC for full protection.

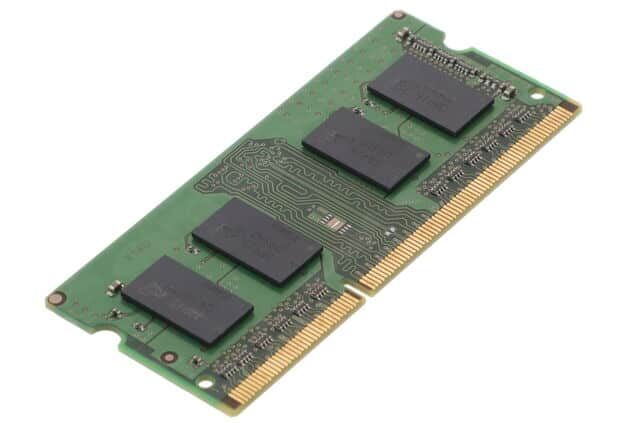

Collectively, on-die, side-band, inline, and hyperlink ECC type a layered protection that maintains information integrity whereas scaling efficiency. In compact, low-power programs like industrial embedded units, the Micron MT4KTF25664HZ-1G9P1 2GB DDR3L 204-pin SODIMM supplies dependable efficiency the place house and power use have to be minimal.
Reminiscence Made for Industrial Use
Flash reminiscence is prevalent in embedded and industrial functions, so it’s essential to make the precise selections concerning sorts and packaging. Industrial environments can expose {hardware} to mud, moisture, chemical substances, and mechanical hundreds. All of those can injury contacts and doubtlessly render the system inoperative. Onboard controllers unfold information throughout blocks to scale back put on and lengthen life, particularly for high-write areas like logs or runtime information.
“In industrial environments, engineers should rigorously deal with how information is formatted and saved,” says Dharmendra. “Protocols like USB or serial interfaces require exact packet and token dealing with to make sure information integrity when writing and retrieving reminiscence.” Dharmendra Kumar, Founder, EdgeSiTech.
eMMC (embedded MultiMediaCard) is in style in embedded programs. Although consumer-focused, its compact dimension and built-in controller swimsuit industrial use. JEDEC BGA packages (100, 153, or 169 solder balls) guarantee robust connections and shock resistance. eMMC is utilized in industrial controls and transportation.
“EMMC is an rising focus space, particularly for handheld and IoT units, the place we will innovate on storage capability, pace, and protocol help,” Dharmendra remarks.
Industrial and enterprise SSDs require low latency, sturdiness, and powerful error correction, past simply pace. Enterprise SSDs endure assessments for power-loss safety and information integrity, together with Learn Disturb and Write Amplification Index (WAI) assessments—decrease WAI means much less put on and longer life.

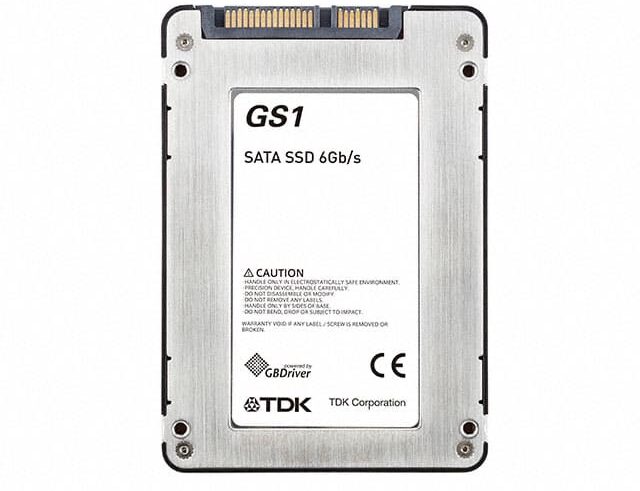

Strong industrial SSDs are prepared for harsh environments, together with very large temperature variance rankings, shock, and vibration resistance and further rugged enclosures. These SSDs have high-speed interfaces and optimized firmware to accommodate real-time duties inside an automation, networking, or medical system context. For instance, the TDK SDE1B032GTKDWBA0ESA0 is a 32GB 2.5″ SATA III SSD with pSLC NAND flash that runs on 5V energy and delivers dependable efficiency in industrial automation and computing.

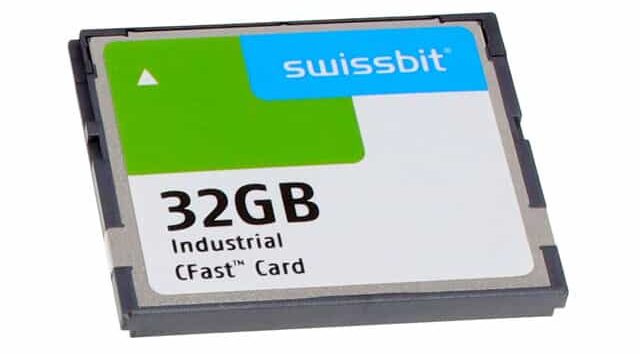

Reminiscence playing cards additionally serve industrial embedded units. The Swissbit SFCA032GH2AD4TO-I-GS-246-STD is a 32GB CFast reminiscence card made for robust industrial use. It shops information reliably even in harsh locations like manufacturing facility flooring. It makes use of MLC flash and a SATA connection to offer quick and secure efficiency in machines and embedded programs.

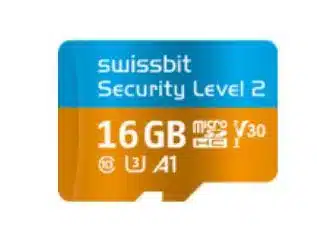

The Swissbit SFSD016GN1PT1TB-I-5E-02P-SW8 is a 16GB industrial-grade SD card utilizing pSLC reminiscence know-how, designed for dependable boot and log storage in distant monitoring and management programs. It additionally consists of built-in safety features like information encryption, safe boot, and entry management. These options assist shield essential information, block copying, and hold programs protected, making it a sensible choice for storing software program, settings, or AI fashions in safe and demanding environments.
Industrial DRAM modules, accessible as DIMM and SO-DIMM, deal with quick information entry, multitasking, temperature extremes, and vibration whereas sustaining stability. 3D NAND Flash improves storage for data-heavy duties in transportation, industrial IoT, and cloud infrastructure.
Embedded Storage That Suits Each Want
Even when quicker Common Flash Storage (UFS) is offered for embedded programs, embedded MultiMedia Playing cards (eMMCs) and Safe Digital (SD) Playing cards are nonetheless dependable choices. Their service and its market house are straightforward, have lengthy life expectancy, and are generally discovered out there; thus, it’s appropriate for mission-critical, long-life initiatives.
Each use NAND flash reminiscence with built-in controllers, which suggests each eMMC and SD Playing cards are managed NAND units; albeit they’ve their distinction in design and performance. eMMC is soldered immediately onto the PCB, that means it can’t be eliminated and it suits a set storage of data securely the place information may be reliably saved. SD playing cards are detachable and swappable, supreme when reminiscence wants updating, switch, or substitute throughout a tool’s life.

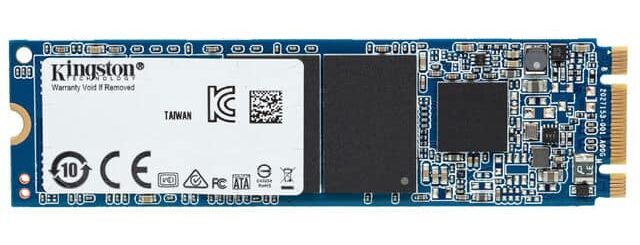

The Kingston OTM8S1S31024Q-B00 1TB M.2 SATA III SSD is a compact, high-capacity storage drive made to be used in small, space-limited units. Its small dimension and huge storage make it match for sensible home equipment, superior IoT programs, and industrial gateways that want quick, reliable storage with out shifting elements.
Since eMMC makes use of an 8-bit parallel bus, it usually supplies higher sequential (and random) learn and write speeds than SD playing cards. It’s usually utilized in smartphones, tablets, laptops, and embedded types the place pace, effectivity, and ruggedness are required. eMMC variants have been ruggedized, have made their manner into automotive and industrial functions resulting from their efficiency and lifespan and might endure harsh environmental situations.

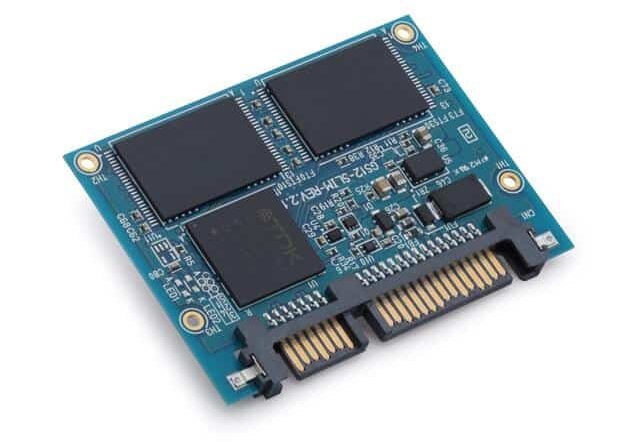

SD and microSD playing cards excel the place detachable storage provides worth—logging information, firmware updates, or fast backups. The TDK SHT2A008GKPAWA00ESA0 is an 8GB SATA SSD made for industrial use. This controller helps the SSD work quick, protects information throughout energy loss, and retains it protected from injury. As 3D flash reminiscence turns into extra widespread, this SSD provides each excessive efficiency and powerful reliability for machines and tools utilized in robust environments.
SD playing cards differ by efficiency class and specs, permitting tailoring to many functions. Excessive-speed SD playing cards can match eMMC speeds in some circumstances and help versatile interfaces like commonplace SD, SPI, and ultra-high-speed modes.
Capability is one other issue. Whereas eMMC usually maxes at 512GB, playing cards just like the 1TB Kingston eMMC present rising embedded storage potential. SD playing cards can attain as much as 2TB, enabling intensive detachable storage, helpful in media-heavy makes use of.
Velocity Meets Endurance
Pseudo-SLC (pSLC), makes use of MLC or TLC flash to retailer just one bit per cell utilizing firmware. Subsequently, pSLC manufacturing and reliability may be near that of SLC whereas costing much less and having larger capability. pSLC is superb for workloads the place writing takes up a big majority of the work, e.g. cameras and machine studying, and can final tens of hundreds of program/erase cycles and deal with excessive temperatures. Some SSDs embrace pSLC partitions for higher lifespan and efficiency.
Not all SSDs have equal endurance. Selecting drives primarily based solely on price or pace could cause failures beneath heavy or harsh use. Server processors now have many extra cores, however reminiscence bandwidth lags behind. DDR5 reminiscence options treatment this with speeds starting from 4.8 to eight.4 GT/s—quicker than DDR4 by over 50%—giving elevated bandwidth per core whereas offering much more capability, vital for data-hungry workloads in upcoming functions: AI, 5G and IoT.
DDR5 modifications compatibility. Registered DIMMs (RDIMMs) and Unbuffered DIMMs (UDIMMs) have completely different pin layouts and will not be interchangeable. Supported by fashionable servers, DDR5 ECC RDIMMs are designed for error correction and reliability points.
Server reminiscence is available in three sorts: UDIMM, RDIMM, and Load Lowered DIMM (LRDIMM). UDIMMs ship alerts on to reminiscence chips, limiting capability and pace. RDIMMs buffer instructions and addresses, enhancing sign integrity and permitting larger capacities. LRDIMMs buffer information alerts, decreasing electrical load and enabling bigger capability with decrease energy.
Trendy computing calls for speedy developments in reminiscence know-how, from industrial and cloud programs to non-public units. With programs evolving in areas akin to AI, IoT, and automation, the pace, dependability, and flexibility of reminiscence necessities modifications. Efficiency, sturdiness, and effectivity are particularly addressed via ECC DRAM, industrial grade flash, and different embedded storages like eMMC and microSD. Each the flash storage and the superior reminiscence modules make sure the system stability and information integrity in varied settings. Some new requirements like pSLC flash and DDR5 appeal to customers, reminiscence will proceed to be a key enabler of next-generation computing.
