What for those who might change the final through-hole sensor in your board with one thing smaller, surface-mountable, and sensible? That’s precisely what Murata has pulled off with their miniature reflowable IR sensor — a game-changing passive infrared (PIR) gadget that mixes dimension, intelligence, and surface-mount comfort in a single deceptively small package deal.
The engineering staff at Murata created this sensor with fashionable product design in thoughts. Gone are the times of clunky leaded packages with cumbersome lenses protruding of your PCBA. This miniature reflowable IR sensor suits proper in along with your different surface-mount elements and goes by normal reflow soldering, no particular meeting required. Meaning easier manufacturing traces, quicker meeting, and a sleeker gadget.
One of many standout options of this Murata sensor is its extremely low Z-height. In comparison with conventional leaded PIR sensors, this one’s flatter and simpler to combine into ultra-slim merchandise. With its low-profile housing and compact footprint, the miniature reflowable IR sensor is right for wearables, sensible dwelling devices, and embedded gadgets the place each millimetre counts.
Nevertheless it’s not simply small — it’s sensible. This isn’t your typical analog PIR. The sensor helps a digital I²C interface, decreasing BOM complexity and making integration into MCUs a breeze. On prime of that, Murata has included configurable thresholds and window instances to scale back false detections and pointless wakeups. This makes the miniature reflowable IR sensor completely fitted to battery-powered movement detection functions.

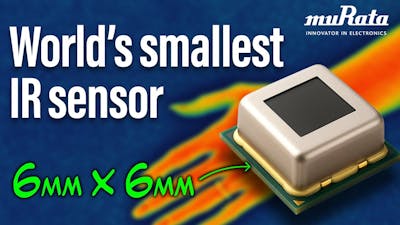

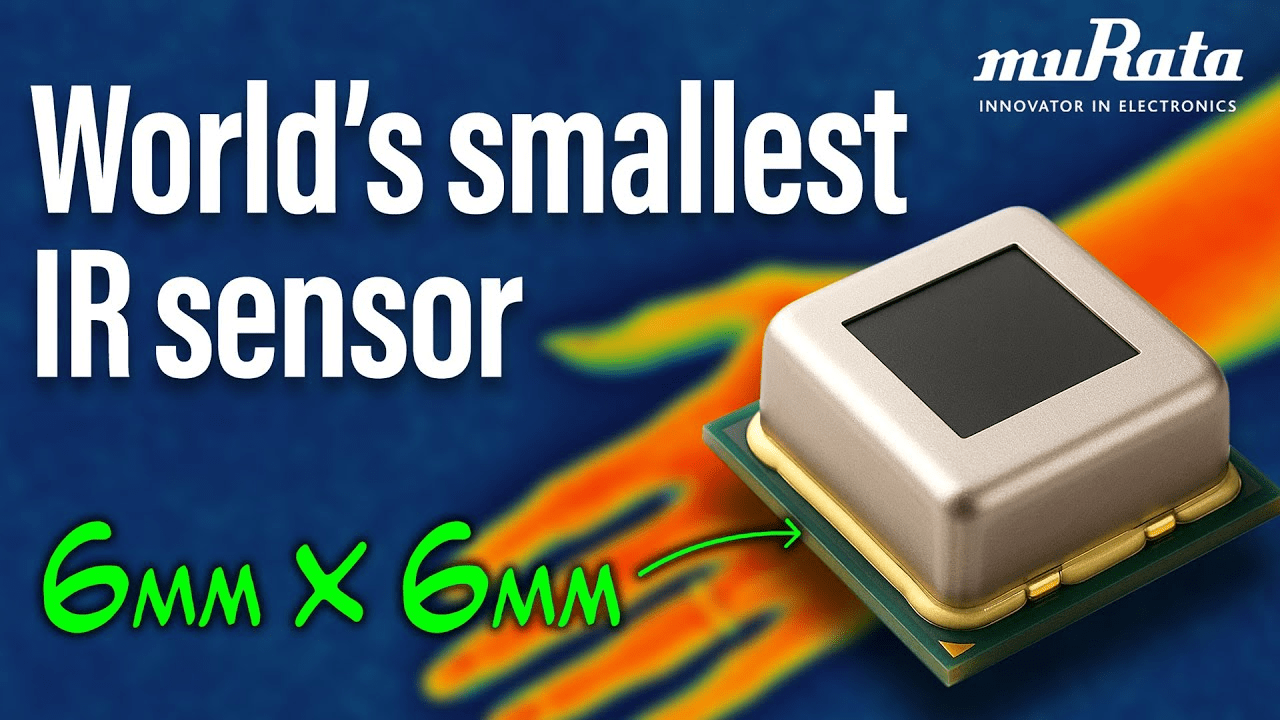

A small, low profile, and reflowable SMD kind and digital output product
One other concern with many PIR sensors is radio interference — one thing Murata engineers tackled head-on. They’ve rigorously examined this part towards 2.4 GHz and 5 GHz emissions, which means the miniature reflowable IR sensorcan sit near Bluetooth or Wi-Fi antennas with out false triggering. That’s an enormous win for compact IoT designs the place RF and sensors usually must reside facet by facet.
And for those who’re questioning the way it handles optics — sure, it nonetheless requires a lens, however Murata presents loads of design assist that can assist you decide or customise the precise one. Whether or not you’re focusing on short-range human presence detection or longer-range outside sensing, the miniature reflowable IR sensor may be tuned for the job.
This isn’t only a shrink-rayed PIR sensor. It’s a rethink of what movement detection needs to be in fashionable embedded designs. Due to Murata, engineers now have a better, smaller possibility that’s simply as comfy in a wise thermostat as it’s in a next-gen wearable.
Supply: ipXchange
