Cheap desktop 3D printing extrusion has at all times been an impactful potential ally to 3D Printing customers. Filabot and 3Devo have been attempting to make this a actuality for years, with Filabot specializing in cheap items (and now giant industrial ones) and 3Devo specializing in high-end lab items. Now a Massachusetts 16-year-old, Benjamin Callahan Davis, has thrown his hat within the ring by means of making a filament extruder and recycler.
Benjamin is off to an ideal begin in profitable the Regeneron Worldwide Science and Engineering Truthful (ISEF). He gained first place in Engineering Expertise: Statics & Dynamics, incomes $6,000 within the course of. He additionally obtained the Regeneron Younger Scientist Award, which earned him an extra $75,000. A pleasant haul; I ought to have thought tougher about my volcano science undertaking.
Benjamin has made a desktop recycling system that reportedly is 45% extra environment friendly than different programs. Benjamin’s system makes use of extrusion and pulltrusion in a low-cost setup that will help you produce filament, recycle waste, or restore failed prints. Now we pay $10 to $30 per kilo, which implies you could make 10 iPhone circumstances for $1 to $3 every. Now that’s tremendous good, but when we are able to make filament at house from granulate, that very same case would maybe price 30 cents. If we are able to use previous PETG water bottles, then the price of that very same case could be solely the hourly vitality price of the printer and recycling system, plus the preliminary funding in these programs.
This radical change might actually make industrial manufacturing and at-home printing far more economical and eco-friendly on the identical time. We might print issues for subsequent to nothing whereas making plastics last more. The know-how has been attainable for many years. Industrial recycling programs like these have additionally existed for years. You may’t recycle all the pieces on a regular basis, in fact. Additionally, we’d in all probability have so as to add 30% virgin materials together with the recycled materials to make it work. Supplies additionally can’t be recycled infinitely, as they lose properties each time they’re mechanically recycled. However, given the superabundance of plastic waste and the tens of millions of 3D Printers on the market, the potential is staggering.

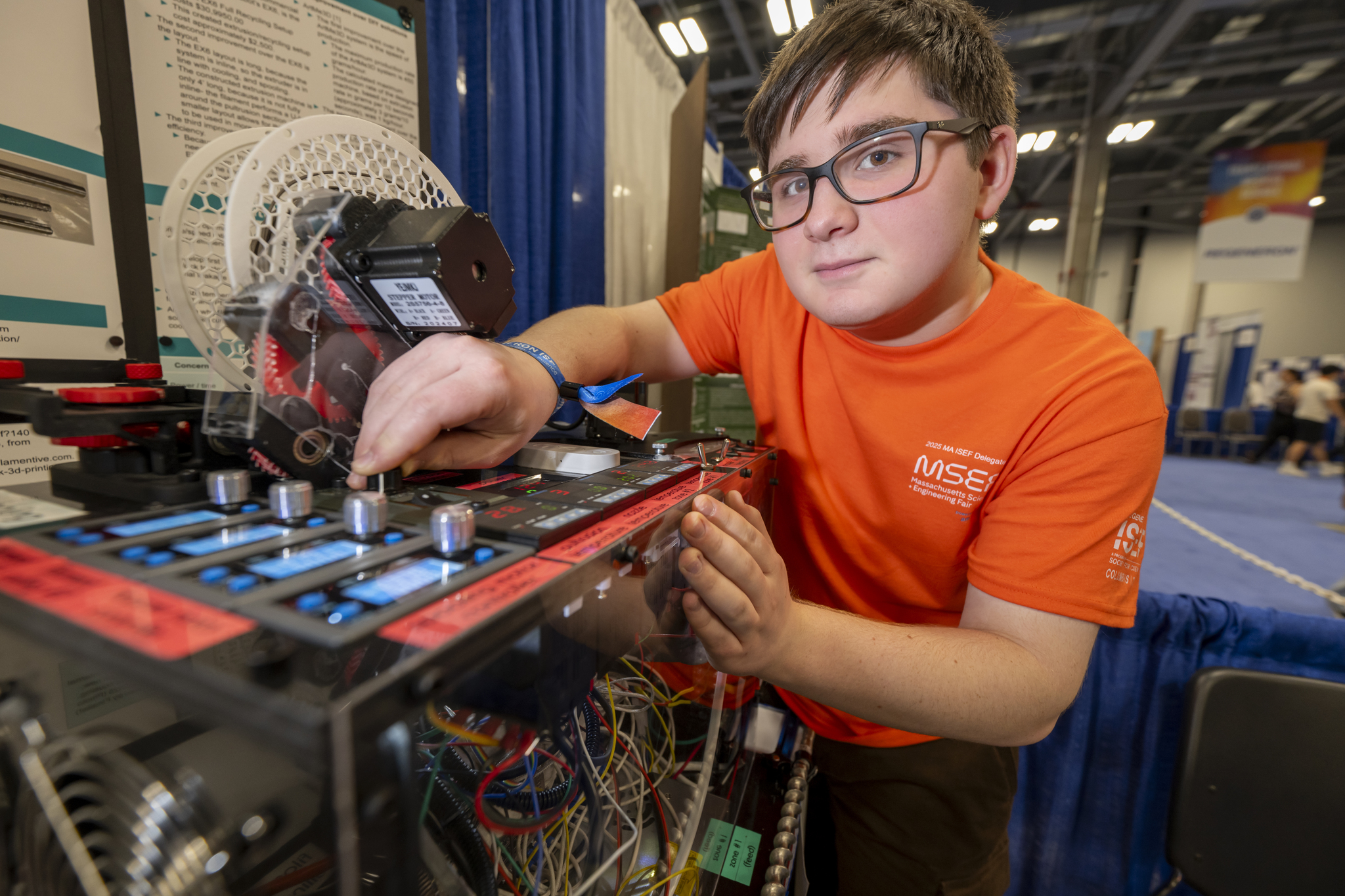

I reached out to Benjamin to search out out extra about his undertaking. Benjamin obtained his first 3D printer in fourth grade, and it warms my coronary heart realizing that youngsters are rising up with 3D printers these days. Via an aunt, he additionally developed a ardour for recycling, and this ardour, mixed together with his expertise, led him to create a recycling machine with a invoice of supplies (BOM) of $1,500. The overall price of the undertaking was $3000. The machine can now produce as much as one kilogram of filament per hour, however he believes that he can additional enhance its efficiency. Sooner or later, he hopes that in a extra business model, the elements might price round $1000. That will imply the machine could possibly be out there for round $3,000 or so. Benjamin is leaning in direction of making a business product from his extruder. His goal market is faculties. Presently, his tolerances are +/- 0.3 mm for extrusion alone and +/- 0.03 mm when utilizing each extrusion and pulltrusion. He has additionally examined shredded supplies in PET, PETG, and PLA.
One of the crucial intriguing issues about this machine is why the pull and push?
“Extrusion (pushing) is what’s required as a way to soften down the pellets/uncooked materials into filament as a result of it operates on the melting level of the polymer used. Pultrusion (pulling) is used afterwards as a way to draw down the diameter of the filament from 2.00 mm to 1.75 mm; to ensure that pultrusion to work the fabric should already be a filament. Pultrusion operates beneath the melting level of the polymer used; it softens the plastic as an alternative of melting it. That is wanted as a result of historically, when extruding filament out of shredded supplies, as a result of inconsistent granular dimension of the enter, the ensuing filament has poor tolerances. Then, this filament is pelletized (in the reduction of into small items) and re-extruded. This can be a very energy-intensive course of. Combining extrusion and pultrusion permits for the filament to be created at 2.00 mm with poor tolerances, then pulled right down to 1.75 mm with correct tolerances (
By skipping a step, Benjamin’s course of might skip a step or require rather a lot much less gear. The machine itself is much like others, however with some variations.
¨Firstly, the fabric to be recycled is ready by means of shredding and drying. Then, the ready materials enters the hopper of the machine, the place the compression auger feeds the supplies by means of 3 unbiased warmth/compression zones earlier than extruding out of the nozzle at 2.00mm. Subsequent, this rubbery, sizzling filament is fed by means of a water cooling system with filament pulling wheels on the finish to drag the filament at a relentless price of pace. After, the filament loops across the machine and enters the pultrusion nozzle, the place the filament is softened and pulled to 1.75mm. To chill the filament after pultrusion, an air cooling system is utilized, adopted by one other set of pulling wheels that present the drive essential to drag the filament by means of pultrusion. Lastly, the filament is spooled, after which it’s prepared to be used.¨
Three heating zones might allow you to dial in various completely different parameters and precisely dial in soften zone efficiency for lots of various supplies. Benjamin needed to iterate the machine over 50 occasions and spent over 800 hours on it. Probably the most troublesome element was manufacturing the compression auger, and he made that with “hand instruments, a drill press, or a band noticed.” Other than meeting, common testing was additionally a prolonged part. He examined over 50 completely different combos throughout completely different filaments and with settings in several heating zones. One factor that he discovered is that his mixed course of additionally produced much less particulate matter than separate extrusion and reextrusion processes.
I really like this undertaking and hope that Benjamin turns it right into a business product. Thus far, extrusion and recycling applied sciences have been broadly out there for changing waste, recycled bottles, and previous 3D-printed elements into filament. The potential of this improvement might revolutionize your entire 3D Printing business, enabling us to create issues extra effectively and cost-effectively. However, to this point, nobody has managed to promote tens of millions of recycling items, although we’re promoting tens of tens of millions of 3D printers. Maybe with this setup, Benjamin can produce a product that revolutionizes 3D printing, enabling us all to securely recycle at house.
Photos courtesy of Benjamin Callahan Davis.
