Each fanatic who enjoys making iconic fashions and figures from resin and filament makes use of 3D printing slicer software program. UltiMaker Cura is without doubt one of the hottest slicers, providing quite a few nice options for each newbies and superior hobbyists. Whereas each challenge you create could look just like the unique information on the surface, it’s what’s inside that issues for its stability and long-lasting high quality. Let’s focus on the perfect infill sample in Cura that may allow you to create the strongest fashions or obtain the quickest printing speeds.
Gambody reviewed the hottest infill sorts prior to now, providing you a basic concept of essentially the most generally used patterns. On this publish, we wish to give attention to UltiMaker Cura settings and how one can profit from this specific slicer software program.
Finest Infill Sample in Cura
Many 3D printing fashions and characters have hole components inside as a result of they save time, materials, and general price, in addition to cut back the load of your challenge. This ‘inside’ construction is named infill, and Cura permits you to use a number of infill patterns to make your components stronger, weaker, roughly strong, and easier or extra complicated.
You’ll be able to handle your Cura infill patterns by the density settings (contemplate 100% strong and 0% hole) and structural changes (sorts). Every setting gives distinctive resilience and particular benefits, which might improve the advantages of your prints in response to the specs you have got chosen.
Earlier than we focus on the quickest and strongest infill sample, let’s give attention to the perfect infill sample that Cura gives to hobbyists, contemplating their expectations. With over 10 commonplace sorts and quite a few customized choices to pick from, yow will discover your ideally suited setting by experimenting.
Learn additionally: Finest Low-cost 3D Printer for a Newbie (Inexpensive But with Nice Worth).
Infill Sorts
UltiMaker Cura slicer gives commonplace infill patterns and customised choices. The usual sorts you’ll see are:
- Zigzag;
- Lightning;
- Traces;
- Triangles;
- Grid;
- Tri-hexagon;
- Cubic;
- Octet;
- Quarter cubic;
- Cubic subdivision;
- Gyroid;
- Cross;
- Concentric;
- Cross 3D.
These 14 Cura infill patterns are perfect for numerous tasks, starting from 3D printing figures to complicated spacecraft fashions and useful components, and extra. Whereas the usual sorts don’t embrace the favored Honeycomb possibility provided by different slicers, you may generate it if you want, utilizing an exterior plugin.
Strongest Infill Sample

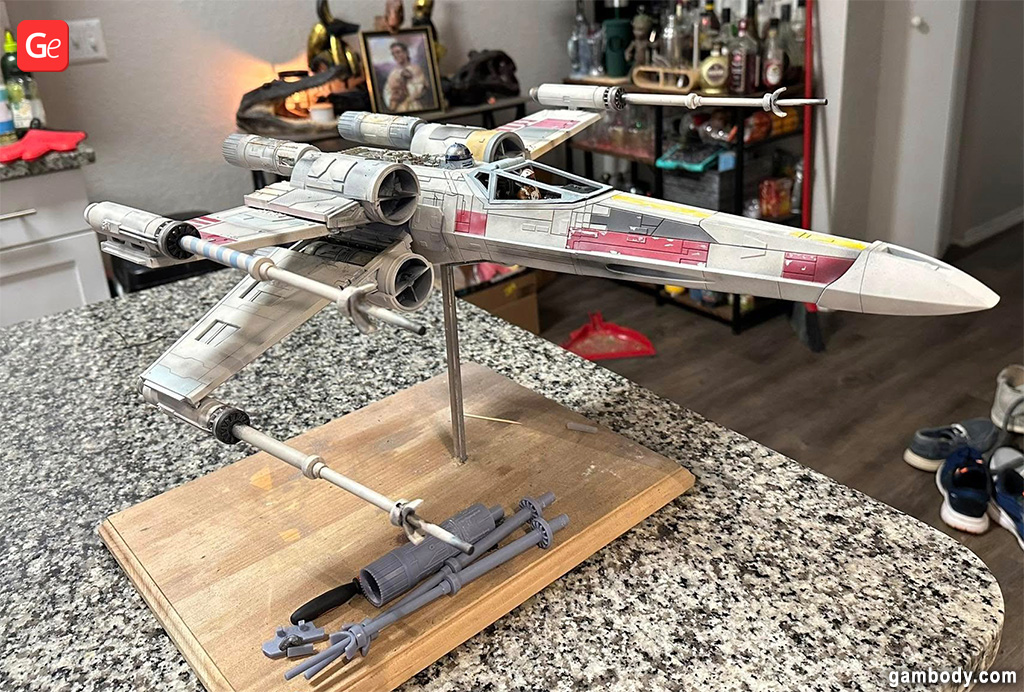

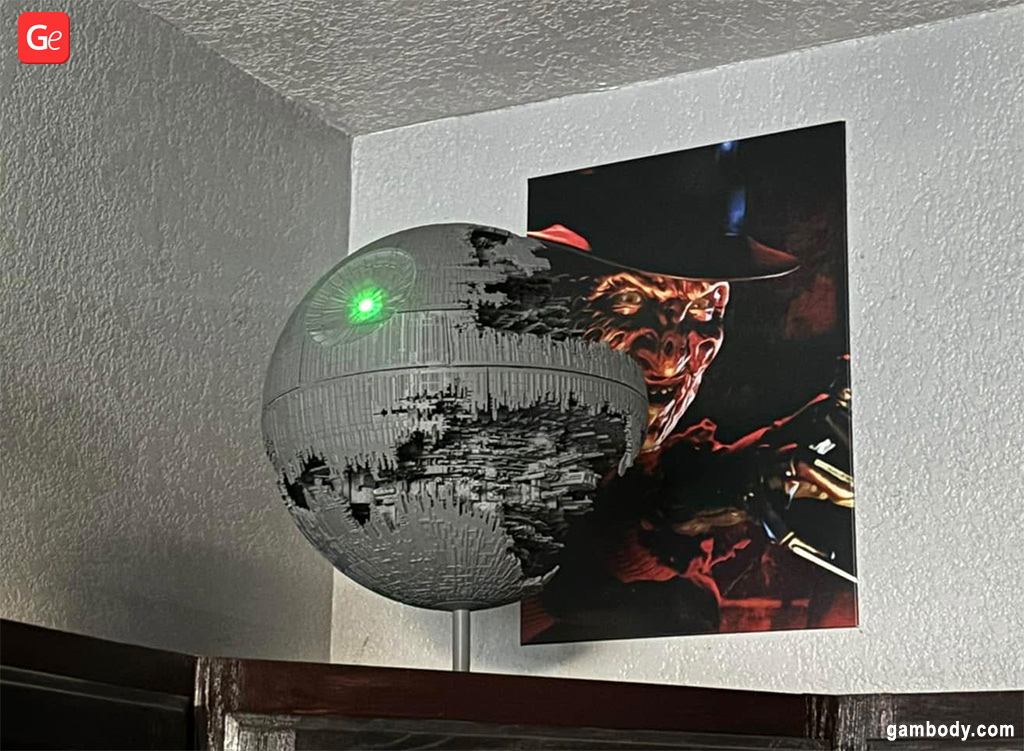

Most 3D printing figures and fashions don’t require power. Thus, if you recreate your favourite character 3D mannequin, Pirates of the Caribbean ships, spacecraft from Star Trek or Star Wars, and related tasks, you don’t want to make use of the strongest infill sample.

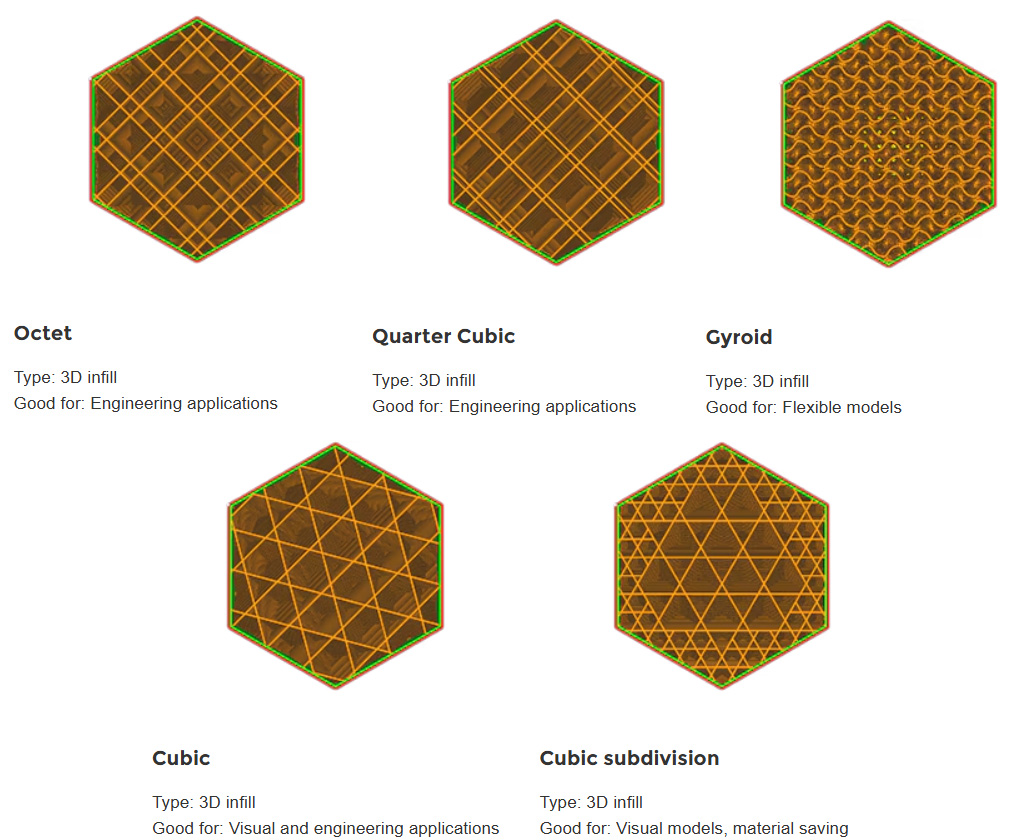

Nevertheless, for those who print useful components that require additional power (resembling shelving brackets or different objects that ought to maintain 45-50 kilos), you must choose one of many following 3D print infill patterns with an infill density of over 50%: octet, gyroid, or one of many cubic choices.
Customers who need to construct a robust half can select the cubic infill sample, which creates a 3D form of tilted and stacked cubes. If you wish to use much less materials, contemplate the cubic subdivision possibility, which has similarities to the cubic infill.
Two related patterns, octet and quarter cubic, are additionally referred to as tetrahedral infill in Cura. The primary one creates pyramid shapes inside the article. The second is way alike, with half of these shapes shifted in relation to the opposite half.
Gyroid is one other model to make use of if you want the strongest infill sample. It reminds hobbyists of waves that present power in quite a few instructions, and is ideal for components that might expertise fixed stress.
Quickest Infill Sample
If cubic infill is without doubt one of the strongest patterns provided by Cura slicer, then what’s the quickest infill sample that may prevent money and time?

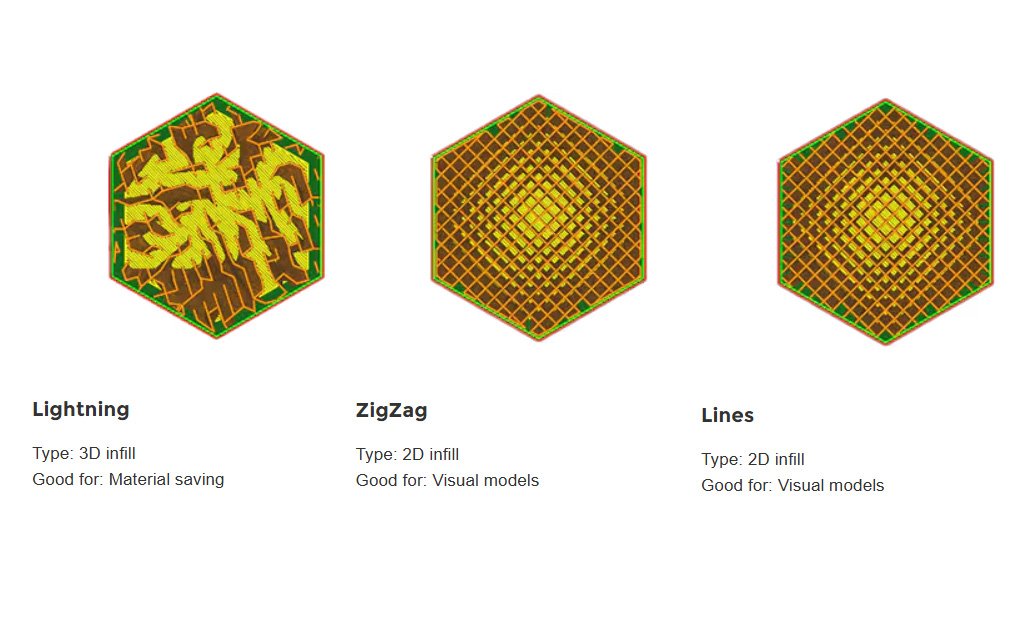

With a density between 0 and 15%, this feature is taken into account the perfect infill sample for velocity. We’re speaking in regards to the three settings (zigzag, lightning, and contours), which don’t supply quite a lot of power or stress-handling capabilities, however do prevent money and time.
Gambody lovers can make the most of the quickest infill sample for creating any 3D print challenge concepts from the premium and inventory sections, as all these stunning 3D printing figures and fashions are designed for show and don’t require heavy dealing with or extreme power.
Whilst you received’t discover the rectilinear infill Cura characteristic in commonplace patterns (different slicers supply it), you should use traces to attain an identical 2D-grid impact inside your tasks. With traces, you may print one axis per layer.
An identical impact is achieved with a zigzag sample that creates one line per layer.
The third possibility you may select is a lightning infill sample, which might prevent a big period of time and materials, because it creates a lightning-like internal construction that turns into thicker because it reaches the highest of your challenge. That is the quickest infill sample in Cura, a lot quicker than traces or zigzag.
Learn how to Attain Higher Velocity?
Fans who want to create stronger 3D prints with out selecting the quickest infill sample can enhance printing speeds in a number of methods. Firstly, you may alter the UltiMaker Cura settings to extend the thickness of your layer peak, which saves time. Secondly, you may set up the Valve plugin, which helps obtain quicker speeds inside the printer’s movement price.
In addition to, you may customise the sample by Experimental Settings, resembling Infill Journey Optimization. When checked, this feature minimizes the gap your nozzle strikes by altering the order wherein the infills are printed. Nevertheless, it solely depends upon your object geometry and doesn’t assure velocity enchancment.
Different Infill Patterns for 3D Printing
Should you don’t must print quicker and your tasks will not be subjected to a lot stress, you may select the usual Cura infill patterns, which have densities starting from 15 to 50%.

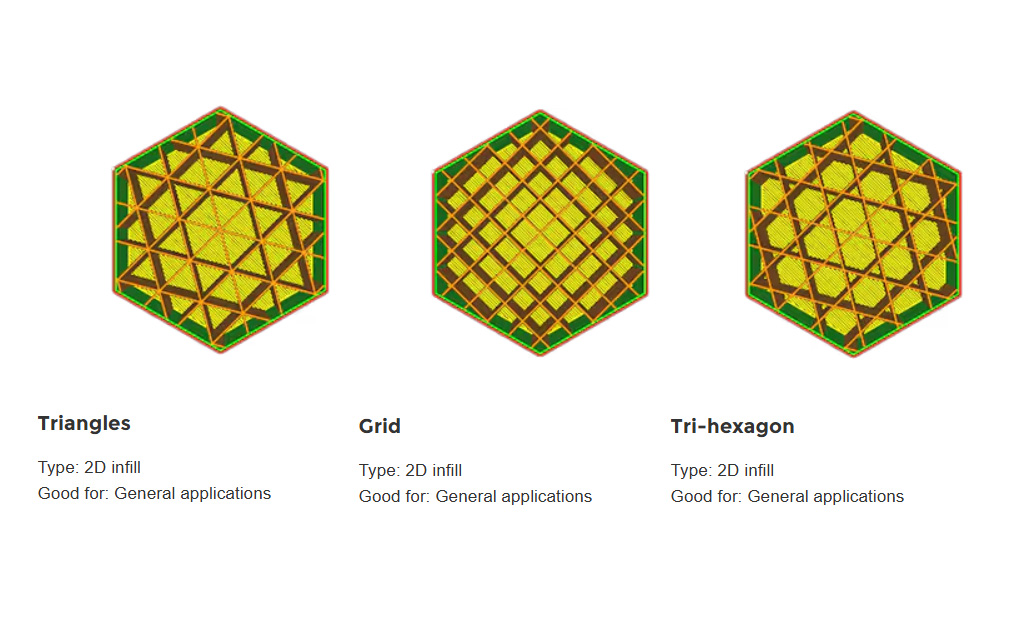

Your choices are triangles, grid, and tri hexagon. The triangle infill creates a 2D triangle mesh that may be useful for those who apply a load perpendicular to your mannequin’s face. Grid additionally creates a 2D impact, and it’s the quickest and easiest of those three choices. The tri hexagon infill incorporates triangles and hexagons to create a well-structured form that gives adequate power in comparison with grids and triangles.

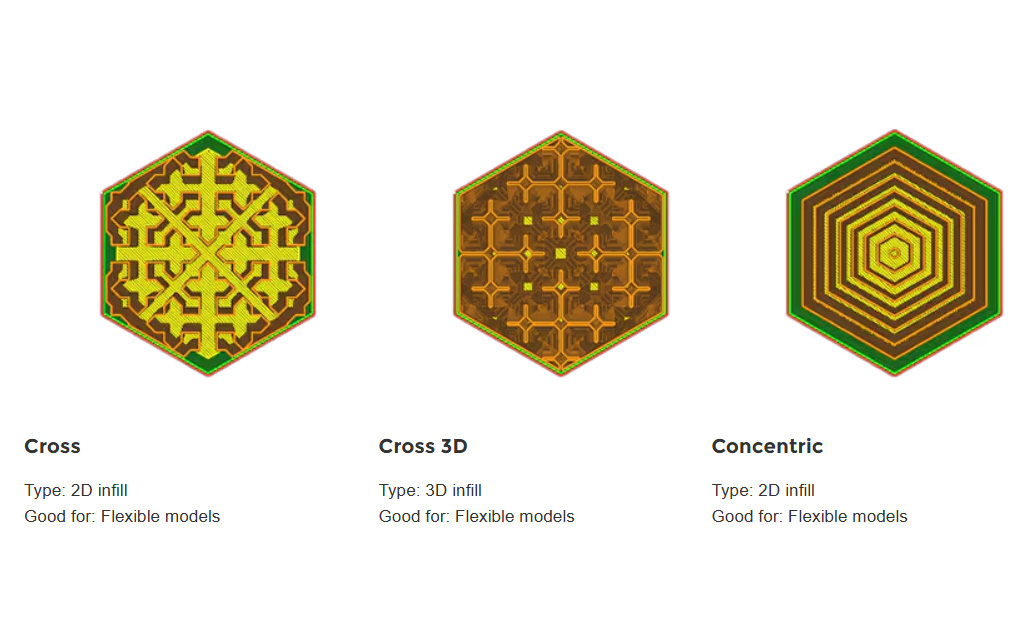

For bending objects and versatile components resembling wheels and sails, it may be fantastic to make use of cross and concentric infill patterns provided by Cura. The density can vary from 0 to 100%, relying on how versatile you want the components to be.
The cross and cross 3D infill patterns are related. Nevertheless, the primary one creates a 2D impact with sufficient house between crosses to permit the article to twist and bend, and the second gives a 3D impact with much less flexibility. The concentric infill sample creates 2D round waves, that are good for cylindrical and curved surfaces.
Learn additionally: Learn how to 3D Print Versatile Filament at Dwelling (Ideas for Success).
Customized Patterns
When you have the most recent Cura model 5.10, you may experiment with infill patterns and add additional options that aren’t obtainable as commonplace choices. For instance, for those who take pleasure in utilizing the Honeycomb in PrusaSlicer, you may create an identical impact utilizing a customized plugin referred to as CuraEngine Tiled Infill Technology. It’s regularly up to date and improved to handle any identified points, permitting you to play with its options and see how one can profit from its use.
Together with Honeycomb, this plugin permits you to add your customized patterns that correspond together with your 3D printing wants and necessities.
What’s the strongest infill sample in Cura?
Cubic infill in Cura is taken into account the strongest infill sample, appropriate for useful components and particulars. The opposite greatest selections for power are the cubic subdivision infill, octet infill, gyroid, cubic, and quarter cubic choices.
What’s the greatest infill sample for 3D printing?
The reply to this query relies upon solely on the character 3D mannequin, challenge, or half you might be at the moment 3D printing. Use the cubic infill sample for useful objects. Choose concentric infill or cross 3D infill to create versatile components, resembling automobile wheels. Use tri hexagon infill for something in addition to characters and movie-inspired fashions, for those who don’t want an excessive amount of power.
What’s the greatest infill sample for velocity?
Hobbyists preferring quicker 3D printing speeds over power can go for a minimal density of as much as 15%, which could be achieved with the only Cura infill patterns, resembling traces, lightning, and zigzag. These selections are good for recreating your favourite 3D printing figures from comics, cartoons, motion pictures, and video video games.
To seek out your greatest infill sample in Cura and different slicers, it’s ideally suited to experiment and take a look at completely different 3D prints. Preserve constructing incredible 3D printed figures and fashions, and share the pictures and ideas with different lovers in Gambody group on Fb.
