In wi-fi product growth, how do you choose the suitable communication applied sciences, from figuring out the particular {hardware} and software program to delivering the completed product?
How do you outline a profitable product? There are technologically nice merchandise that fail to compete out there. Why? As a result of these applied sciences don’t perceive the heartbeat of the market. Some product failures may be averted by higher design and thru intensive testing.
The secret is to determine the issue first after which slim it right down to the know-how that may handle it.
Product Improvement Stage 1: Part Choice

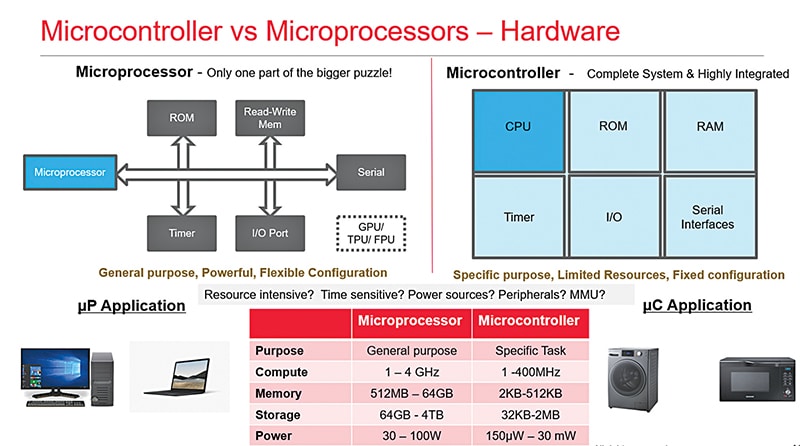

The primary crucial determination in embedded product design is deciding on the suitable processing unit: the suitable microprocessor unit (MPU) or the suitable microcontroller unit (MCU).
MPUs, generally present in laptops and general-purpose programs, supply excessive flexibility and efficiency however require exterior parts, corresponding to RAM, ROM, and storage, to attain full system performance. These programs are extremely versatile for parallel processing of a number of threads. The computing pace is considerably increased than that of MCUs, due to their built-in reminiscence administration items, which facilitate reminiscence handle translation for internet hosting working programs like Linux or Home windows.
MCUs, or microcontroller items, are extremely built-in. All the things is packed right into a single chip. They’re constructed for devoted duties with real-time constraints, providing predictable, low-latency efficiency. For purposes corresponding to automotive airbags, the place each millisecond counts, MCUs paired with real-time working programs are important. The selection finally hinges on useful resource calls for, timing sensitivity, and system complexity.
Verify the comparability between Microcontroller and Microprocessor.
Stage 2: Choosing the Proper Wi-fi Know-how
After deciding on the required MPU or MCU, choosing the proper wi-fi know-how stays one of many trickier calls, as there’s a plethora of choices in embedded system design.
When selecting, three main components matter: vary, information fee, and energy constraints. The required transmission distance, the quantity and pace of information, and whether or not the machine is battery-operated or powered by the mains are all basic issues.
Past these, further components embody licensed versus unlicensed spectrum, community topology, and localisation accuracy or proximity-based purposes, that are very important for asset monitoring.
For example, low-power large space networks, able to transmitting tiny quantities of information over lengthy distances, are useful for distant IoT deployments and may run on a battery.
In distinction, short-range applied sciences like Wi-Fi and Bluetooth, usually present in smartphones and shopper gadgets, ship increased information charges however are restricted in vary and are extra power-hungry, falling underneath what’s termed a private space community.
The Wi-fi Buffet: System-on-chip
The place to begin for wi-fi product integration usually begins with a system-on-chip (SoC), which integrates the wi-fi transceiver, reminiscence, and typically a GPU and NPU right into a single block. SoCs may be derived from both microcontrollers or microprocessors and are notably advantageous in space-constrained designs.
The important thing trade-off right here is effectivity versus flexibility. SoCs supply streamlined integration and energy effectivity however restrict customisation.

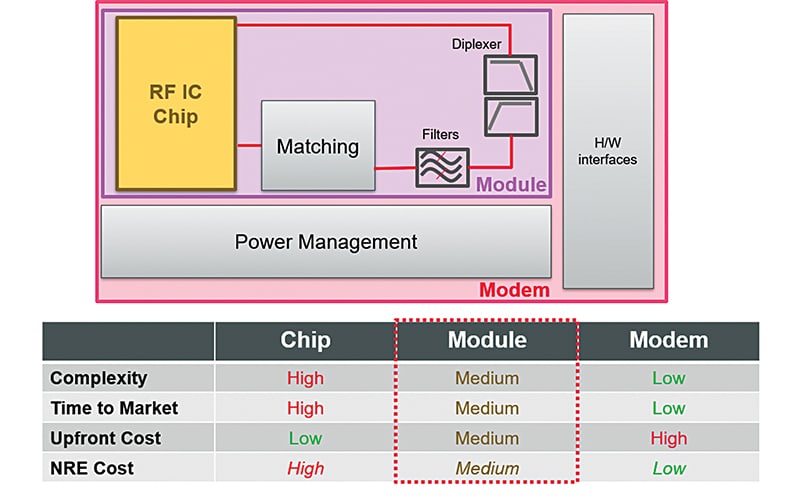

For purposes demanding extra flexibility, designers could flip to exterior wi-fi companion chips. These permit the MCU or MPU to be paired with a discrete wi-fi module. Some choices are:
- RF ICs (radio frequency built-in circuits) supply uncooked radio performance however require customized front-end design for matching, filtering, and antenna integration. RF ICs can’t be immediately used on any PCB and subsequently want correct front-end design.
- Modules simplify integration by embedding each the RF IC and the required front-end circuitry. These are perfect for mid-volume manufacturing, balancing design management with ease of use.

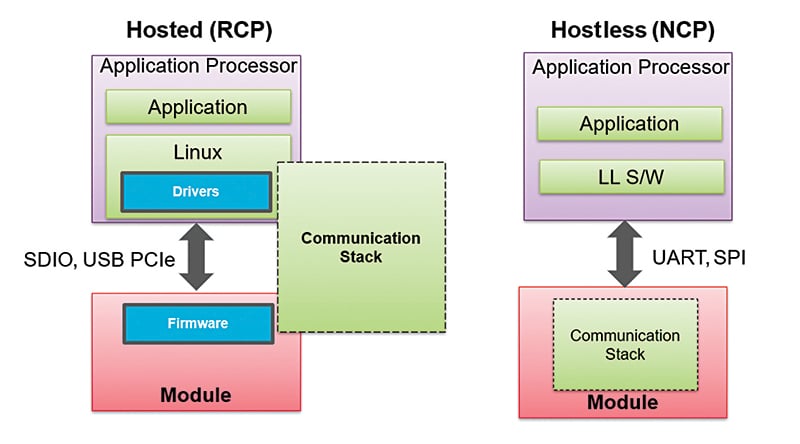

Host vs Hostless Structure
