Humanoid robots are stealing many of the headlines with their acrobatics and ever-increasing sophistication, however they could not show to be essentially the most helpful varieties of robots sooner or later. Replicating what we will do may be very precious, after all, however what about all the issues that we may by no means do? Think about a robotic that would crawl by an individual’s veins to offer noninvasive medical therapies, or one that would slither by a jet engine to ensure it’s prepared for its subsequent flight, as an example.
However regardless of the worth that such a robotic may present, nothing able to these duties has been developed — at the very least nothing that will be sensible for real-world use, anyway. These robots not solely have to be tiny, however additionally they have to be agile and versatile. That mixture of traits has confirmed to be too difficult to construct right into a robotic utilizing the applied sciences obtainable immediately.
Slithering by a mannequin of a jet engine (📷: David Baillot / UCSD Jacobs College of Engineering)
That will change within the close to future, nevertheless. A gaggle of engineers on the College of California, San Diego has created a novel robotic pores and skin only a few millimeters in width that may slither by extraordinarily tight areas. The addition of a intelligent management mechanism permits this method to be steered, and it could possibly make turns of greater than 100 levels to wiggle its means by even very advanced constructions.
The group used their synthetic pores and skin to create tender vine robots that may transfer and steer with out inflexible elements. The robots develop by turning themselves inside out from the tip — just like how a sock unrolls — permitting them to increase with out dragging their our bodies throughout surrounding surfaces. This distinctive type of motion minimizes friction and makes them preferrred for navigating delicate environments akin to arteries or fragile equipment.
Till now, nevertheless, steering these tender vine robots has been a serious impediment. Typical designs may develop ahead however had restricted means to bend or maneuver by winding paths. To beat this, the group built-in a collection of ultra-thin actuators constituted of liquid crystal elastomer (LCE) into the robotic’s pores and skin. These supplies contract when heated, offering highly effective but versatile movement at a small scale.
Every LCE actuator is paired with a versatile heater that raises its temperature utilizing a small electrical present. When one facet of the robotic’s physique heats up and contracts, it bends in that course. By embedding a number of pairs of heaters and actuators across the circumference and alongside the size of the robotic, the researchers can steer it in a number of instructions, reaching advanced curvatures and turns.
The robotic’s movement is managed by a mixture of inside air strain and actuator temperature. Adjusting the strain adjustments the robotic’s stiffness; larger strain retains it straight and inflexible, whereas decrease strain permits extra bending. In the meantime, controlling the actuator temperature fine-tunes the diploma of curvature. The group discovered that combining each components in a hybrid management scheme offered one of the best precision and responsiveness.

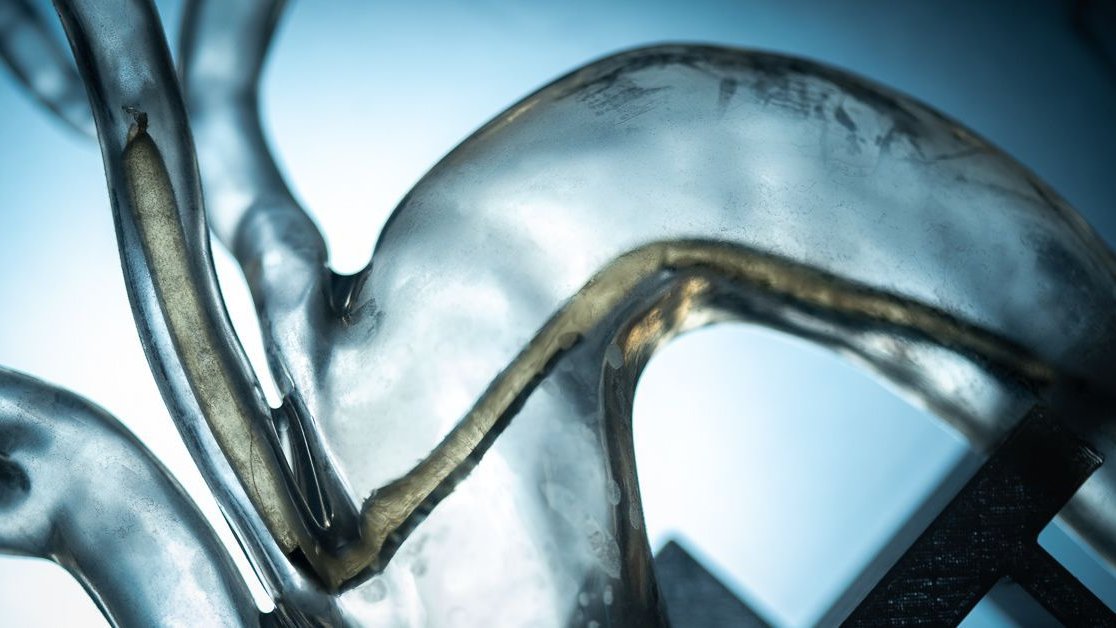

In laboratory assessments, the researchers constructed vine robots between 3 and seven millimeters in diameter and about 25 centimeters in size. Regardless of their small measurement, these robots may make sharp turns exceeding 100 levels and squeeze by gaps half their very own diameter. One robotic even navigated a mannequin of the human aorta and connecting arteries, demonstrating its potential for future medical procedures. One other explored the inside of a jet engine mannequin, exhibiting promise to be used in industrial inspections the place conventional instruments can’t attain.
Future work will deal with miniaturizing the system even additional and enabling distant or autonomous management. With these enhancements, these tiny, steerable vine robots may quickly discover environments as soon as thought just about inaccessible.
