Pc-aided design startup Splice has launched a browser-based software that makes it simpler to attach issues to different issues — by permitting you to design your personal cable harnesses, connectors, and even multi-core cables.
“Splice is a web-based harness configurator that allows easy graphical design and documentation of cable assemblies,” the corporate explains of its eponymous creation. “Design full cable harnesses with our drag-and-drop interface. Place connectors, route wires and cables, assign indicators, and generate documentation. Create a customized connector when an element is not in our library. Design the connector define and add pins to match your half. Leverage our template library to make use of frequent outlines and layouts. Outline multi-core cables to your harness designs. Specify conductor properties, insulation, and jacket supplies.”

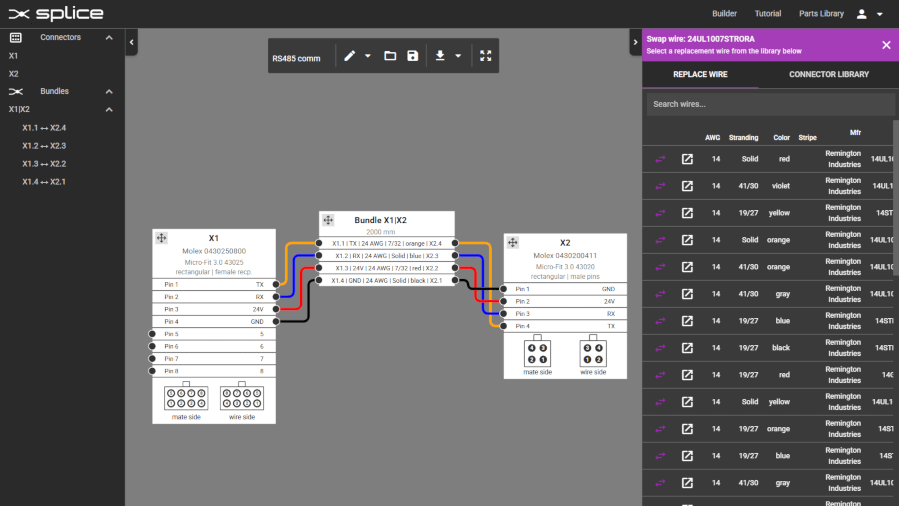

As the corporate says, the software is break up into three core design flows. The primary is the “harness builder,” which gives an SVG canvas into which elements from the Splice library could be inserted after which wired collectively. There’s good wire routing, the power to generate a invoice of supplies (BOM), and export choices together with diagrams and engineering drawings.
The place a desired connector kind is not featured within the built-in elements library, the second move can be utilized: the “connector creator.” This, as you’d anticipate, enables you to design a connector’s define, shell, and housing, add numbered pins, after which use it within the harness builder — with a library of templates included to get you began. Lastly, the cable creator enables you to select from a variety of multi-core cables, tweaking their conductors, insulation, and jackets to seek out precisely what you want.
On the time of writing, the service included predefined elements from JST, Molex, Samtec, Tensility Worldwide, and TE Connectivity, with guarantees that extra will comply with within the close to future. The platform contains fuzzy search and filtering choices to floor the elements you want, and designs are dealt with with model management to permit simple rollback to earlier revisions.
Splice is out there on the official web site now, with a tutorial to get you began.
