Constructing {hardware} for house will not be straightforward. It must be gentle, robust, and able to surviving excessive environments, just like the bitter chilly and vacuum of house. Now, a South Korean analysis group has 3D printed a big titanium tank, then put it by means of an excessive take a look at. First, they froze it to -320.8°F or -196 °C (that’s greater than twice as chilly because the coldest temperature ever recorded in Antarctica). Then, they pressurized it to over 300 occasions regular atmospheric strain. And it held up very well.
This marks what is probably going the world’s first profitable cryogenic strain take a look at of a 3D printed titanium tank, and it’s a serious step that might impression how future spacecraft are constructed.
A First for AM in House {Hardware}
The tank was made utilizing laser-wire Directed Power Deposition (DED) and Ti-6Al-4V, a powerful and light-weight titanium alloy that’s typically utilized in aerospace and medical functions. The researchers printed two titanium hemispheres individually, handled and machined them for precision, then welded them collectively to create a single spherical strain vessel.
Creating a component like this the normal method would require costly forging gear and plenty of machining. As a substitute, DED 3D printing reduces time and materials waste. That makes it not solely quicker and cheaper, but additionally simpler to customise for particular missions.
Nonetheless, regardless of rising curiosity in AM, using 3D printed metallic components in house methods has raised issues about their reliability, significantly underneath excessive situations corresponding to excessive strain and cryogenic temperatures. That’s the reason this profitable take a look at is so vital. It helps present that 3D printing can produce parts that meet, and even exceed, the robust requirements of house functions.
Behind this breakthrough is a group of South Korean researchers working throughout business, academia, and authorities. The challenge was a collaboration between the Korea Institute of Industrial Expertise (KITECH), which led the additive manufacturing (AM) course of, and the Korea Aerospace Analysis Institute (KARI), which dealt with the cryogenic testing, together with KP Aero Industries, AM Options, and Hanyang College.
Fabricated and examined a Ti-6Al-4V tank with researchers concerned within the growth challenge. Picture courtesy of KITECH.
Placing the Tank to the Check
As soon as assembled, the tank underwent a number of rounds of high quality checks. Actual-time monitoring throughout the construct helped make sure the geometry and construction have been strong. Non-destructive analysis (NDE) confirmed that there have been no defects hiding beneath the floor.
Then got here the actual problem: cryogenic testing. Beneath KARI’s supervision, the tank was cooled with liquid nitrogen to –196°C and pressurized to 330 bar, far above its regular working restrict of 220 bar. That’s a normal security margin in aerospace, and the tank handed with out difficulty.
Sensors recorded pressure and temperature knowledge throughout the take a look at, and all the things confirmed the group’s structural simulations. So mainly, the tank carried out precisely as anticipated.

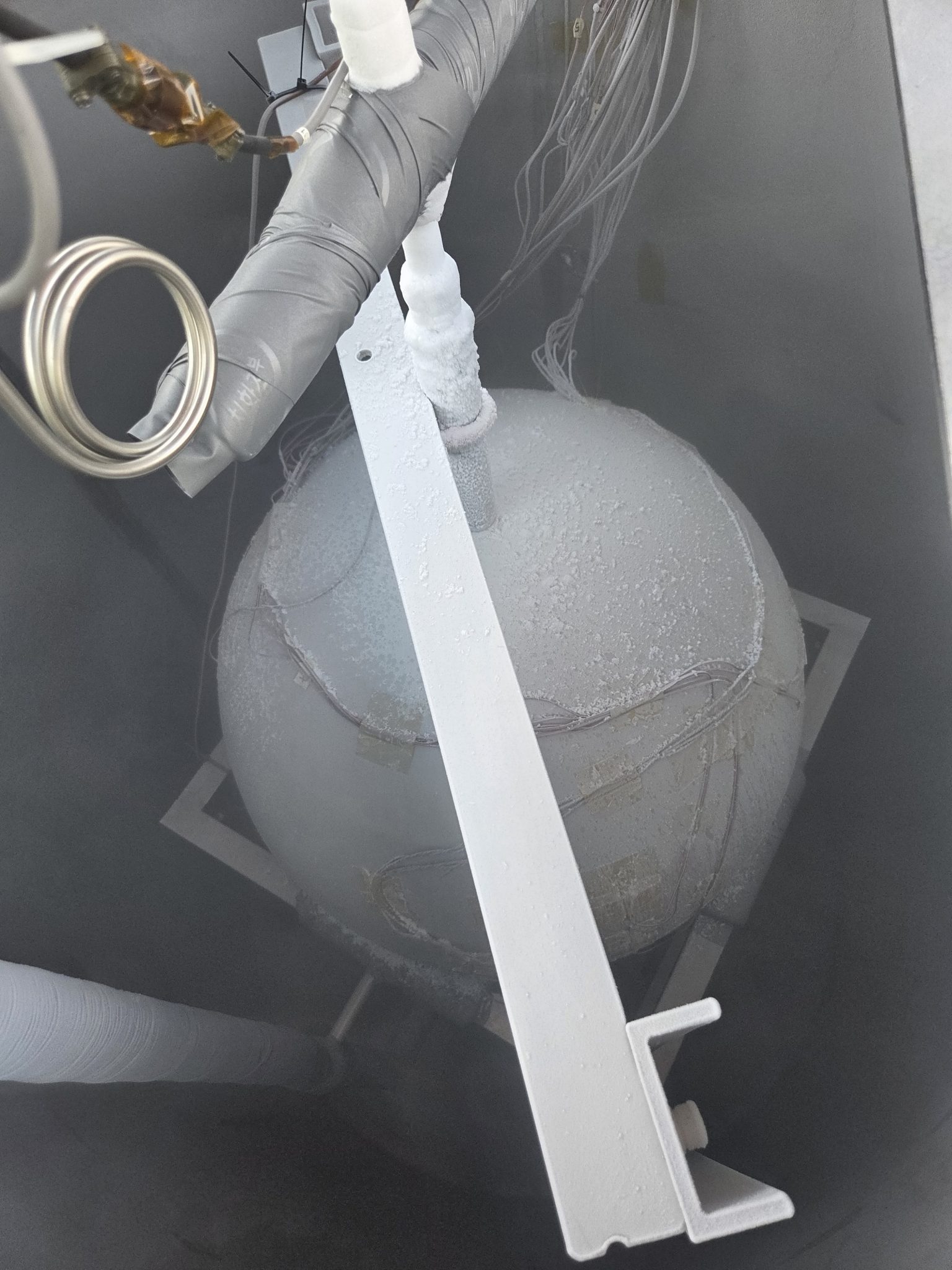

Cryogenic strain testing of the high-pressure vessel in progress. Picture courtesy of KITECH.
A Step Towards Business House Use
Dr. Hyub Lee, the principal researcher at KITECH who oversaw the event, stated, “This achievement proves that additive manufacturing know-how is able to assembly the intense efficiency necessities demanded by house missions, opening new prospects for aerospace element manufacturing.”
The group now plans to proceed with extra testing and work with business house corporations to carry the know-how to market. If profitable, this methodology could possibly be used to supply strain tanks for satellites, launch autos, and even crewed spacecraft.
As house missions grow to be extra frequent, there will probably be a rising demand for quicker, less expensive methods to construct mission-critical {hardware}. In truth, the profitable take a look at of a 3D printed titanium tank underneath cryogenic and high-pressure situations factors to AM’s functionality to supply the parts wanted by the house business.
