The module provides many connection choices, making it appropriate for sensible gadgets, industrial instruments, and IoT initiatives. Learn on.
MYIR has launched an embedded computing resolution — the MYC-LMX91 System-on-Module (SoM), constructed round NXP’s power-efficient i.MX 91 processor. The compact, high-performance module is absolutely pin-compatible with MYIR’s current i.MX93 sequence, permitting prospects to scale their designs with out requiring any {hardware} redesigns.
The SoM is designed for embedded system builders, OEMs, and resolution suppliers throughout industries akin to industrial automation, sensible dwelling and constructing management, medical gadgets, and IoT. It’s particularly well-suited for engineers and product designers who require a compact, energy-efficient, and scalable computing platform with wealthy peripheral assist.
Designed to run the Linux working system, the SoC is well-suited for purposes akin to EV charging stations, human-machine interfaces (HMIs), sensible dwelling and constructing automation, industrial gateways, and medical platforms.

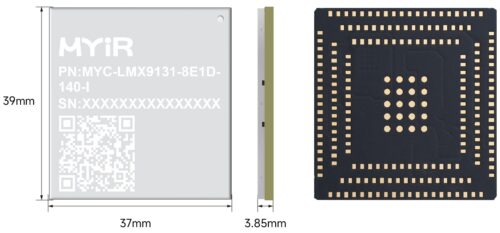

Measuring simply 37mm x 39mm, the SoM options the Cortex-A55-based i.MX 91 MPU, and integrates 1GB LPDDR4 RAM, 8GB eMMC storage, 32KB EEPROM, and a devoted Energy Administration IC (PMIC). This configuration gives a dependable and space-efficient platform appropriate for a variety of embedded purposes.
To maximise the capabilities of the SoC, the module helps an in depth set of peripherals by its 218-pin LGA enlargement interface. Key interfaces embrace 2x USB 2.0, 2x Gigabit Ethernet, 2x CAN-FD, 8x UART, 8x SPI, and RGB show assist, enabling versatile integration into varied embedded methods.
The Improvement Board is a versatile and feature-rich platform designed for speedy prototyping and analysis, centered across the highly effective SoM. It provides a complete set of connectivity and enlargement choices, together with twin Gigabit Ethernet ports, an M.2 B-Key socket for 4G/5G mobile modules, onboard WiFi, an RGB show interface, audio enter/output, two USB 2.0 host ports, one USB OTG port, and a Micro SD card slot.
Tailor-made for industrial purposes, theSoM gives sturdy interface choices akin to CAN, RS485, and RS232 communications by way of sturdy Phoenix terminals. It additionally features a JTAG debug interface and ADC inputs, making it appropriate for improvement in demanding environments.
