It scrubs! It shines! And if engineers at Northeastern College have their manner, SCCRUB would be the solely brush you will ever must make your private home sparkle like new! No, SCCRUB shouldn’t be a gimmicky gadget from a Nineteen Nineties infomercial. It’s a robotic arm that was designed to automate family chores. Family robots, other than vacuums and mops, have but to actually materialize, so the group determined to focus their consideration on a very disagreeable job to assist transfer the sector ahead — scrubbing.
SCCRUB , or Floor Cleansing Compliant Robotic Using Bristles, is a smooth robotic arm able to deep-cleaning surfaces by delivering each stress and torque, that are two of an important substances for eradicating sticky, greasy, or burnt-on messes. In contrast to conventional inflexible robots that threat harm or injury in areas shared with folks, SCCRUB combines energy with security, making it superb for house environments.
The robotic options what are known as torsionally inflexible common couplings (TRUNC) cells, which permit the arm to bend and flex whereas nonetheless transmitting rotational pressure. This permits it to press firmly into surfaces, very like a human arm, with out sacrificing security or management. By chaining and nesting these TRUNC cells, the researchers created an arm that’s light-weight, compliant, and able to delivering torque akin to a hand drill.
To transform that torque into cleansing motion, SCCRUB makes use of a specifically designed counter-rotating brush head. The group constructed a customized planetary gearbox that splits a single motor enter into two opposing brush rotations. This intelligent mechanism drastically reduces the response second (that’s, the pressure that pushes again towards the robotic when it scrubs) by 85% in comparison with a regular unidirectional brush. That discount permits SCCRUB to use extra stress with out compromising stability or management.
To manage this versatile arm, the group educated a neural community to be taught the robotic’s inverse kinematics and elasticity. The controller plans trajectories primarily based on the forces concerned, enabling open-loop management of each place and stress. Throughout testing, SCCRUB demonstrated spectacular effectiveness, cleansing 99.7% of contaminants like burnt ketchup on a plate and sticky blueberry preserves from a rest room seat. That is effectively past the 47.1% achieved by wetting and rinsing alone.

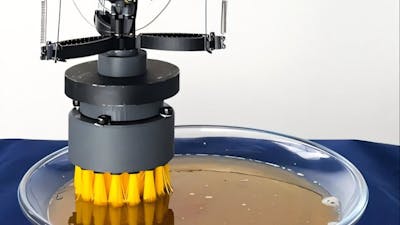

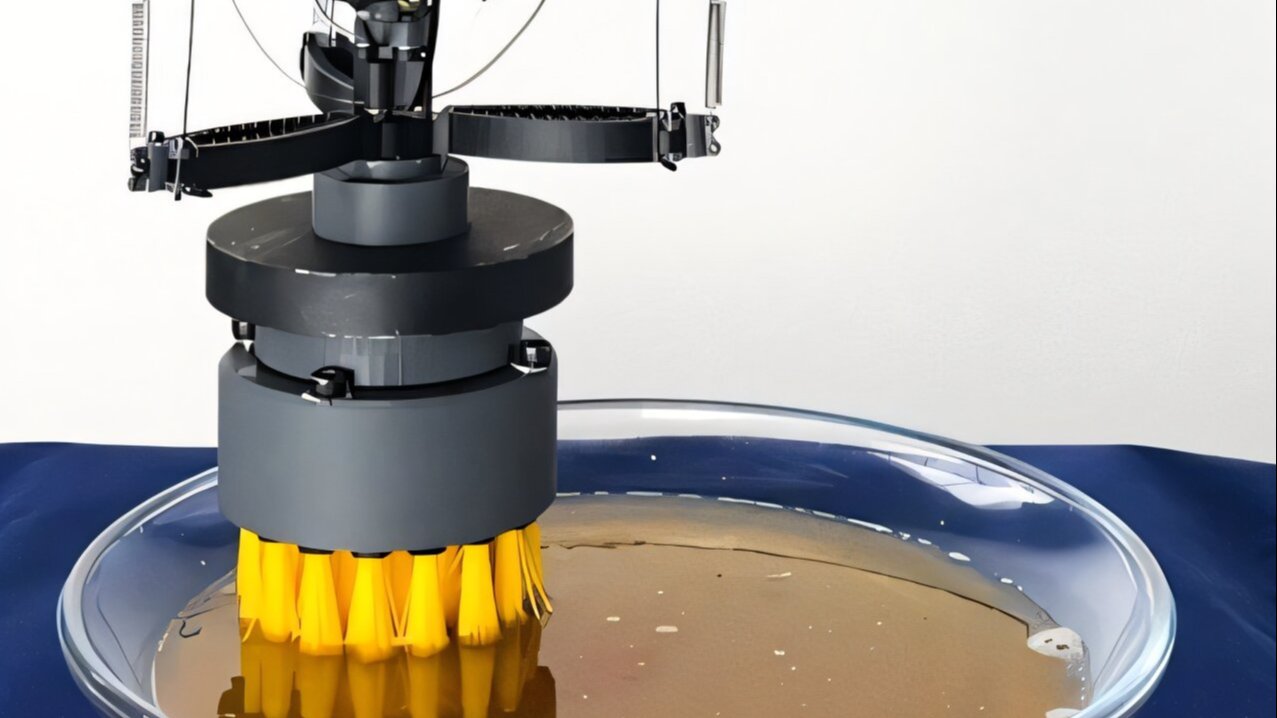

With a world cleansing robotic market projected to achieve $40.8 billion by 2032, the researchers hope their design will assist shift robotic cleansing from the ground to the remainder of the house. From cussed range stains to soiled counter tops, SCCRUB would possibly quickly be lending a serving to hand.SCCRUB does the soiled give you the results you want (📷: Jakub Kowalewski)
The gearbox design (📷: J. Kowalewski et al.)
Outcomes of the validation experiments (📷: J. Kowalewski et al.)
