Regardless of the spectacular expertise and complicated mechanical design of at the moment’s most superior robots, their bodily capabilities pale compared to what organic organisms are able to. Most robots are very a lot purpose-built, and when situations differ even just a little bit from their expectations, they fail spectacularly. Distinction that with people and animals, the place adaptation to completely different environments comes naturally.
At the very least a part of the explanation for this shortcoming of robots stems from the way in which their actuators are designed. Whereas organic organisms depend on muscle tissue, bones, and tendons that may conform and adapt to the world round them for motion, the stuff of robots is totally completely different. Not solely are their actuators sometimes manufactured from inflexible, non-compliant supplies, however additionally they transfer in unnatural methods. And a spinning electrical motor and set of gears is just not as adaptable as muscle tissue.
The obvious resolution to this downside can be to imitate the operate of organic musculoskeletal programs, and that’s precisely what a gaggle of researchers at Northwestern College is trying to do. They’ve developed a system containing stretchy, muscle-like actuators, plastic bones, and elastic synthetic tendons which are extra versatile than conventional robotic actuation programs. Their method additionally contains sensors to simulate the suggestions supplied by organic sensory receptors.
The bogus muscle is predicated on a 3D‑printed cylindrical construction referred to as a “handed shearing auxetic” (HSA), which has a novel geometry that permits it to increase and broaden when twisted. By coupling this HSA with a small, built-in servo motor, the researchers can convert rotational movement into linear extension and contraction, basically mimicking how organic muscle fibers shorten and lengthen.
The HSA is encased inside a Yoshimura origami-inspired bellows. This outer construction constrains undesirable rotation whereas nonetheless allowing the actuator to broaden and contract. Each the HSA and the bellows are 3D‑printed from thermoplastic polyurethane, a light-weight, versatile rubber-like materials generally utilized in client merchandise. The result’s an actuator that’s not solely mechanically compliant but in addition robust. It was proven to be able to lifting objects as much as 17 occasions its personal weight.
The actuators will be powered by moveable batteries, avoiding the cumbersome compressors or exterior excessive‑voltage provides required by many different smooth actuator applied sciences. Exams revealed that the system can obtain actuation strokes of practically 30% of its size and generate forces round 75 newtons (corresponding to lifting a number of kilograms) whereas remaining light-weight and versatile.
To display the potential of their design, the workforce constructed a life‑measurement robotic leg with 3D-printed plastic bones, rubber tendons, and three synthetic muscle tissue functioning as a quadricep, hamstring, and calf. The leg was in a position to bend on the knee and ankle and even kick a volleyball off a pedestal. A versatile 3D‑printed sensor embedded within the leg allowed it to “really feel” its personal actions by altering electrical resistance because the muscle stretched or contracted.

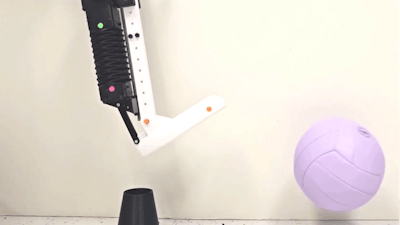

The researchers imagine this bioinspired method might finally result in robots that stroll, run, and work together with people in safer and extra adaptable methods. By combining smooth, muscle‑like actuators with bone‑ and tendon‑like components, robots might at some point obtain the effectivity, resilience, and pure movement seen in animals, which is one thing machines have struggled with for many years.A bioinspired robotic leg kicking a ball (📷: Northwestern College)
