Researchers at Cornell College have been engaged on batteries that may ‘stream’ via the inner constructions of robots, form of like how blood in people’ veins powers our our bodies.
The crew has been exploring an concept it is calling ’embodied power,’ the place energy sources are organically included into machines, versus becoming them into compartments.

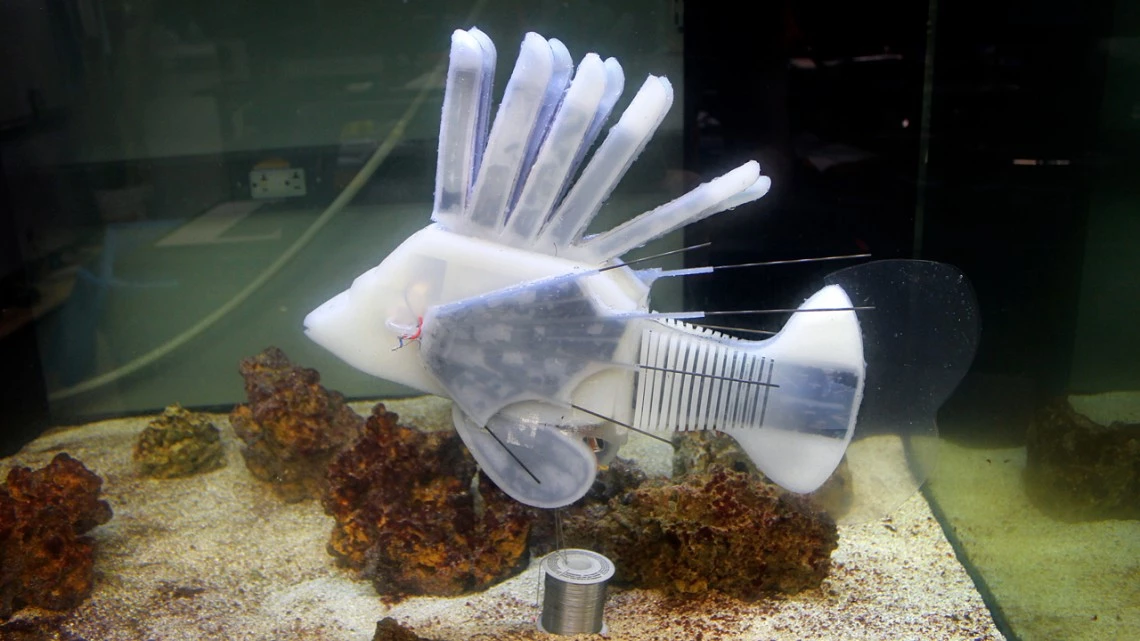

The engineers beforehand demonstrated this idea in a comfortable robotic impressed by a lionfish again in 2019. Now, they’ve developed a worm and a jellyfish which are powered by a circulating hydraulic fluid releasing power into their methods. Anybody getting Horizon Zero Daybreak vibes from this?
Horizon Zero Daybreak Remastered – Launch Trailer | PS5 & PC Video games
How within the heck, you ask? And why go to all this hassle when each different standard-issue worm- and jellyfish-shaped robotic handle simply fantastic with common batteries?
Good questions, each. ‘Robotic blood’ methods can cut back the load and improve the battery density of energy sources for small robots designed for difficult purposes, like monitoring ocean flooring, investigating pipes, and exploring tight areas. Which means these robots can function for longer earlier than they should be retrieved and charged.
Cornell College
Robotic blood additionally permits for larger mobility. Describing the worm, challenge chief Rob Shepherd defined, “… the battery serves two functions, offering the power for the system and offering the power to get it to maneuver. So then you’ll be able to have issues like a worm, the place it’s nearly all power, so it may possibly journey for lengthy distances.”
Cornell College

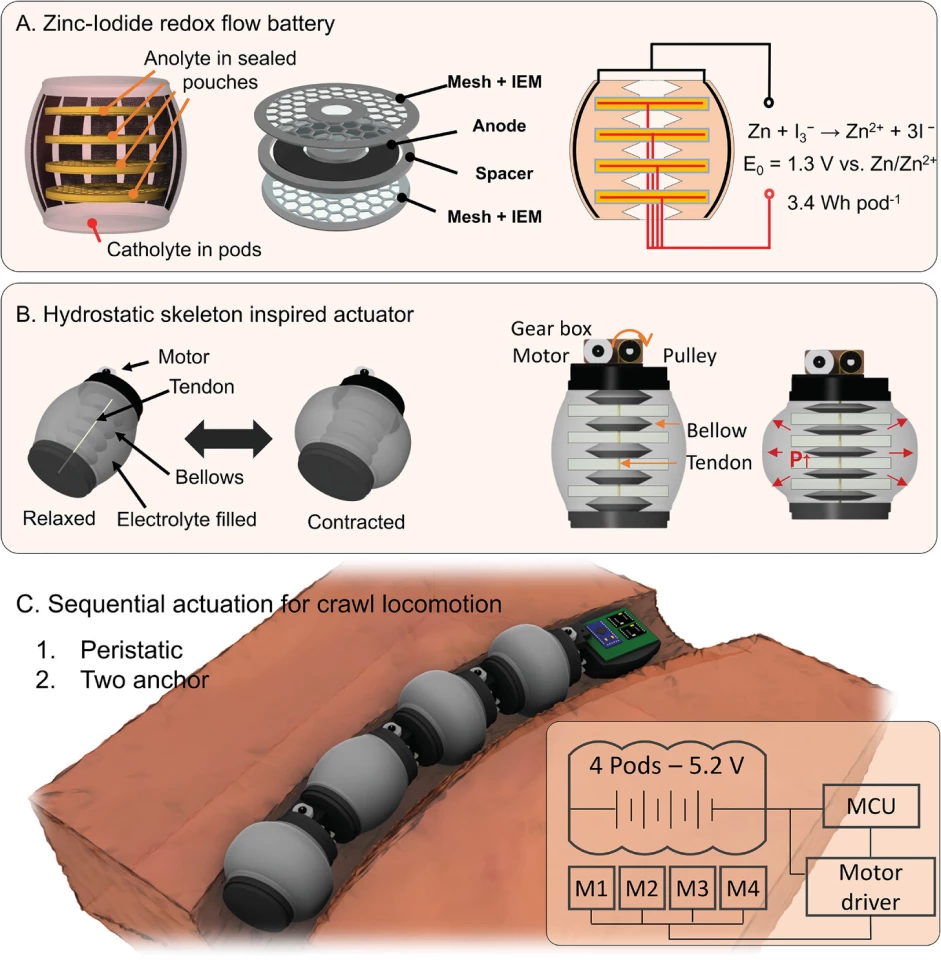

Powering the worm with a versatile battery system means the robotic can inch alongside the bottom. Its design options interconnected segments alongside the size of its physique, every with a motor and tendon actuator. These can contract and increase to push the robotic ahead. It may possibly additionally transfer up and down a vertical pipe, much like a caterpillar.
The researchers observe their worm robots are gradual – protecting simply 344.5 ft (105 m) in 35 hours on a full cost – however they’re really faster than different hydraulically powered ones.
The robotic blood system itself is basically makes use of a pair of Redox Move Batteries (RFB). These have electrolytic zinc iodide and zinc bromide fluids dissolving and releasing power via a chemical discount and oxidation response (therefore the time period ‘redox’). The crew used this idea to construct versatile batteries contained in the robots that do not require inflexible constructions to carry them in place.
Cornell College
Within the case of the jellyfish-shaped robotic, a RFB is linked to a tendon that modifications the form of the bell on the prime of its physique and propels it upward via the water. When the bell relaxes, the jellyfish sinks again down. This design can function for 90 minutes on a single cost.
The embodied power strategy may assist usher in an entire vary of specialised analysis robots sooner or later. To that finish, Shepherd notes that the following part in its evolution may embody machines that may reap the benefits of skeletal constructions, and stroll.
Supply: Cornell Chronicle
