Although robodogs are out there for shopper buy, most will probably be deployed to business and analysis and possibly even safety or rescue. Unitree’s newest intrepid quadruped is hard, sturdy, quick and agile, and is prepared for motion.
As is now customary for any new breed of quadruped, Unitree has compiled and launched video footage of its A2 “Stellar Explorer” doing its factor.

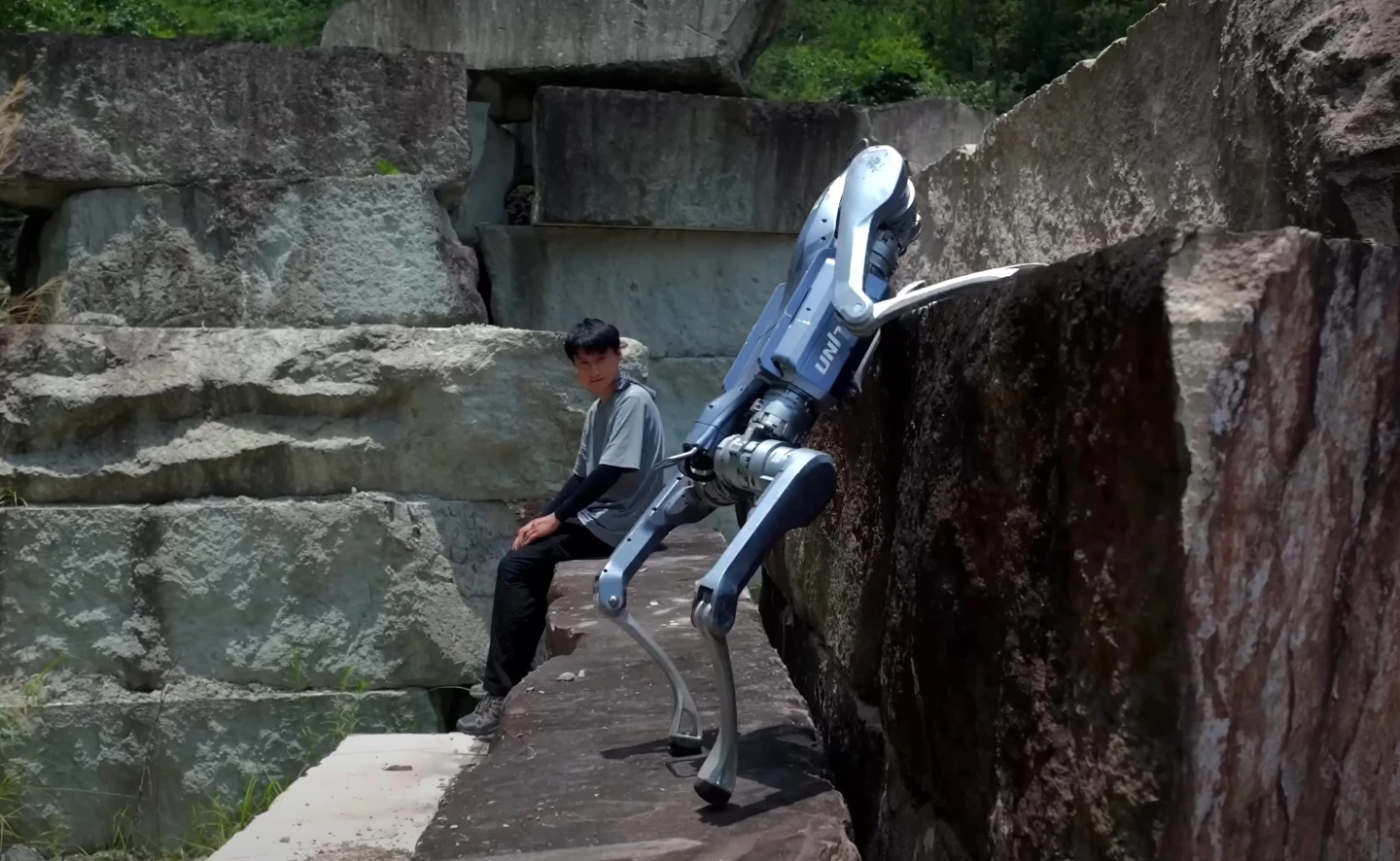

The motion begins with the bot crashing by means of a glass barrier earlier than back-flipping and padding over rocky terrain to reveal its agility. The A2 is seen breaking into slick dance strikes on 4 legs, two and even one. It bolts down steps at a breathtakingly brisk tempo and climbs up stone blocks with as much as a meter (3.3 ft) of attain.
Unitree Introducing | Unitree A2 Stellar Explorer

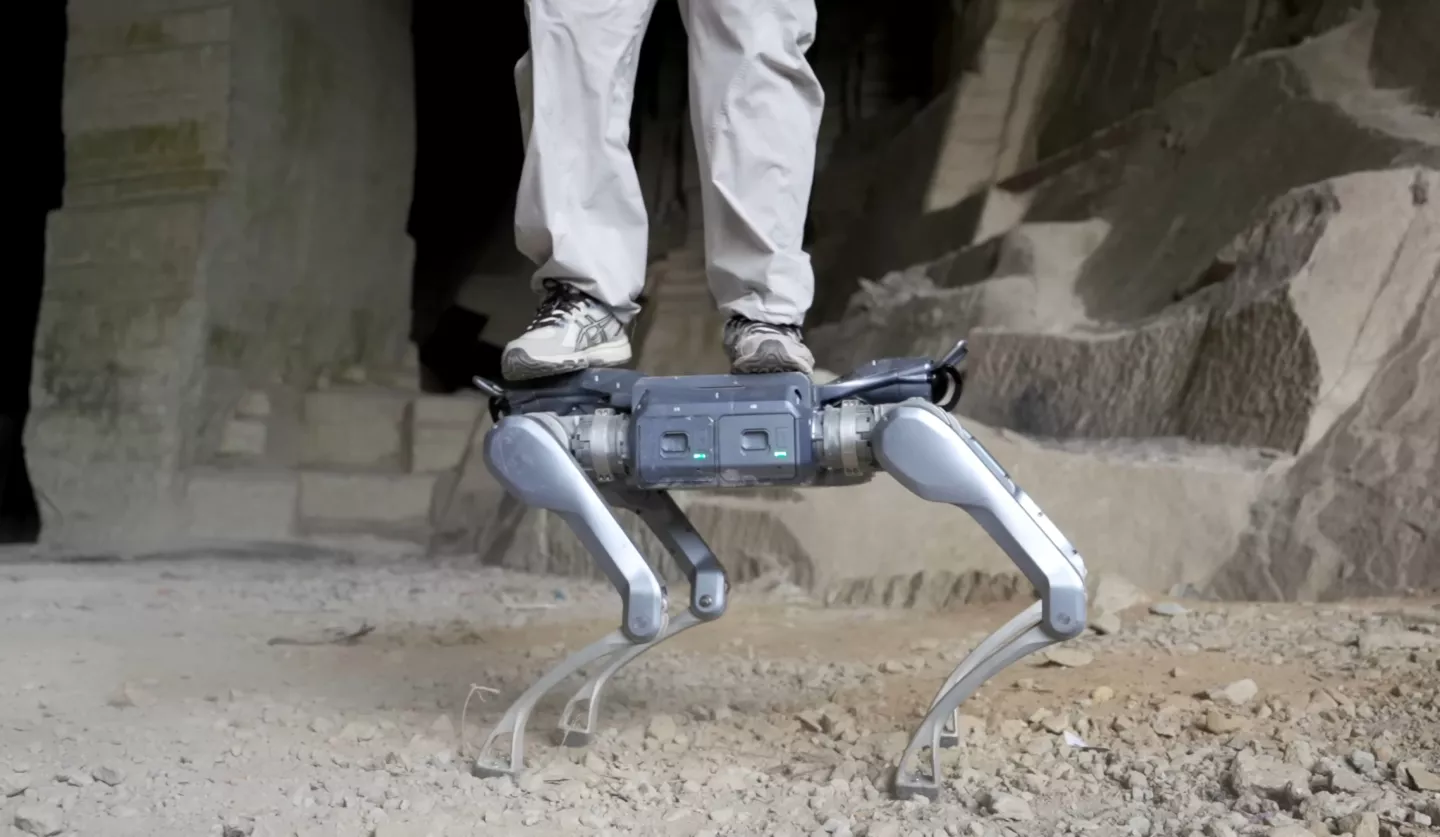

Spectacular stuff, however the robo-pooch does not cease displaying off there. About half method by means of the video, the A2 involves a halt subsequent to a human member of the Unitree household, who then steps up onto its again. Although my preliminary thought was that he was going to journey the robodog like a four-legged skateboard – which might be superior – he as an alternative jumps up and all the way down to show the robotic’s sturdiness and standing load capability of as much as 100 kg (220 lb).
The A2 can carry stuff whereas on the transfer too, with the video displaying a 30-kg (66-lb) payload being hauled by means of city – protecting a distance of 12.55 km (7.8 miles) earlier than the robotic ran out of juice. Nevertheless, the really helpful max payload for steady strolling is rather less, at 25 kg.
Unitree
The A2 advantages from two 9,000-mAh battery packs that mix for as much as 5 hours (or 20 km/12.5 miles) of padding about when it does not have a payload on its again, or round 3 hours when totally loaded. These may be hot-swapped for continued use. Prime velocity on foot is 5 meters per second (11.2 mph), however the A2 will also be had in a wheeled configuration – although we have no specs for that one.
The joint motors allow 12 levels of freedom, translating to a movement vary from -58° to plus 58° on the physique, -134 to 180°/-89 to 225° on the thighs, and -158 to -30° on the shank. Most joint torque is reported to be 180 Nm (133 lb.ft). All of which holds promise for a nimble, succesful quadruped robotic employee.
The A2 options an ultra-wide industrial LiDAR to the entrance and one other on the rear for all-around depth consciousness, in addition to a HD imaginative and prescient digital camera and entrance mild “to detect the atmosphere forward and eradicate blind spots.” The robotic can be able to autonomous impediment avoidance courtesy of the AI imaginative and prescient system and octa-core processing.
Unitree
Wi-Fi 6 and Bluetooth 5.2 are cooked in, with 4G and GPS out there as choices. Sensible over-the-air updates will preserve the system in tip-top situation. There are a bunch of bodily exterior interfaces, together with USB-C, CAN buses and Gigabit Ethernet. And the quadruped contains an onboard speaker and microphone array. Whole weight is available in at 37 kg (81.6 lb), together with twin batteries.
The Unitree A2 is designed for industrial deployment – together with things like web site inspection duties, logistics operations and R&D exploration – and is on the market on a price-upon-asking sort of deal. Full specs and extra info can be found by way of the hyperlink beneath.
Product web page: Unitree A2
