3D scanner producer Revopoint has launched the Trackit optical monitoring 3D scanner, designed to streamline the method of capturing high-precision 3D information.

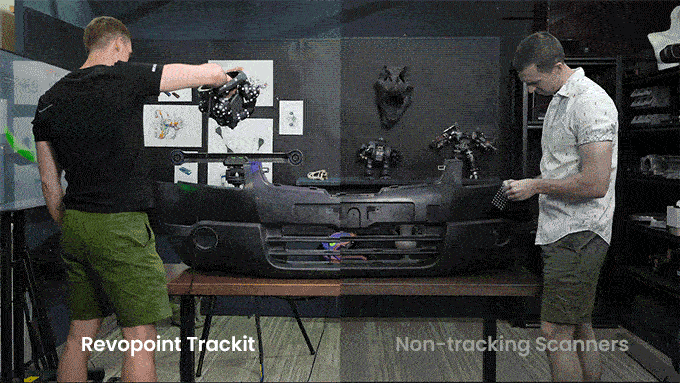

Launching on Kickstarter, Revopoint Trackit combines a high-accuracy scanner with an clever optical tracker to ship exact, environment friendly scanning with out the necessity for bodily markers. By eliminating marker placement, it streamlines setup, reduces person error, and ensures steady monitoring throughout altering angles and complicated geometries, making it a sensible answer for professionals in industries the place conventional programs are sometimes too cumbersome or pricey.
Highlighting the advantages, Sammie Lilly, one of many beta testers of Revopoint Trackit and founding father of SkreetKar3D, mentioned, “Trackit markedly lowered each the time required for scanning and post-processing. Its excessive accuracy and real-time monitoring capabilities lead to fewer rescans and decreased want for handbook correction, enabling better give attention to design and prototyping.”
Twin laser modes and versatile monitoring choices
Trackit gives two scanning modes to accommodate a wide range of surfaces and functions. The 30-line cross blue laser mode is right for rapidly capturing bigger areas, together with difficult surfaces like darkish or shiny supplies, with out requiring scanning spray.
For detailed or hard-to-reach options, the single-line blue laser supplies exact protection of deep holes and slim crevices, making certain that advanced shapes are absolutely captured. This dual-mode flexibility makes the system appropriate for each on a regular basis duties and extra specialised technical work.
With a working vary of as much as 4 m and a base station that may be simply repositioned, Trackit helps the scanning of each small objects and enormous workpieces. The system maintains volumetric accuracy throughout its whole monitoring subject, enabling clear body stitching with out the necessity to continuously recalibrate.
Constructed with a carbon fiber body, the scanner can also be designed to endure frequent dealing with and transportation with out compromising structural stability. For added comfort, it consists of two gimbals: one for the tracker and one for the scanner, together with an automatic gimbal calibration function that ensures constant efficiency with minimal handbook enter.
Recognizing the vary of real-world circumstances professionals work in, Trackit adapts to a number of scanning types. Customers can function it in optical monitoring mode for streamlined, marker-free scanning, change to multi-position scanning when masking bigger areas, or use it as a handheld scanner with conventional markers for optimum flexibility in tight or obstructed areas.
Constructed for industrial use with superior workflow instruments
This adaptability extends into its sensible functions throughout industries. In aerospace, engineers can scan parts comparable to turbine blades and engine assemblies to help exact meeting and CAD-based reverse engineering. Automotive groups can seize reflective elements like grilles or rims to assist in restore, copy, and digital becoming.
Moreover, Trackit helps high-fidelity texture seize for artists and conservators working with sculptures. Permits exact mildew scanning in casting functions. And supplies real-time level cloud information for high quality management of parts and assemblies.
To help these workflows, Trackit comes geared up with Revo Trackit software program (free endlessly) and Revo Measure software program (1-year free license for Kickstarter Backers), which gives mesh-to-CAD comparisons, dimensional checks, and GD&T evaluation for superior workflows.
Although typically out of attain for small and medium-sized enterprises, professional-grade scanning is now extra accessible with Trackit, which mixes industrial-level efficiency with sensible affordability.
Technical specs and pricing
When the Kickstarter marketing campaign launches, the primary 100 models of Trackit will likely be accessible at a Tremendous Early-Fowl value of $2,988, in comparison with the common MSRP of $4,980.
| Scanner | |
| Single-frame Accuracy | 0.02 mm |
| Fused Level Distance, as much as | 0.05 mm |
| Depth Digicam Decision | 2 Megapixels |
| RGB Digicam Decision | 2 Megapixels |
| Scanning Velocity, as much as | 1,500,000 Factors/s |
| Mild Supply | 30 Blue Cross Laser Strains; 1 Blue Single Laser Line |
| Working Distance | 200 – 400 mm |
| Single Seize Space at Nearest Distance | 160 × 70 mm at 200 mm |
| Single Seize Space at Furthest Distance | 320 × 215 mm at 400 mm |
| Weight | 1.2 kg |
| Dimensions (L x W x H) | 295 × 295 × 205 mm |
| Working Temperature Vary | 0 – 40°C |
| Output Codecs | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Tracker | |
| Half Dimension Vary (Really useful) | 0.01 – 6 m |
| Volumetric Accuracy (Monitoring System) | 0.025 mm + 0.04 mm × L (m) |
| Working Distance | 1500 – 4000 mm |
| Minimal Monitoring Body | 1400 × 1050 mm @ 1500 mm |
| Most Monitoring Body | 2800 × 2800 mm @ 4000 mm |
| Monitoring Quantity | 11 m3 |
| Digicam Decision (Monitoring System) | 5 Megapixels |
| Weight | 1.8 kg |
| Dimensions (L x W x H) | 816 × 115 × 101 mm |
| Monitoring Band | Infrared |
| Person Recalibration | Auto Calibration; Tracker has an auto-gimbal calibration system. The scanner requires handbook calibration. |
| Supported Equipment | Calibration Board, Calibration Pole, Auto Calibration Twin-axis, Gimbal, Anchor Block, Massive Turntable |
| Minimal PC Necessities | System Model: Home windows 10/11 (64-bit) RAM: ≥ 32GB CPU: Intel i7 thirteenth Gen or higher/AMD Ryzen 7 above the 7000 collection GPU: NVIDIA GeForce RTX 3050 (8 GB) |
| Really useful PC Necessities | System Model: Home windows 10/11 (64-bit) RAM: ≥ 64GB CPU: Intel i9 twelfth Gen or higher GPU: NVIDIA RTX 4060 (8GB) or higher |
| Be aware: 1. Accuracy is acquired in a managed lab setting. Precise outcomes may range, topic to the working setting. 2. Class 2M Laser Security Ideas: a) The product makes use of a Class 2M laser projector. Keep away from trying immediately at it at shut vary! Please discuss with the Class 2M laser normal doc for particulars. b) To keep away from retina injury, don’t look immediately into the laser beam by means of optical devices able to magnifying it (e.g., telescopes, and digital camera lenses). c) To forestall laser reflection, keep away from inserting reflective surfaces like mirrors or glass within the path of the laser beam. 3. To make sure accuracy, it’s really useful to make use of the product inside an setting temperature vary of 20°C to 25°C (68’F to 77°F). 4. This product has flashing lights, which might not be appropriate for folks with photosensitive epilepsy. |
|
