A staff of roboticists on the College of Lincoln’s College of Engineering and Bodily Science has launched a standardized, open supply {hardware} interface designed for the Robotic Working System 2 (ROS 2) that, they are saying, will remedy the issue of fragmentation, differing requirements, and a reliance on proprietary elements “as soon as and for all:” the Fast Reproducible Robotics Analysis (R4) system.
“A key element of any robotic is the interface between ROS 2 software program and bodily motors,” the researchers clarify. “New robots usually use arbitrary, messy mixtures of closed and open motor drivers and error-prone bodily mountings, wiring, and connectors to interface them. There’s a want for a standardizing OSH [Open Source Hardware] element to summary this complexity, as Arduino did for interfacing to smaller parts. We current a OSH printed circuit board to resolve this drawback as soon as and for all.”

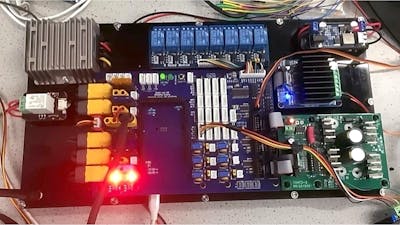

R4 guarantees to resolve fragmentation in robotics analysis “as soon as and for all,” with a standardized open-hardware management board design. (📷: Waltham et al)
The R4 management board is designed to play host to an Arduino GIGA R1 WiFi microcontroller improvement board — “appearing,” the staff explains, “as an unusually giant and sturdy protect,” although designed extra within the type of a service board. The Arduino GIGA was chosen, the researchers say, to make sure compatibility with present ROS-based software program stacks, which means it may be used as a drop-in element without having to re-engineer the software program facet of present robotics initiatives.
Previous the Arduino, the R4 board is designed to make use of present open-hardware motor drivers and relays, enabling the creation of “totally open-hardware wheeled and arm robots,” the researchers declare. As they’re open, and the board itself standardized and connecting to an equally-standardized microcontroller improvement board, something constructed with the R4 must be totally reproducible — a key characteristic for one thing being positioned as a platform for robotics analysis.
An R4 system could be put collectively for round $300, the staff claims, with the machine being focused at talent ranges from secondary- or high-school college students as much as undergrads and fully-fledged scientists. 5 R4 boards had been constructed on the time of writing, utilizing a industrial PCB manufacturing service and guide place-and-reflow for meeting, and had been used to create a variant of the OpenScout four-wheeled cell robotic and a model of the OpenPodCar as an alternative choice to the digital programs beforehand employed of their design, plus in authentic initiatives together with a three-servo arm.

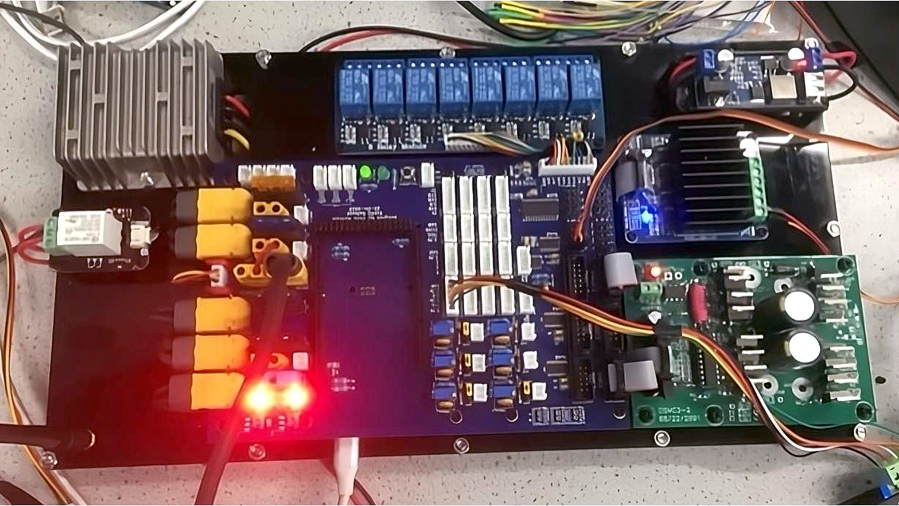

Preliminary prototypes of the board have been utilized in initiatives together with four-wheeled rovers and three-axis robotic arms, in addition to upgrades for present robots just like the OpenScout (above). (📷: Waltham et al)
“R4 is designed to allow ‘no firmware programming’ for finish customers,” the researchers say, “permitting them to instantly join a choice of customary gadgets and program them utilizing ROS 2. This enables, for instance, a analysis robotics lab to be stocked with a set of normal parts similar to OSMC motor drivers, relays, and motors, which together with R4, a field of aluminum profile, and batteries could possibly be used considerably like a LEGO assortment to create many alternative robotic varieties. These may embody cell robots, robotic arms, conveyor programs, and extra.”
The staff’s work has been printed within the Journal of Open {Hardware} below open-access phrases; design information and supply code can be found on Zenodo below the permissive Inventive Commons Attribution 4.0 Worldwide license.
