It’s only a truth, I’m curiously keen on topologies that mix PWM switching and filtering circuitry with energy dealing with gadgets like adjustable voltage regulator chips. This scheme makes power-capable DACs with double-digit wattage outputs. For instance, “0 V to -10 V, 1.5 A LM337 PWM energy DAC.”
Wow the engineering world along with your distinctive design: Design Concepts Submission Information
The easy circuit in Determine 1 joins this favored household however makes its siblings look weak and wimpy by upping the facility ante by greater than an element of 10. It attains output capabilities over a kilowatt and will get there with a complete elements depend of solely 9 cheap discretes. Right here’s the way it works.

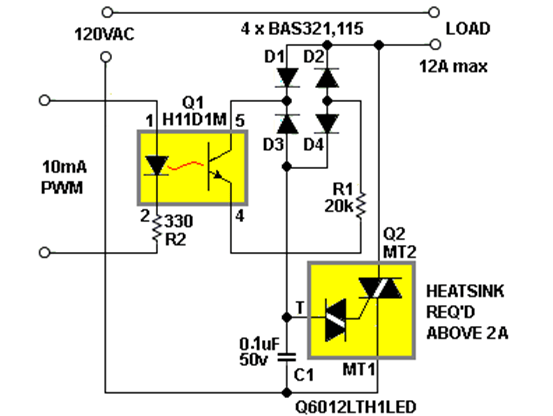

Determine 1 The quadrac Q2 conduction-angle triggering time fixed = R1C1 / DF, the place DF is the PWM obligation issue from 0 to 100%.
The ability management technique in play is variable AC part angle conduction through a quadrac (additionally generally known as an alternistor). Quadracs are bidirectional thyristors that comprise the twin capabilities of a triac (to do the facility switching) and an built-in diac (to set off the triac).
They’re fashionable in purposes like variable-speed energy instruments and lamp dimmers as a result of they’re low-cost, environment friendly, and sturdy. What’s additionally good is that the one help elements they want for AC energy management are a small potentiometer and a timing capacitor (each additionally low-cost) to regulate triggering delay and thereby the part angle of conduction, thence energy output
Q2 is wired in precisely that conventional manner ,besides that opto-isolator Q1 and R1 fill the position of the pot. The obligation issue (DF) of Q1’s PWM enter units its common conductance and thereby the efficient set off delay from a
DF = 1 minimal of ~1.7 ms for an higher 95% output energy, right down to a DF = 0 delay that’s longer than the whole 8.33 ms AC half-cycle. Which is to say: OFF. The PWM cycle charge isn’t vital however needs to be no less than 10 kHz to keep away from attainable annoying beat frequencies because it’s not synchronized with the 60 Hz AC cycle.
The connection between DF, part angle, and p.c energy output is the same as the time integral of [(Vpk*sin(r)) 2], which is proven in Determine 2.
Determine 2 The (Vpk*sin(r))2 energy output versus the PWM DF. The correct axis is the voltage of the set off capacitor (C1), the left axis is the fraction of the complete output energy versus set off part, and the x-axis is the AC part in radians.
As a result of Q1, not like Q2, isn’t bidirectional, the D1-4 diode bridge is important to maintain it upright regardless of 60-Hz part reversals. Q1’s typical present switch ratio of 80% makes ~10 mA of PWM drive present vital. Present limiter R2’s 330 Ω assumes a 5-V rail and a low impedance driver and can want adjustment if both assumption is violated. The Vc1 set off voltage is 38 V ±5 V with ±3 V max asymmetry. These tolerances place a restrict on DF versus energy precision.
The total throttle Q3 energy output effectivity is round 99%, however Q2’s max junction temperature score is barely 110 °C. Satisfactory heatsinking of Q2 will subsequently be sensible if outputs better than 200 W and/or toasty ambient temperatures are anticipated.
Stephen Woodward’s relationship with EDN’s DI column goes again fairly a great distance. Over 100 submissions have been accepted since his first contribution again in 1974.
