Whereas it’s straightforward to give attention to house as the ultimate frontier, there’s a complete world underneath the Earth’s liquid floor that’s but to be explored. Though reaching the sting of the water is infinitely extra accessible than reaching the sting of house (and past), underwater exploration nonetheless comes with a novel set of challenges. To get began on this pursuit, electronics engineer turned educator Rupin Chheda got here up with a wonderful fundamental submarine platform that you would be able to construct principally from the plumbing aisle at your native ironmongery store.

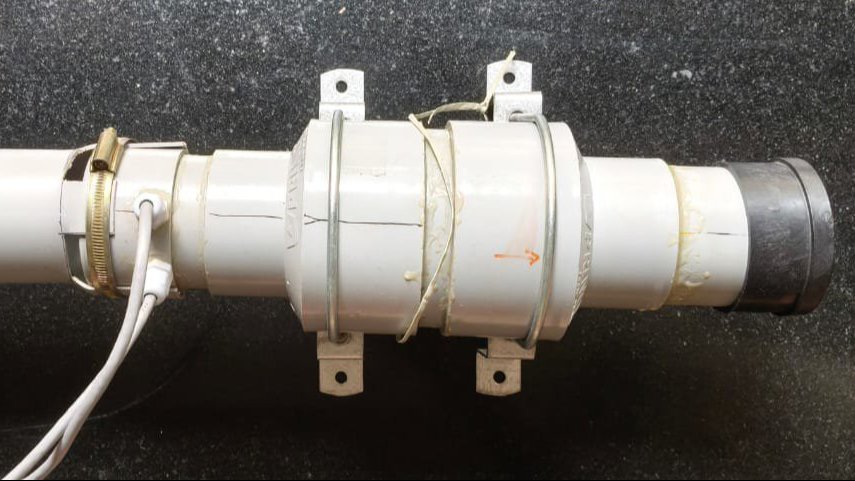

Construct specifics are specified by the venture log, although the idea might doubtless be tailored to your individual functions as wanted. The design makes use of an internal strain hull made out of 75mm PVC pipe, roughly equal to ‘Merica 2 ½ inch pipe, containing a pair of pumps, solenoids, and pneumatic connections. Pumps switch air between the internal shell and an outer ballast space produced from a 110mm (~‘Merica 4”) PVC pipe and reducer association to alter the craft’s buoyancy.
The system makes use of three thrusters for navigation, with a mounting fixture made out of 75mm PVC pipe.* Wiring is achieved with lengths of Cat 6 cable, together with easy terminal blocks for connections. The consumer interface for floor management isn’t documented within the write-up, however a easy swap setup must be ample to get it puttering round underwater.
After all, you might combine extra refined electronics into the construct, maybe together with a pleasant sensor suite, to show this shell of a submarine into a complicated remotely operated car (ROV). In different phrases, if you happen to’ve ever wished to construct a submarine, however didn’t know the place to start out, this appears to be like like a implausible answer!
*It’s possible you’ll need to take into account one thing aside from heated PVC pipe for the thruster mount to keep away from the potential launch of poisonous fuel. Duplicate at your individual danger.
