Buttons stands out as the workhorses of the person interface, however with the proliferation of touchscreens in recent times, they’re now beginning to really feel fairly dated. We now have grown accustomed to dynamic, digital buttons that may adapt to the wants of various functions or present the person with suggestions. However a touchscreen is simply not the precise device for each job. Typically a bodily button is the one factor that is smart.
Maybe we are able to no less than spice these clunky outdated buttons up a bit. That’s the aim of a trio of engineers on the College of Illinois Urbana-Champaign, no less than. They’ve developed a novel system known as HaptiCoil that turns bodily buttons into dynamic canvases that may present their customers with tactile suggestions. Additionally they have the flexibility to detect when they’re being pressed, which might be a very good function to incorporate in any button design.
The system’s {hardware} platform (📷: J. Youn et al.)
The HaptiCoil platform is an embedded system particularly designed for fast prototyping of soppy, compact, and extremely customizable haptic buttons. It has the flexibility to supply a large tactile bandwidth (1–500 Hz), enabling a broader vary of bodily sensations than typical options just like the vibration motors present in smartphones or gaming controllers.
The gadget is provided with a mass-produced, waterproof planar micro-speaker. As a substitute of merely enjoying sounds, these audio system are tailored to ship mechanical suggestions on to a person’s pores and skin via a novel hydraulic coupling mechanism. When the speaker’s voice coil strikes, it transfers that movement via an incompressible fluid (on this case, common faucet water) to a gentle membrane that the person feels, making a dynamic and responsive tactile expertise. The actuation and sensing are managed by a Teensy 4.0 growth board.
It’s by measuring modifications in self-inductance of the speaker’s coil that the system can detect when a person presses on the button. Because the person presses, the deformation of the membrane strikes the speaker coil, altering its inductance in a detectable manner. This twin operate of sensing and suggestions occurs with solely two electrical connections, protecting the electronics easy.

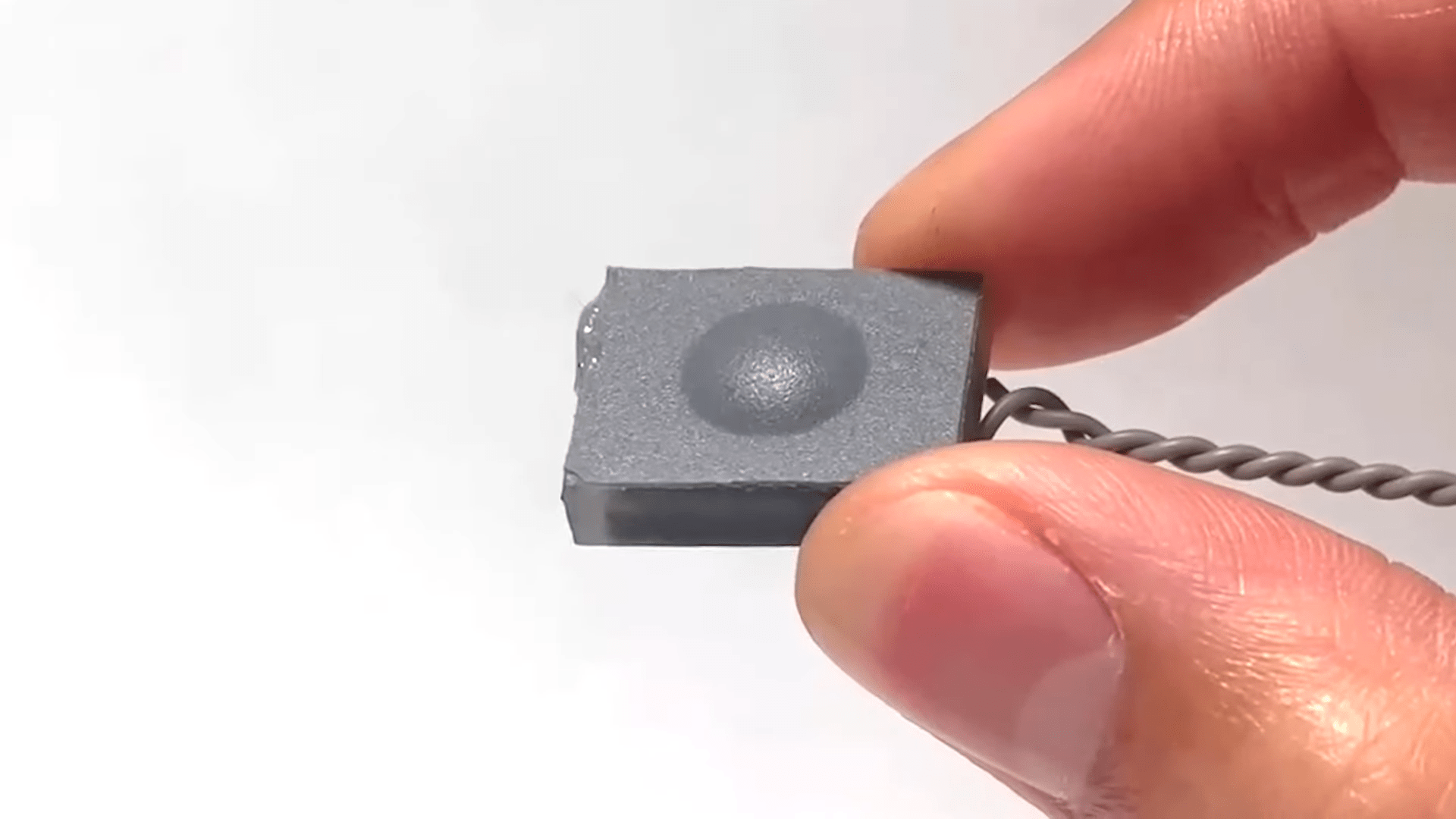

To make a HaptiCoil button, the workforce 3D-printed a small fluid chamber (barely bigger than the speaker itself) utilizing clear resin for straightforward inspection. The speaker is then bonded to the chamber utilizing cyanoacrylate adhesive to forestall leaks. A skinny, versatile silicone membrane — the half the person touches — is fastidiously connected over the chamber. Two primary methods guarantee good adhesion — a plasma floor therapy adopted by the addition of pressure-sensitive adhesive sheets for clear builds, or a less expensive however messier direct gluing technique.
As soon as the meeting is full, the chamber is full of faucet water by way of a small aspect port, and any remaining air bubbles are fastidiously evacuated to make sure constant hydraulic efficiency. The port is then sealed with room-temperature vulcanizing silicone. The result’s a compact, sturdy, and waterproof button that may simply combine into quite a lot of gadgets.
The engineers envision HaptiCoil being utilized in many functions, starting from spatial computing and digital inking gadgets to distant controls. Importantly, the modular design of HaptiCoil permits researchers and builders to simply customise button dimension, form, and suggestions traits, encouraging fast experimentation in haptic expertise design.
