Tuning methodology that compensates for fabrication errors in 250–300 GHz terahertz units—paving the way in which for scalable, ultra-fast 6G wi-fi methods past the boundaries of typical CMOS know-how.
Researchers from Science Tokyo and Hiroshima College have developed a precision mechanical tuning methodology utilizing microactuators to handle vital design challenges in terahertz (THz) wi-fi methods working at frequencies above 100 GHz, significantly at 250–300 GHz.
At such excessive frequencies, even tiny mechanical fabrication errors—on the order of ±50 μm—can severely influence gadget efficiency. These tolerances are insignificant at sub-6 GHz however symbolize as much as 5% of the wavelength at 300 GHz, inflicting impedance mismatches and sign degradation, particularly on the chip-to-antenna interface. Conventional CMOS transistors can’t deal with these ultra-high frequencies, ruling out digital tuning. The group’s progressive resolution replaces lively circuitry with mechanical actuation, providing precision with out counting on high-speed electronics.

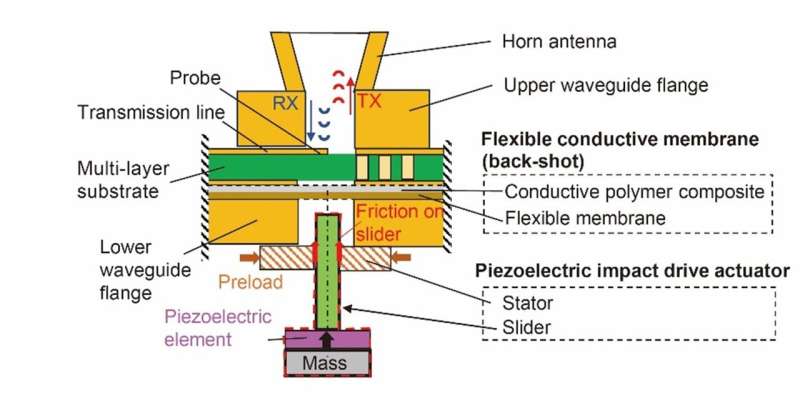

The strategy permits constant, high-performance THz transmission—even with inherent fabrication variations—making scalable, next-gen terahertz wi-fi methods extra possible. As a substitute of redesigning the chip or antenna, producers can now compensate post-fabrication utilizing this fine-tuning mechanism. The strategy borrows from optical methods: like a digicam adjusts lens place for focus, the THz gadget makes use of a versatile conductive membrane as a movable backshort (reflector) inside the waveguide. A micro-scale impact-drive actuator slides the membrane to regulate impedance with sub-micron precision.
This permits real-time, high-accuracy impedance tuning within the 250–300 GHz vary, vital for minimizing sign loss and distortion throughout transmission. The whole construction is compact, CMOS-compatible, and free from lively circuit limitations. It is a promising step towards dependable THz methods, best for ultra-fast wi-fi communications reminiscent of 6G, ultra-HD streaming, or chip-to-chip knowledge switch in future sensible units and edge AI platforms.
By proving that mechanical tuning can appropriate for manufacturing imperfections in terahertz modules, the researchers have opened a scalable, sensible path ahead for the following leap in wi-fi velocity and capability—with out being bottlenecked by conventional semiconductor constraints.Mechanical precision may be the important thing to unlocking the complete potential of ultra-wideband terahertz wi-fi methods.
