Baseball didn’t come to be generally known as America’s nationwide pastime for nothing. Folks love every little thing about baseball, from the crack of the bat to the odor of sizzling canines and fresh-cut grass within the summertime. And as a group recreation, enjoying a couple of innings of baseball is an effective way to get out and socialize with mates. However if you wish to get out on the diamond for slightly observe by yourself — properly, let’s simply say that making an attempt to throw the ball to your self doesn’t work out so properly.

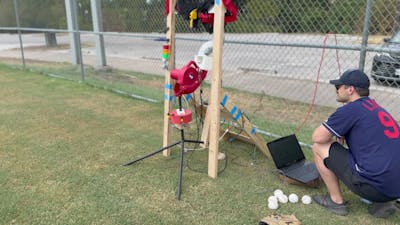

However that’s nothing that may’t be solved with expertise, says YouTuber LeMaster Tech. He needed to construct a machine that might flip a solo baseball outing right into a Topgolf-like expertise. To make that occur, he designed and constructed what he calls the Fielder’s Alternative. It might not be a lot to have a look at, with its tough wood body and cobbled collectively parts, but it surely does an ideal job of not solely enjoying catch, but in addition gamifying the expertise.
An Arduino Opta micro PLC is on the coronary heart of the system (đź“·: LeMaster Tech)
The primary capabilities of the Fielder’s Alternative are to catch and throw a baseball. Catching is comparatively straightforward; LeMaster Tech picked up a second-hand batting observe internet to make catches. A stretch of dryer vent hose was connected to a gap on the backside of the netting to information the ball into the throwing mechanism.
So far as the throwing mechanism is worried, it’s constructed round a business pitching machine. However LeMaster Tech needed to have the ability to management when the ball is thrown, so a customized, 3D-printed enclosure was connected between the hose and the consumption of the pitching machine. A gate on this enclosure, which is managed by a servo, holds the ball in place till a sign is shipped telling it to throw the ball. An infrared proximity sensor lets the system know when a ball is in place and able to throw.
Throwing the identical pitch repeatedly wouldn’t be very a lot enjoyable, so a linear actuator was connected to the bottom of the Fielder’s Alternative to regulate its elevation. A stepper motor and set of gears had been additionally connected to a pole, on prime of which the pitching machine is positioned, to permit for rotational changes.
The consumer interface (đź“·: LeMaster Tech)
An Arduino Opta micro PLC handles supplying every of the parts with the right voltage, and turning them on and off as wanted. An Arduino Nano was additionally included within the construct to generate PWM indicators to regulate the servos.
To finish the construct, LeMaster Tech programmed the Fielder’s Option to play three user-selectable video games. The primary is simply an infinite recreation of catch. One other recreation, known as “across the horn,” will get the participant operating throughout the infield because it launches a mixture of line drives and grounders between first and third base. The ultimate recreation, known as “area your place,” will throw quite a lot of pitches to a selected spot within the infield for those who need to work on their position-specific abilities.
The Fielder’s Alternative could sound like a sophisticated construct, however the person parts that make it up are comparatively easy. When you get began now, you can simply have your personal robotic baseball buddy prepared earlier than subsequent spring rolls round.
