The reference design allows engineers to construct and check a community node with computerized antenna switching, bettering sign reliability in wi-fi environments.

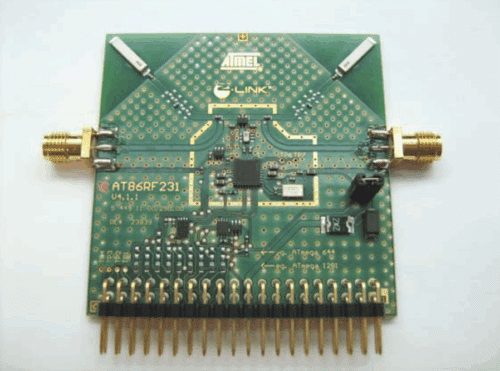

Antenna Range (AD) is a transmission approach that makes use of a number of antennas to ship or obtain alerts by way of totally different propagation paths, lowering the results of multipath interference. Multipath propagation occurs when alerts replicate, refract, or scatter off obstacles reminiscent of partitions and surfaces, inflicting a number of variations of the identical sign to reach on the receiver with totally different phases and amplitudes. This causes adjustments within the acquired sign power, often known as fading, which might cut back hyperlink high quality and result in extra errors or lack of connection. Utilizing Antenna Range helps enhance the reliability of RF hyperlinks between community nodes in such situations. The reference design from Microchip showcases a totally purposeful community node constructed across the AT86RF231 radio transceiver, able to operating a whole MAC layer implementation.
Utilizing this reference design, design engineers can construct a community node based mostly on the AT86RF231 transceiver that helps a MAC layer implementation, permitting them to implement and check antenna variety methods for sign reliability. They will use the design to manage antenna switching by way of the differential pins and exterior RF swap, optimize antenna placement to make sure uncorrelated sign paths, and develop firmware that makes use of the transceiver’s autonomous antenna choice throughout sign synchronization. This allows engineers to guage efficiency in multipath environments, customise the design for particular functions, and enhance the connectivity of their wi-fi networks with out rising transmit energy or including {hardware} amplification.
The AT86RF231 radio transceiver consists of an Antenna Range characteristic to manage two antennas and choose the perfect RF sign path routinely. This makes use of a pair of management pins to handle an exterior RF swap that switches between antennas. When the AD algorithm is enabled, the transceiver switches antennas through the Synchronization Header (SHR) search section with out microcontroller motion. Antennas needs to be separated to make sure alerts are impartial.
When in obtain mode, the AD algorithm locks onto the antenna detecting an SHR sign above a threshold and makes use of it to obtain the remainder of the body. If the sign is low, the algorithm continues looking on the opposite antenna till a sign is discovered or the obtain state ends. This course of helps preserve communication in altering environments.
Utilizing Antenna Range will increase the prospect of connecting to a community node and prevents nodes from turning into unreachable as a result of fading. This enchancment occurs with out elevating transmit energy or including low-noise amplifiers. The AT86RF231’s Antenna Range characteristic supplies an answer to enhance community reliability.
Microchip has examined this reference design. It comes with a invoice of supplies (BOM), schematics, meeting drawing, printed circuit board (PCB) format, and extra. The corporate’s web site has further knowledge in regards to the reference design. To learn extra about this reference design, click on right here.
