Developer, creator, and classic computing fanatic Óscar Toledo G. has designed a contemporary growth board to place an uncommon piece of computing know-how into extra mainstream methods with an Business Customary Structure (ISA) slot: a transputer ISA board.
“I developed software program for transputers within the years 1993-1996,” Toledo explains. “A couple of months in the past, I wrote some articles about my experiences, and most not too long ago I developed a transputer emulator in JavaScript. After my transputer emulator in JavaScript was working, I obtained interested by working my software program on a PC pc. I’ve a number of PC motherboards with ISA connectors, and I made a decision to construct a card suitable with the Inmos B004 (a single board to check transputer processors). Out of curiosity, I made a decision for compatibility as a result of I wished to run the Inmos Occam compiler.”

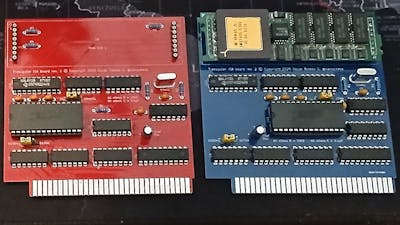

If an AMD K5 is not retro sufficient for you, why not give it somewhat Inmos growth within the type of a transputer coprocessor? (📷: Óscar Toledo G.)
Few concerned in know-how as we speak are blind to the evolution of mainstream microprocessors, beginning with Intel’s market-launching 4004 and resulting in the high-performance many-core machines of as we speak — however the transputer is much less well-known. Designed by Inmos within the Eighties, the transputer idea aimed to deal with what was seen as an upcoming efficiency bottleneck in conventional microprocessor design by delivering an structure devoted in the direction of parallelism — a precursor to the multi-core, multi-thread cellular, desktop, and server processors as we speak.
To construct a contemporary transputer board — not a devoted pc, however one thing nearer to an accelerator card that serves as a coprocessor in a extra conventional microcomputing system — Toledo picked up authentic Inmos T805 transputer boards, stick-like PCBs with a 30MHz transputer chip and a piece of reminiscence designed for use as constructing blocks for a multi-processor transputer system.
“The TRAM board incorporates the transputer and its reminiscence,” Toledo explains of his design, initially constructed on prototyping board earlier than being moved to a devoted PCB designed in KiCad. “It’s linked to the ISA board with a Inmos C011 chip that serializes and deserializes the communication hyperlink. This chip is accessed by way of the ports 0150H-0153H. My ISA board additionally supplies a 5MHz oscillator, two flip-flops to reset and analyse the transputer, and a tri-state gate to learn the error standing.”

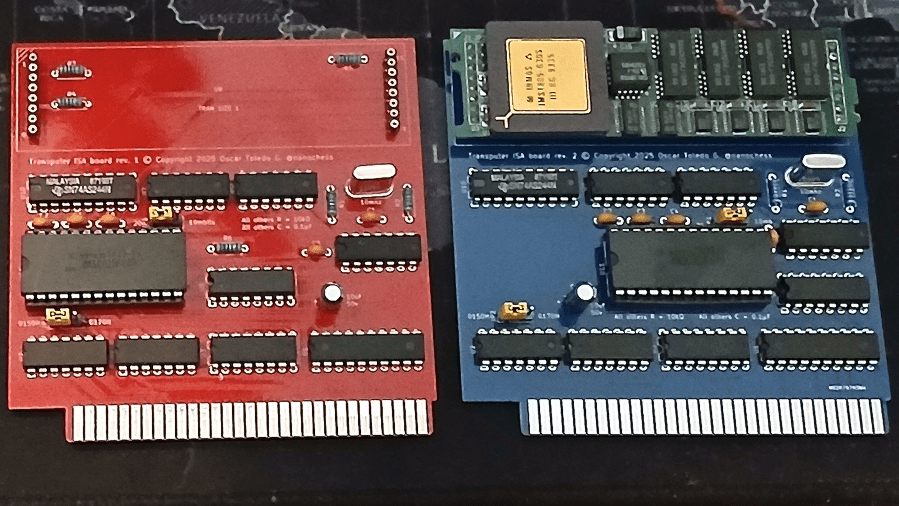

Toledo has launched {hardware} design recordsdata for the board, which requires an authentic Inmos TRAM board and C011 SERDES chip. (📷: Óscar Toledo G.)
After some tweaks — one to deal with a pace subject, which noticed the 30MHz transputer chip restricted to 20MHz, and one other to repair an compiler fussy a few triggered error flag — Toledo had a working Transputer board, suitable with software program he had initially written again within the Nineteen Nineties. Whereas the efficiency is, as you’ll anticipate, a mile away from a contemporary microprocessor, it is a slice of historical past however — and there is extra to hyperlink fashionable many-core methods to Inmos’ work than separates them, suggesting the know-how’s business failure was yet one more of timing than strategy.
Toledo’s full challenge write-up is out there on his web site; design recordsdata can be found on GitHub beneath a BSD two-clause license. Toledo has additionally confirmed that he has “a number of” further PCBs, accessible to order fully-built and examined for $74 delivered within the US — simply add an Inmos TRAM board and C011 to be up and working.
