Researchers develop a 3D transistor stacking course of that enhances efficiency in versatile and wearable electronics with out overheating.
Versatile shows, wearable sensors and lots of IoT units want extra transistors per unit space. However the present expertise, Vertical stacking, can increase density, however it faces two sensible issues: tough interfaces that accumulate defects throughout layers, and thermal-process limits that forestall use of ordinary high-temperature steps. These issues cut back gadget yield and circuit reliability.

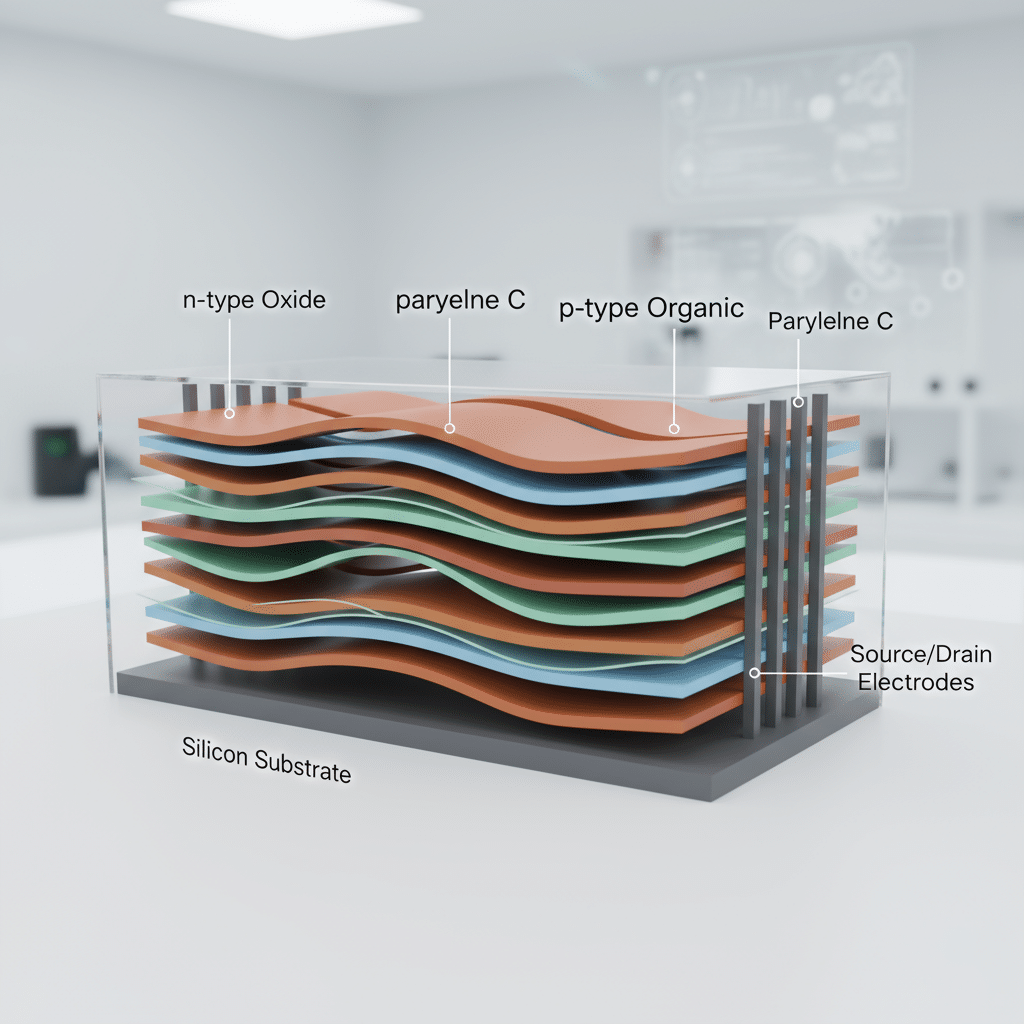

The researchers developes a brand new approach to stack transistors vertically with out these drawback. The method alternates n-type oxide transistors and p-type natural transistors throughout six stacks. The complete construction contains 41 layers.
Every layer is constructed at low temperature and separated by a skinny a skinny movie coating to enhance the capabilities of modern applied sciences referred to as parylene C movie, which retains the surfaces easy and prevents electrical leakage between layers. The brand new design reduces wiring distance and improves energy effectivity whereas preserving manufacturing appropriate with large-area, versatile substrates.
The staff fabricates and measures 600 transistors to examine uniformity and reproducibility. Balanced electron and gap transport yields comparable saturation currents throughout stacks, which helps CMOS-style logic.
The researchers combine oxide and natural units into 300 hybrid inverters. The inverters present a most achieve of about 94.8 V/V and a minimal measured peak energy of 0.47 µW, indicating low-power switching that issues for battery-powered and energy-harvesting techniques.
The group additionally builds four-stack NAND and NOR gates and validates right logic behaviour beneath check circumstances. Reliability testing exhibits gadget traits start to degrade above 50 °C, reflecting the low thermal finances of the method.
Publish-fabrication oxygen plasma and 200 °C anneal steps enhance interface high quality and cut back subthreshold swing. The work establishes a scalable route for denser, low-power, large-area circuits. The following technical steps are enhancing thermal robustness and refining interfacial smoothness to fulfill industrial working ranges.
The analysis was printed in Nature Electronics.
