To show a house into a wise dwelling, an individual may purchase some Wi-Fi-connected gentle bulbs, audio system, cameras, and door locks, then arrange some kind of consumer interface to work together with these gadgets. This is likely to be a smartphone app supplied by the system producer, or it could possibly be an open-source platform like Dwelling Assistant. However in both case, the fundamental thought is identical. These interfaces all present a centralized management system that’s distinct and bodily disconnected from the gadgets themselves.
A gaggle of researchers at Carnegie Mellon College thinks that separating the system from the interface is unnatural and inefficient, in order that they reimagined the consumer interface as one thing that may be embedded into the system itself. Specifically, their system can provide any abnormal merchandise round your own home (so long as it’s pretty small) the power to maneuver by itself. This permits some attention-grabbing functions, like instruments that may scurry towards their proprietor if they’ve been misplaced on a cluttered workbench, or potted vegetation that may search shade within the warmth of the day.

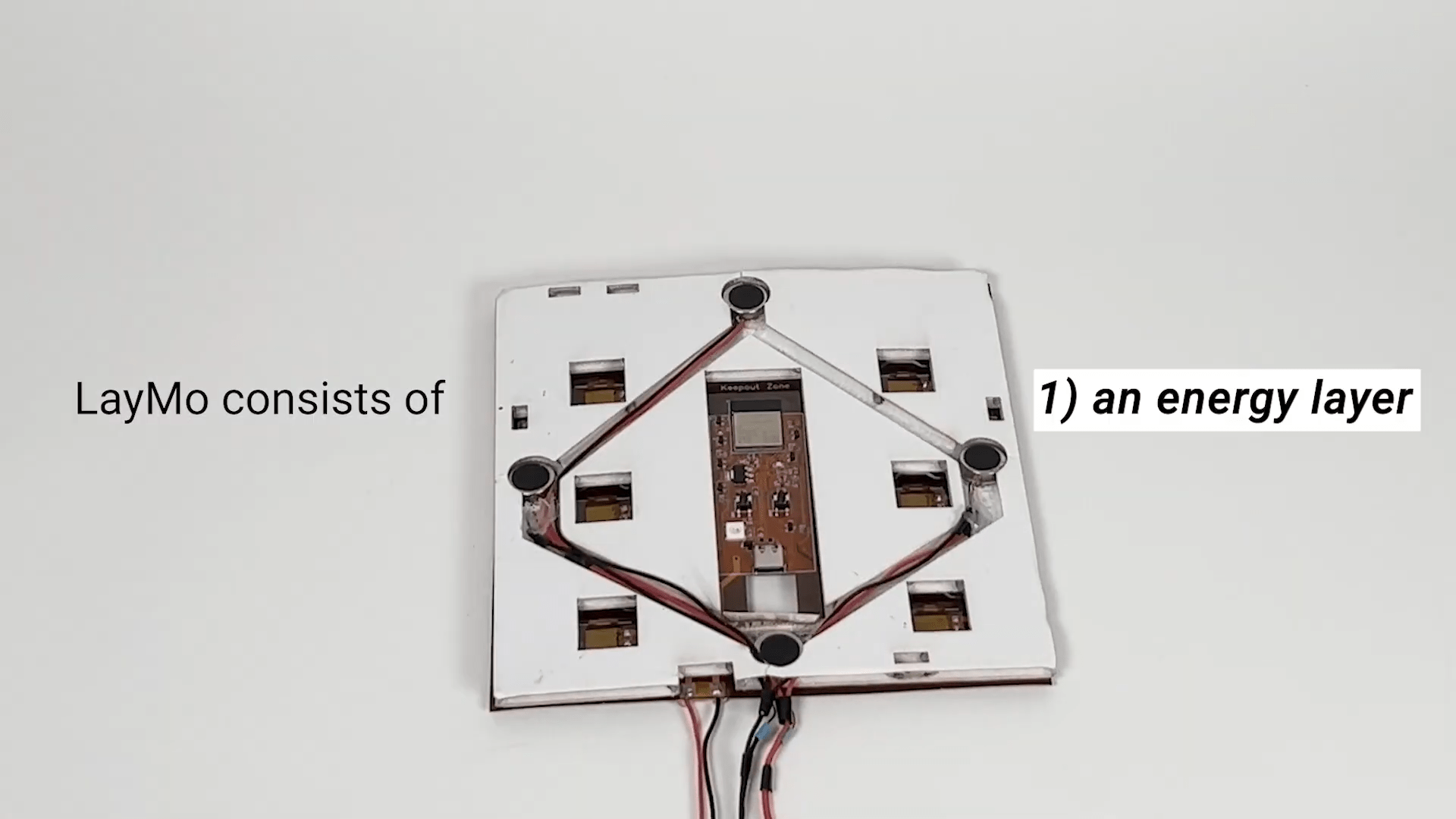

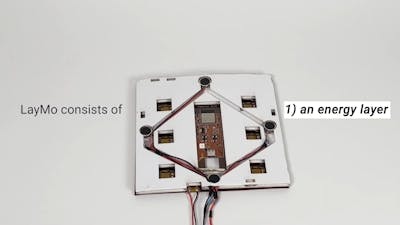

The {hardware} stack (📷: V. Han et al.)
The system, referred to as LayMo (Layered Movement), is designed as a skinny, self-contained locomotion layer that may be connected to the underside of small, on a regular basis objects. As soon as put in, this layer offers the thing restricted mobility, permitting it to maneuver, rotate, or reposition itself throughout a flat floor. What makes LayMo distinctive is that it offers movement with out wheels, rails, or exterior robots — every thing occurs inside just a few millimeters of thickness.
LayMo’s movement depends on two coordinated mechanisms: vibration for power enter and electrically managed steering for directional management. The vibration comes from small linear resonant actuators, just like these utilized in smartphones for haptic suggestions, that shake the thing towards the floor it rests on. By itself, vibration would trigger random motion. However LayMo provides precision by means of a second layer product of flat-foldable compliant constructions.
These constructions are constructed from liquid crystal elastomers (LCEs), an lively materials that contracts when heated. When electrical energy flows by means of embedded movie heaters, the LCEs warmth up and bend, folding small leg-like constructions outward. These legs create areas of differential friction — low friction in a single route, excessive within the reverse — which determines how the thing strikes. By selectively activating totally different units of legs, the system can steer ahead, backward, sideways, or rotate in place.
A leg actuator contracting (📷: V. Han et al.)
Every LayMo module features a microcontroller, heater, thermistor, and vibration motor, all built-in into a versatile printed circuit board. This modular design permits for scalability; a number of modules will be tiled collectively to maneuver bigger or heavier objects, as much as about 1.2 kilograms within the group’s exams.
By combining these layers, it’s potential to create an object that may bodily collaborate with its consumer. Think about a ruler that slides throughout a desk to reveal a measurement, or a paint palette that strikes nearer when the artist reaches for it. The group envisions producers ultimately embedding such movement layers instantly into merchandise throughout meeting, creating a brand new class of dynamic bodily interfaces. Whether or not or not customers will probably be enthusiastic about all of these items scurrying round their properties stays to be seen.
