It’s arduous to beat the human hand relating to sensing and interacting with the bodily world. So arduous, in reality, that the most effective synthetic techniques dreamed up by at this time’s high robotics engineers don’t even come shut. The complicated community of sensory receptors within the pores and skin that, in live performance with nerve fibers and the mind, acknowledge strain, vibration, texture, temperature, and ache nonetheless maintain many mysteries that now we have not but uncovered, not to mention reproduced.
That leaves roboticists in a tricky spot. With out the unimaginable sensitivity of human contact, it’s all however inconceivable to design a robotic hand that may work together with the bodily world in a human-like manner. Attending to that subsequent degree of efficiency will undoubtedly take not less than just a few vital technological breakthroughs. However within the meantime, a bunch of engineers on the College of Southern California has launched a stopgap measure that may assist us to design machines which might be not less than nearer to the final word purpose.
A collection of the accessible sensors (đź“·: H. Zhou et al.)

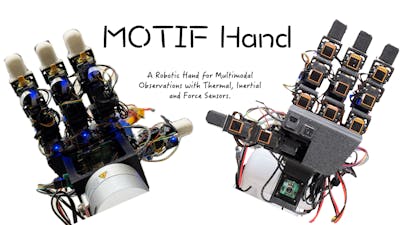

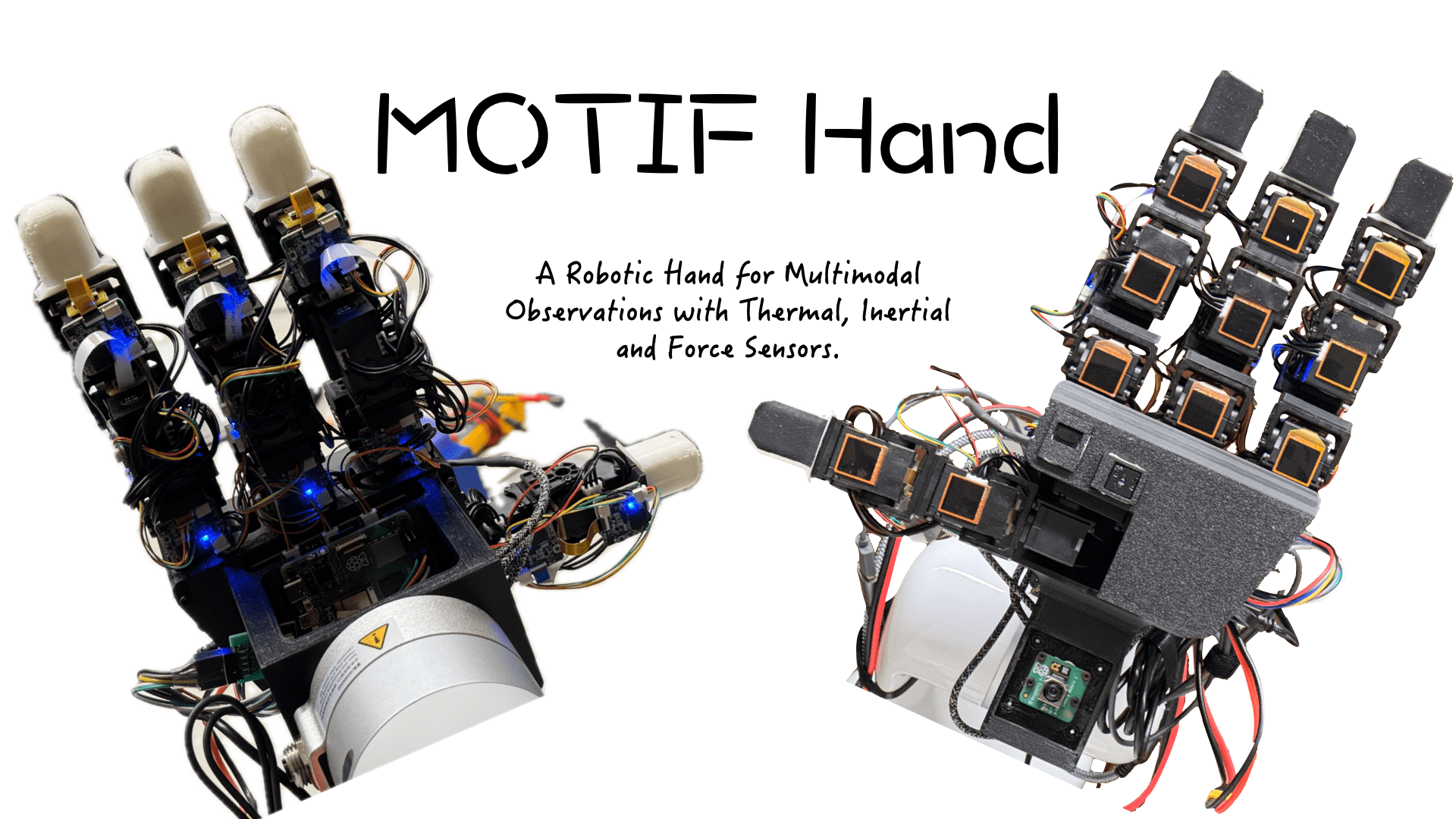

The group has designed a robotic hand named MOTIF (Multimodal Commentary with Thermal, Inertial, and Pressure sensors) that takes one thing of a kitchen sink strategy to the issue. It could be the case that none of our sensing techniques are as delicate as these discovered within the human hand, but when we throw all kinds of sensors on the downside, we’d have the ability to sew the info collectively to supply a clearer image than we had earlier than. To check out that speculation, the researchers included every thing from depth sensors, thermal cameras, inertial measurement models, and a digicam into MOTIF.
MOTIF is constructed on high of the LEAP hand, a well known open-source dexterous robotic hand platform. The group then loaded this current hand down with sensors. It consists of skinny movie tactile sensors masking every finger, permitting for dense, high-resolution tactile information assortment. These sensors present a 6×6 sampling grid with 2.5 mm decision, enabling the hand to detect drive magnitude with a set off threshold of simply 20 grams.
To seize spatial information, the hand features a time-of-flight depth sensor embedded within the palm for real-time distance measurement. A FLIR Lepton 3.5 thermal digicam offers infrared temperature information, initially collected at a decision of 160×120 pixels that’s scaled as much as 1280Ă—960 by way of interpolation. This permits the hand to detect warmth patterns throughout surfaces and information its grasp accordingly.
On this experiment, MOTIF realized to choose up cans like a human (đź“·: H. Zhou et al.)
Every of the hand’s finger joints is supplied with a movement monitoring unit combining a 3-axis gyroscope and 3-axis accelerometer, with a 3-axis magnetoresistive sensor added for nine-axis orientation monitoring. These sensors are shielded from electromagnetic interference utilizing conductive tape, guaranteeing clear alerts even within the proximity of servomotors.
On the wrist, a Raspberry Pi Digicam Module 2 captures high-resolution RGB visible information at 30 frames per second, giving the hand environmental context and object recognition capabilities. A Raspberry Pi 5 serves as the first information processor for your entire system, dealing with the combination of the entire sensory inputs.
The MOTIF hand is open supply and designed to be reproducible for beneath $4,000. With continued growth, together with the potential addition of high-resolution fingertip sensors just like the Digit 360, the MOTIF hand might quickly function an essential platform for advancing robotic manipulation in each analysis and real-world functions.
