Electronics designer Marcin Saj has created a self-described “uncommon clock” — utilizing a modular array of electromechanical flip-discs for a pleasingly analog expertise on every minute’s tick.
“I’ve constructed a clock that tells time in an unconventional manner — partially encoded, but nonetheless straightforward to learn at a look,” Saj claims of his newest creation. “Its clear, rectangular form offers it a exact, engineered look, whereas the rhythmic sound of the flipping discs provides a quiet, mechanical appeal. Designed for workspaces, labs, studios, or any setting the place sensible design and technical aesthetics are valued, this clock bridges the hole between utility and visible attraction.”

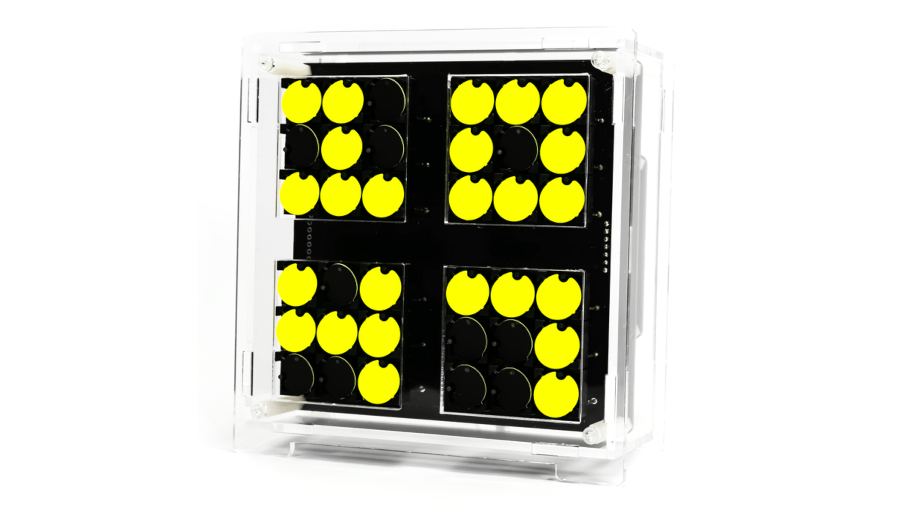

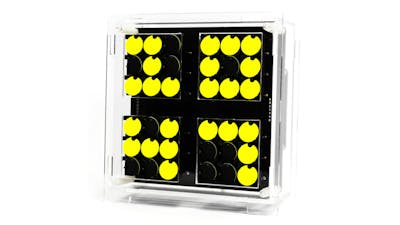

Flip-disc shows work precisely as their title suggests: moderately than having glowing LEDs or LCD segments, as with most fashionable digital clock shows, a flip-disc show triggers the mechanical flipping of a bodily disc — one aspect sometimes black and the opposite a shiny contrasting shade. Within the case of Saj’s undertaking, there’s multiple show: the clock is made up of a quartet of three×3 flip-dot matrices.
A 3×3 matrix is, after all, not sufficient to show numbers the standard manner — which is the place the “partial encoding” is available in. Every quarter of the clock represents a digit: two for the hours, two for the minutes. The dots are flipped in a sample mimicking that of a conventional Arabic numeral, albeit at a really low decision: numbers like “4” and “0” are comparatively recognizable, however others like “8” — represented by all discs flipped bar a single notch within the upper-left nook — will take somewhat getting used to.
This is not Saj’s first flip-disc show design, however it might be essentially the most accessible. “This time I made a decision to make it a totally purposeful clock, assembled and able to use, simply want to attach the ability provide,” the designer explains. “The center of the clock is the [Microchip] ATmega328 microcontroller (default 16MHz exterior crystal). The clock code was written within the Arduino IDE and makes use of MiniCore.”
As together with his different designs, Saj is funding manufacturing of the brand new clock on Kickstarter with bodily rewards beginning at €129 (round $144) together with fully-assembled clock in a laser-cut acrylic case; {hardware} is predicted to ship in August to achieve backers in September, Saj says.
