Electrical engineer Marcelo Gd has demonstrated learn how to flip upcycled elements and low-cost elements right into a useful prototyping board for vacuum tube tasks.
“For a very long time, I needed to experiment and construct amplifiers and different audio-related gadgets based mostly on electron tubes,” Gd explains. “To attain this aim, I wanted an appropriate software for testing and experimentation. That is why I made this easy gadget, the supplies and elements I used are largely recycled or cheap. The principle aim of this venture is to be an instrument for growing and testing gadgets with valves, but it surely can be used as a studying software.”
As anybody who has labored with vacuum tubes earlier than will attest, they are often finicky beasts — there is a motive, in any case, that the invention of the transistor noticed their virtually full retirement from sensible use. There are these, nevertheless, who swear by them nonetheless, notably within the audio discipline the place valve-based amplifiers are prized for his or her “hotter” tones in comparison with solid-state equivalents.

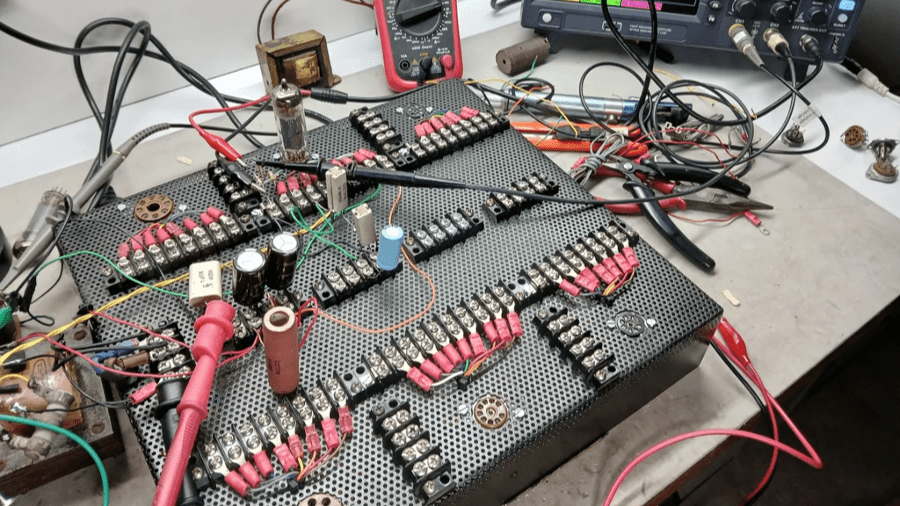

For anybody used to sticking elements in a breadboard for prototyping, working with vacuum tubes will be daunting — which is the place Gd’s creation is available in, successfully working as a breadboard devoted to hoover tubes. The chassis is produced from metallic salvaged from a discarded PC case, different elements from a scrapped CNC machine, and nonetheless extra from and PC energy provide unit. The tube sockets, at the least, are new-old inventory — you do not need to be making an attempt to diagnose defective valves when your socket is marginal, in any case.
The housing is produced from metallic taken from a discarded PC’s side-panel. (📹: Marcelo Gd)
To show the idea, Gd has already used the rig to construct a “very fundamental” Class-A audio amplifier. “The distribution of the blocks on the chassis permits a fast meeting and modification of the association of the elements,” he notes. It is also been put to work as a testbed for emission, transconductance, and curve-tracing exams.
The venture is documented in full in Gd’s Instructables put up.
