Regardless of the plain similarities, cameras usually are not eyes. As soon as you actually take in that truth, you can begin arising with imaginative images strategies that don’t comply with the identical visible guidelines as personal our physiology. Mild portray is a superb instance, as it’s distinct from persistence of imaginative and prescient. You’ll be able to depart a digital camera’s shutter open as alongside as you wish to obtain a desired impact. Besides, velocity is useful. That’s why Fablab Kerala Fab Academy college students turned to CoreXY kinematics when developing this CNC mild portray machine referred to as Velichapaad.
Mild portray is a long-exposure images approach through which a light-weight strikes by means of a darkish scene, leaving “trails” that may kind shapes. You’ll be able to obtain that by transferring the sunshine by hand, however attaching the sunshine to a CNC movement system permits for exact management. When accomplished effectively, CNC mild work are extraordinarily crisp. If you wish to incorporate that with a human topic (or something that isn’t nonetheless), you’re going to have to maneuver the sunshine very quick to maintain the publicity time down and keep away from blurring of the particular person. CoreXY kinematics have gained a status within the 3D printing group for being very quick, which is ideal for this situation.
A number of college students labored on this undertaking, every with their very own specializations in numerous disciplines. Some college students, as an example, labored on the electronics, whereas others labored on the mechanical design. That permit them handle this formidable undertaking in an affordable period of time.
Mechanically, that is just like the CoreXY gantry of a 3D printer turned on its aspect, so the XY aircraft is vertical. Actually, it’s a CoreXZ design with an general dimension of 1500mm extensive by 960mm tall. As an alternative of an extruder and sizzling finish, the carriage strikes a puck with a customized PCB containing seven WS2812B individually addressable RGB LEDs and an ESP32-C6 for management (wirelessly by way of ESP NOW). That distinctive puck can “paint” in any colour and might range the stroke width, too.
A NeoĎ€ Wi-fi CNC Controller handles the first movement system management. It’s based mostly on a NodeMCU ESP32 growth board and has DRV8825 stepper drivers. There are two NEMA 17 stepper motors powered at 12V.

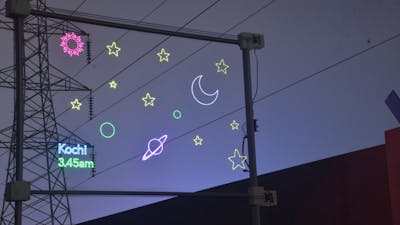

The outcomes are fairly unimaginable. The strains are very crisp and the quick velocity makes it doable to color round folks with out them blurring.
