Satellite tv for pc communications specialist Iridium has introduced a quick-start improvement equipment for its Certus 9704 Iridium Messaging Transport (IMT) module — teaming up with engineering agency Gadget Options Inc. to ship a compact board boasting help within the Arduino IDE.
“The Iridium Certus 9704 Developer Equipment is a extremely environment friendly end-to-end analysis software for the Iridium Certus 9704 module and its companion service, Iridium Messaging Transport (IMT),” the corporate says of its newest ground-side launch. “Easy but versatile, the equipment bundles {hardware}, software program, and connectivity elements to create a streamlined discovery expertise that works for tech-savvy and non-technical customers alike. Whether or not you’re simply attending to know the Iridium community or on the lookout for new improvement alternatives as a seasoned Iridium accomplice, the Developer Equipment permits you to check Iridium IoT [Internet of Things] capabilities shortly, precisely, and independently.”

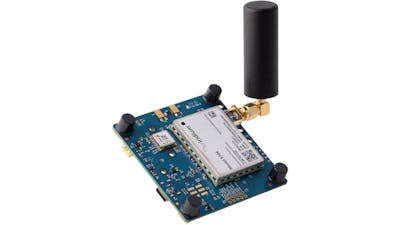

Fancy speaking to satellites? Iridium’s Certus 9704 Growth Equipment permits you to just do that together with your subsequent IoT undertaking. (📷: Iridium)
The equipment, dropped at our consideration by Arduino and designed in partnership with Gadget Options, is constructed round Iridium’s Certus 9704 Module, a surface-mount system designed for connecting gadgets to the Iridium Messaging Transport service. This offers the flexibility to hold messages as much as 100kB in measurement over Iridium’s globe-spanning satellite tv for pc constellations, from anyplace on the earth — reaching areas the place Wi-Fi, Bluetooth, and even long-range methods like LoRa cannot cowl. Like the favored MQTT, IMT relies on a publish-subscribe mannequin with “Matters” to categorize message sorts.
The equipment takes a pre-provisioned module and installs it onto a compact “Launch Pad” improvement board alongside a Microchip ATSAMD21J18A microcontroller, with a single Arm Cortex-M0+ core operating at as much as 48MHz, 32kB of static RAM (SRAM), and 256kB of program flash. The board additionally features a u-blox MAX-M10S World Navigation Satellite tv for pc System (GNSS) receiver and pin headers for I2C, SPI, and UART buses plus 22 general-purpose enter/output (GPIO) pins, eight of which may act as analog inputs, considered one of which can also be an analog output, and 12 of which help pulse-width modulation (PWM). The board additionally features a user-addressable push-button change, a battery administration chip for the bundled 3Ah lithium-ion battery, and a piezoelectric buzzer.
The equipment is designed solely for Iridium’s Messaging Transport Resolution (IMT) IoT communications platform. (📷: Iridium)
A significant characteristic of the event equipment is its promise of Arduino compatibility: Iridium has printed a board definition bundle that provides help for the Certus 9074 into the Arduino IDE, plus a library that features a transceiver interface and instance sketches demonstrating its use. Supply code for that is printed on GitLab below the permissive MIT license.
Extra info on the equipment, which is now accessible to order at $499 with a restrict of 1 per buyer and ongoing charges required for IMT entry, is on the market on the Iridium web site.
