The various capabilities of a wearable digital machine are of little use until it may be made… effectively, wearable. Monitoring well being metrics can save lives, and preserving watch over bodily efficiency has the potential to enhance athletic ability. However none of that is doable if the wearable units that accumulate this important info are left on an individual’s nightstand.
An important elements in making a wearable machine usable are its measurement and conformability to the physique. A tool that’s small and versatile might be transparently built-in into a person’s day by day routine. However a big, cumbersome machine is more likely to be seen as an annoyance; and an annoying wearable will solely make it simply so lengthy earlier than it will get tossed apart.
Cumbersome wearables could quickly give approach to sensible and comfy units, because of the work of a gaggle of researchers at Penn State College. They’ve developed a brand new fabrication approach that may produce small, versatile wearable electronics. These units can mildew themselves to every particular person, and in contrast to previous approaches, they are often manufactured at scale.
The important thing to this method lies in combining liquid steel circuitry with a stunning materials: the identical heat-shrinkable polymer sheets utilized in kids’s Shrinky Dinks toys. By printing circuits onto these cheap sheets after which shrinking them with managed heating, the group can rework flat digital patterns into compact, three-dimensional types that contour to irregular surfaces, together with the human physique.
Conventional strategies for producing versatile or 3D electronics have struggled with both complexity or value. Strategies like 3D printing immediately onto surfaces require specialised tools and are troublesome to scale, whereas approaches utilizing stretchable supplies usually lack structural management or can’t simply be personalized.
The brand new method solves these challenges by means of a collection of intelligent materials improvements. As an alternative of inflexible metals like gold or silver, the researchers turned to a gallium–indium liquid steel alloy recognized for its conductivity and fluidity. Nevertheless, pure liquid steel droplets don’t naturally adhere effectively to plastic surfaces and might break aside throughout shrinking. To handle this, the group used ultrasonication and a detergent-like chemical to create a modified, partially solidified liquid steel composite that sticks securely to the polymer substrate. A plasma therapy of the plastic sheet additional improved bonding.
As soon as the circuit is printed and the shrinking begins, the fabric folds and compresses into its closing 3D configuration. This not solely enhances mechanical sturdiness however also can enhance electrical efficiency. The researchers demonstrated compact antennas that self-adjust to family objects, enabling a low-cost path for retrofitting atypical objects into sensible residence units.

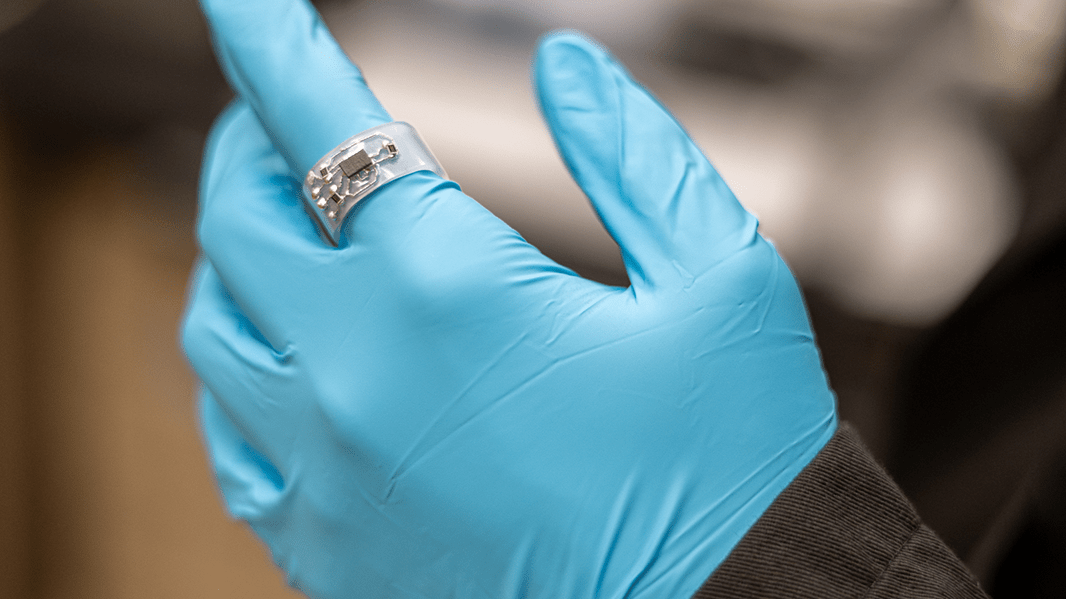

As a proof of idea, the group additionally constructed a wearable ring embedded with a miniaturized accelerometer able to transmitting gesture information over Wi-Fi. Early exams present promise for functions similar to movement monitoring or signal language interpretation. If this expertise can show itself in real-world functions, it might change wearables ceaselessly.This sensible ring adapts to the form of the wearer’s finger (📷: Courtney Robinson / Penn State)
The shrinking substrate (📷: Courtney Robinson / Penn State)
The fabrication course of (📷: Y. Yuan et al.)
