Pseudonymous maker “EmbarrassedOctopus,” hereafter merely “Octopus,” has constructed an ePaper show with a distinction: it makes use of an on-board radio, related to a Raspberry Pi Zero 2 W, to trace close by ships and show each their dimension and their place.
“I made this mission to point out information about ships passing by on the river. From dwelling we are able to simply get a slight glimpse between the buildings and it made me interested in what these vessels are and the place they have been headed,” Octopus explains. “There are 3 screens: geofence, desk, and map. Map will present all vessels which have been heard from up to now 5 minutes. Desk reveals the latest 20 vessels which have been seen, and geofence is the latest vessel to enter a person outlined space which I’ve set as much as be proper the place we are able to see from the window.”

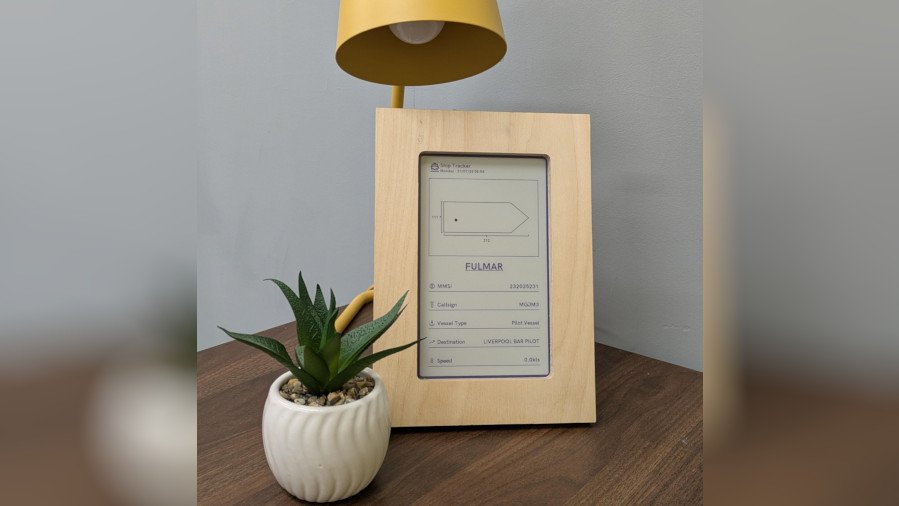

This sensible show makes use of a Raspberry PI Zero 2 W and a VHF-capable radio to trace close by ships. (📷: EmbarrassedOctopus)
The tracker works by selecting up the sign from every vessel’s on-board Computerized Identification System (AIS) transmitter. “The ships broadcast details about their standing and place on two radio channels, round 161 and 162MHz,” Octopus explains. “These broadcasts are supposed for different ships to select up however anybody with a receiver tuned appropriately can hear in.”
These alerts are acquired by a Wegmatt Daisy Mini radio, related together with the Pimoroni Inky Impression 7.3 ePaper show to a Raspberry Pi Zero 2 W single-board pc. “In my mission I am utilizing the Daisy to do the receiving and decoding of the radio alerts despatched out by the ships as they move by on the river, then I wrote some code to show the AVIDM output from the Daisy into structured information I can use for the display data.”
The {hardware} is held in a picket body utilizing a 3D-printed framework. (📷: EmbarrassedOctopus)
The result’s the flexibility to show each the places of and — because the message contains each the situation of every ship’s GPS receiver and the space from it to the strict, bow, port, and starboard sides of the vessel — the tough dimension of the ship, although not a real define. “I might deliberate to point out footage of the particular ship,” Octopus explains, “however there was no moderately priced API I may discover to do it with. Ultimately I favor the blueprint as a result of it means there isn’t any web required for all of it to work.”
Extra data is obtainable in Octopus’s Reddit publish; “I am planning to make some modifications to it so it helps the brand new [Pimoroni] Inky display and has a setup/config web page you’ll be able to entry by way of captive portal,” the maker notes, “then make it open supply as soon as that is executed.”
